1、SystemServer

源码路径：/frameworks/base/services/Java/com/android/server/SystemServer.java

private void startOtherServices(@NonNull TimingsTraceAndSlog t) {
    if (mFactoryTestMode == FactoryTest.FACTORY_TEST_LOW_LEVEL) {
        Slog.i(TAG, "No Bluetooth Service (factory test)");
    } else if    (!context.getPackageManager().hasSystemFeature(PackageManager.FEATURE_BLUETOOTH)) {
        Slog.i(TAG, "No Bluetooth Service (Bluetooth Hardware Not Present)");
    } else {
        t.traceBegin("StartBluetoothService");
        mSystemServiceManager.startService(BluetoothService.class);
        t.traceEnd();
    }
}

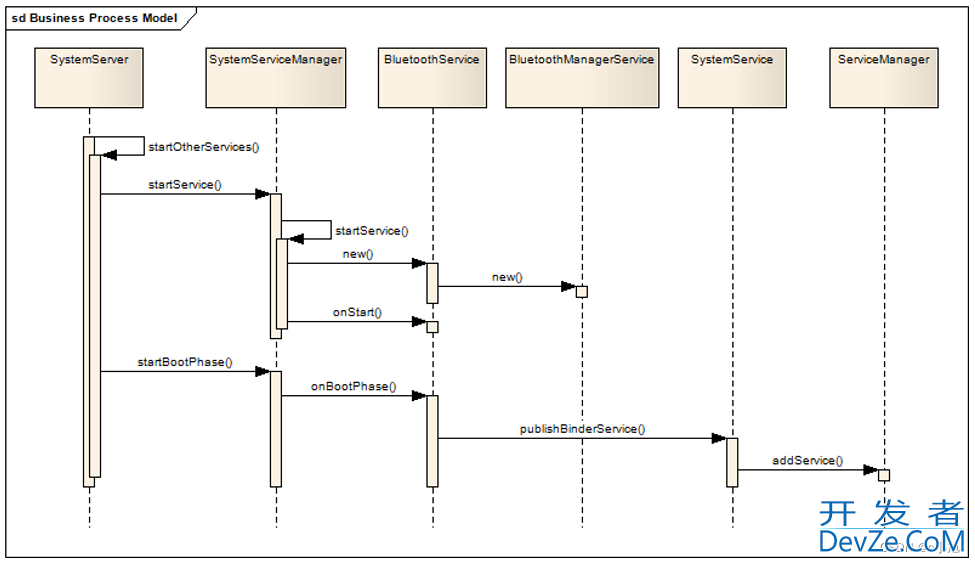

SystemServer 在启动其他服务的方法里，启动了 BluetoothService。

2、BluetoothService

class BluetoothService extends SystemService {
    private BluetoothManagerService mBluetoothManagerService;
    public BluetoothService(Context context) {
        super(context);
        //创建BluetoothManagerService的实例
        mBluetoothManagerService = new BluetoothManagerService(context);
    }
    ......
    @Override
    public void onBootPhase(int phase) {
        if (phase == SystemService.PHASE_SYSTEM_SERVICES_READY) {
            //将BluetoothManagerService实例发布到系统中，这样就可以Context根据BT的service名去获取它的Binder代理操作API了
            publishBinderService(BluetoothAdapter.BLUETOOTH_MANAGER_SERVICE,
                    mBluetoothManagerService);
        } else if (phase == SystemService.PHASE_ACTIVITY_MANAGER_READY) {
            //此时系统应该启动到一个比较晚的阶段了，可以使用AMS去Bind需要的Service了
            mBluetoothManagerService.handleOnBootPhase();
        }
    }
    ......
}

可以看到，真正获取的服务是BluetoothManagerService 而非 BluetoothService。可以通过 ServiceManager.getService(BLUETOOTH_MANAGER _SERVICE) 获取蓝牙服务。

onBootPhase(int)：这个函数应该是 systemserver 在启动的时候会多次调用，参数代表当前启动进行到了什么阶段，用户定义的 service 针对各个阶段需要做怎样的处理或者是不做任何处理。

3、BluetoothManagerService

    BluetoothManagerService(Context context) {
        //创建内部处理msg的handler
        mHandler = new BluetoothHandler(IoThread.get().getLooper());
        mContext = context;
        ......
        //false表示此次enable需要触发auto connect device和保存状态,BluetoothAdapter::enableNoAutoConnect()可以改变此状态
        mQuietEnableExternal = false;
        mEnableExternal = false;
        ......
        IntentFilter filter = new IntentFilter();
        //监听App通过接口修改BT 名称的广播
        filter.addAction(BluetoothAdapter.ACTION_LOCAL_NAME_CHANGED);
        //监听bt地址改变的广播
        filter.addAction(BluetoothAdapter.ACTION_BLUETOOTH_ADDRESS_CHANGED);
        //监听当前设置需要restore回上一次设置的广播,此时需要重新保存name和addr为上一次的信息
        filter.addAction(Intent.ACTION_SETTING_RESTORED);
        filter.setPriority(IntentFilter.SYSTEM_HIGH_PRIORITY);
        mContext.registerReceiver(mReceiver, filter);
        //从数据库中加载本机Bt的local name和address
        loadStoredNameAndAddress();
        //查看上一次关机时,BT是否为enable状态;如果是,这次开机也需要enable BT
        if (isBluetoothPersistedStateOn()) {
            if (DBG) {
                Slog.d(TAG, "Startup: Bluetooth persisted state is ON.");
            }
            mEnableExternal = true;//表明开机过程中需要enable BT
        }
    }

在服务启动到一定阶段就会回调到 SystemService 的 onBootPhase(int) 方法，即 2 中的该方法，然后调用 BMS 中的 handleOnBootPhase() 方法。

    public void handleOnBootPhase() {
        ......
        final boolean isSafeMode = mContext.getPackageManager().isSafeMode();
        if (mEnableExternal && isBluetoothPersistedStateOnBluetooth() && && !isSafeMode) {
            sendEnableMsg(mQuietEnableExternal/*默认false,表示此次enable需要自动连接device/保存enable状态*/,
                    BluetoothProtoEnums.ENABLE_DISABLE_REASON_SYSTEM_BOOT,
                    mContext.getPackageName());
        } else if (!isNameAndAddressSet()) {
            Message getMsg = mHandler.obtainMessage(MESSAGE_GET_NAME_AND_ADDRESS);
            mHandler.sendMessage(getMsg);
        }
        ......
    }

handleOnBootPhase()的内容比较单一，根据一些flag判断是否需要enable BT；而enable蓝牙这里是通过触发send msg实现。

private void sendEnableMsg(boolean quietMode, int reason, String packageName) {
    //发送MESSAGE_ENABLE msg
    mHandler.sendMessage开发者_JAVA教程(mHandler.obtainMessage(MESSAGE_ENABLE, quietMode ? 1 : 0, 0));
    addActiveLog(reason, packageName, true);
    mLastEnabledTime = SystemClock.elapsedRealtime();
}
case MESSAGE_ENABLE:
    int quietEnable = msg.arg1;
    mQuietEnable = (quietEnable == 1);//此时为false
    //mBluetooth是后面绑定Bt apk中AdapterService时拿到的Binder代理对象;用以把操作bypass到BT核心框架中
    if (mBluetooth == null) {
        hanpythondleEnable(mQuietEnable);
    } else {//如果mBluetooth不是null,说明之前已经启动过了;此时是Restart flow,以MESSAGE_RESTART_BLUETOOTH_SERVICE触发
        mWaitForEnableRetry = 0;
        Message enableDelayedMsg = mHandler.obtainMessage(MESSAGE_HANDLE_ENABLE_DELAYED);
        mHandler.sendMessageDelayed(enableDelayedMsg, ENABLE_DISABLE_DELAY_MS);
    }
    break;

handleEnable() 去 Bind AdapterService 拿到它的Binder句柄。同样的在调用 BluetoothManagerService 中的 enable()、disable()等方法时，也是调到 handleEnable() 方法，从而最终调用 AdapterService 中的 enable()、disable() 方法。

private void handleEnable(boolean quietMode) {
    mQuietEnable = quietMode;
    try {
        mBluetoothLock.writeLock().lock();
        if ((mBluetooth == null) && (!mBinding)) {
            //Start bind timeout and bind
            Message timeoutMsg = mHandler.obtainMessage(MESSAGE_TIMEOUT_BIND);
            mHandler.sendMessageDelayed(timeoutMsg, TIMEOUT_BIND_MS);
            Intent i = new Intent(IBluetooth.class.getName());
            if (!doBind(i, mConnection, Context.BIND_AUTO_CREATE | Context.BIND_IMPORTANT, UserHandle.CURRENT)) {
                mHandler.removeMessages(MESSAGE_TIMEOUT_BIND);
            } else {
                mBinding = true;
            }
        }
    } finally {
        mBluetoothLock.writeLock().unlock();
    }
}

然后我们看一下 doBind() 方javascript法中的 mConnection 参数：

private BluetoothServiceConnection mConnection = new BluetoothServiceConnection();
private class BluetoothServiceConnection implements ServiceConnection {
    public void onServiceConnected(ComponentName componentName, IBinder service) {
        String name = componentName.getClassName();
        Message msg = mHandler.obtainMessage(MESSAGE_BLUETOOTH_SERVICE_CONNECTED);
        if (name.equals("com.android.bluetooth.btservice.AdapterService")) {
            msg.arg1 = SERVICE_IBLUETOOTH;
        } else if (name.equals("com.android.bluetooth.gatt.GattService")) {
             msg.arg1 = SERVICE_IBLUETOOTHGATT;
        } else {
            Slog.e(TAG, "Unknown service connected: " + name);
            return;
        }
        msg.obj = service;
        mHandler.sendMessage(msg);
    }
    public void onServiceDisconnected(ComponentName componentName) {
        // Called if we unexpectedly disconnect.
        String name = componentName.getClassName();
        Message msg = mHandler.obtainMessage(MESSAGE_BLUETOOTH_SERVICE_DISCONNECTED);
        if (name.equals("com.android.bluetooth.btservice.AdapterService")) {
            msg.arg1 = SERVICE_IBLUETOOTH;
        } else if (name.equals("com.android.bluetooth.gatt.GattService")) {
            msg.arg1 = SERVICE_IBLUETOOTHGATT;
        } else {
            Slog.e(TAG, "Unknown service disconnected: " + name);
            return;
        }
        mHandler.sendMessage(msg);
    }
}

拿到 AdapterService 服务后，发送MESSAGE_BLUETOOTH_SERVICE_CONNECTED消息且 arg1 = SERVICE_IBLUETOOTH。

case MESSAGE_BLUETOOTH_SERVICE_CONNECTED: {
    IBinder service = (IBinder) msg.obj;
    try {
        mBluetoothLock.writeLock().lock();
        mBinding = false;
        mBluetoothBinder = service;
        mBluetooth = IBluetooth.Stub.asInterface(Binder.allowblocking(service));
        //Register callback object
        try {
            mBluetooth.registerCallback(mBluetoothCallback, mContext.getAttributionSource());
        } catch (RemoteException re) {
            Slog.e(TAG, "Unable to register BluetoothCallback", re);
        }
        //Inform BluetoothAdapter instances that service is up
        sendBluetoothServiceUpCallback();
        //Do enable request
        try {
            if (!mBluetooth.enable(mQuietEnable, mContext.getAttributionSource())) {
                Slog.e(TAG, "IBluetooth.enable() returned false");
            }
        } catch (RemoteException e) {
            Slog.e(TAG, "Unable to call enable()", e);
        }
    } finally {
         mBluetoothLock.writeLock().unlophpck();
    }
    if (!mEnable) {
        waitForState(Set.of(BluetoothAdapter.STATE_ON));
        handleDisable();
        waitForState(Set.of(BluetoothAdapter.STATE_OFF,
        BluetoothAdapter.STATE_TURNING_ON,
        BluetoothAdapter.STATE_TURNING_OFF,
        BluetoothAdapter.STATE_BLE_TURNING_ON,
        BluetoothAdapter.STATE_BLE_ON,
        BluetoothAdapter.STATE_BLE_TURNING_OFF));
    }
}

主要操作：

1、拿到 bind 服务的 onBinder() 句柄，并转成 IBluetooth 类型

2、通过 IBluetooth 类型的 obj，调用 enable() 接口，将 flow 转到 AdapterServicepython 中，做一些初始化、并向 stack 下 enable 蓝牙的 cmd

至此，enable 蓝牙的 flow 就从 BluetoothManagerService 转到 AdapterService 中了；实际上，通过 BluetoothAdapter 下http://www.devze.com来的大部分 API 调用最终都是调用到 AdapterService，再通过它下cmd 给 stack。

两个常见到的flag：

mEnable：用来标记系统运行时，蓝牙状态的变化，它有些时候跟 mEnableExternal 值一致。但如果蓝牙的状态是因为某些原因，如 stack 崩溃，导致蓝牙需要重启，重新启动时，需要靠这个 flag 来标记这种 case 的 enable/disable 状态。

mEnableExternal：它主要是记录通过用户手动操作导致的BT使能状态，如通过蓝牙功能按钮来 enable/disable 蓝牙。
