使用Java实现三种等级的扫雷游戏(完整版)

目录

• 一、效果展示
• 初级难度
• 中级难度
• 高级难度
• 测试界面
• 二、项目介绍
• 项目背景
• 功能分析
• 三、代码展示
• 图形界面设计（gui包）
• 用户操作设计（data包）
• 游戏视图设计（view包）
• 四、代码测试

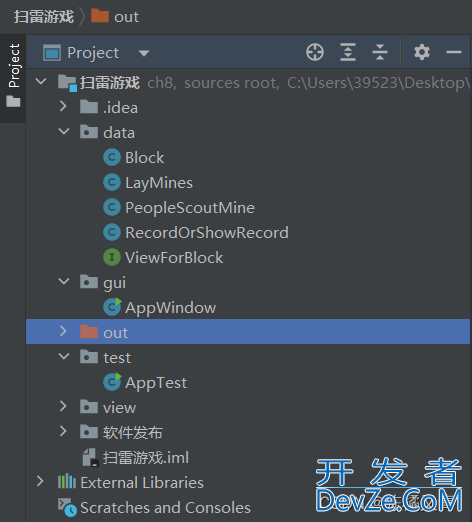

• 五、项目结构
• 六、设计总结
• 总结

一、效果展示

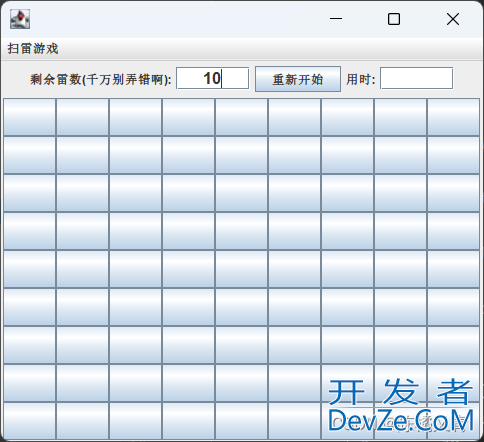

初级难度

中级难度

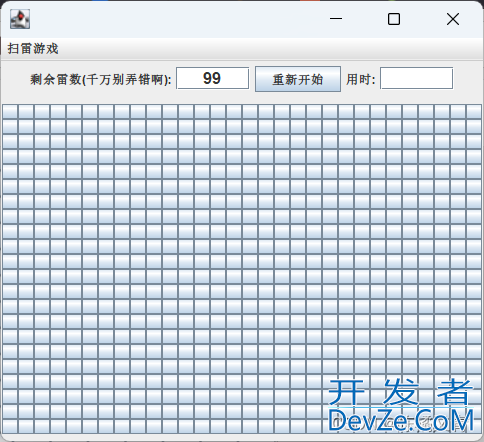

高级难度

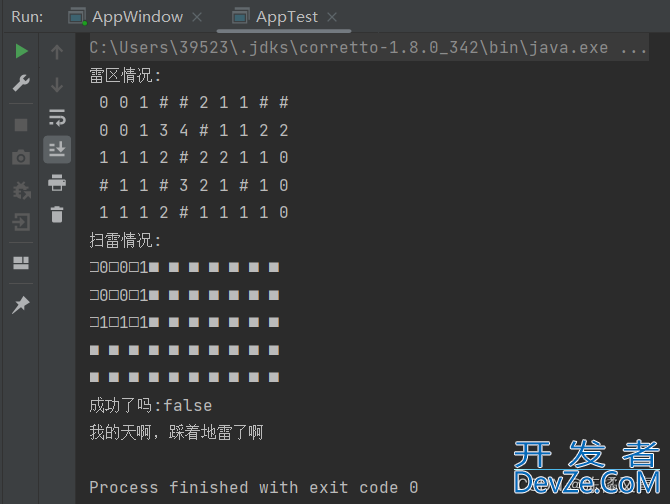

测试界面

二、项目介绍

项目背景

扫雷是一款大众类的益智小游戏。根据点击格子出现的数字找出所有非雷格子，同时避免踩雷，踩到一个雷即全盘皆输。这款游戏有着很长的历史，从扫雷被开发出来到现在进行了无数次的优化，这款游戏通过简单的玩法，加上一个好看的游戏界面，每一处的细节都体现了扫雷的魅力。

功能分析

完成 难度选择，雷随机生成，数字生成，左右键翻开 等功能实现

游戏四种状态： 难度选择、游戏状态、游戏胜利、游戏失败

游戏难度： 初级、中级、高级（不同难度对应不同的雷区大小和雷数量）

游戏核心： 二维数组 的相关操作

其他： 窗口绘制、界面规划、操作计数、重新开始。

三、代码展示

图形界面设计（gui包）

主类：AppWindows类

AppWindow类负责创建游戏的主窗口，该类含有main方法,程序从该类开始执行。

package ch8.gui;
import Java.awt.*;
import javax.swing.*;
import javax.swing.event.*;
import java.awt.event.*;
import ch8.view.MineArea;
import ch8.view.ShowRecord;
public class AppWindow extends JFrame implements MenuListener,ActionListener{
     JMenuBar bar;
     JMenu fileMenu;
     JMenu gradeOne,gradeTwo,gradeThree;//扫雷级别
     JMenuItem gradeOneList,gradeTwoList,gradeThreeList;//初，中，高级英雄榜
     MineArea mineArea=null;                //扫雷区域
     ShowRecord showHeroRecord=null;        //查看英雄榜
     public AppWindow(){
         bar=new JMenuBar();
         fileMenu=new JMenu("扫雷游戏");
         gradeOne=new JMenu("初级");
         gradeTwo=new JMenu("中级");
         gradeThree=new JMenu("高级");
         gradeOneList=new JMenuItem("初级英雄榜");
         gradeTwoList=new JMenuItem("中级英雄榜");
         gradeThreeList=new JMenuItem("高级英雄榜");
         gradeOne.add(gradeOneList);
         gradeTwo.add(gradeTwoList);
         gradeThree.add(gradeThreeList);
         fileMenu.add(gradeOne);
         fileMenu.add(gradeTwo);
         fileMenu.add(gradeThree);
         bar.add(fileMenu);
         setJMenuBar(bar);
         gradeOne.addMenuListener(this);
         gradeTwo.addMenuListener(this);
         gradeThree.addMenuListener(this);
         gradeOneList.addActionListener(this);
         gradeTwoList.addActionListener(this);
         gradeThreeList.addActionListener(this);
         mineArea=new MineArea(9,9,10,gradeOne.getText());//创建初级扫雷区
         add(mineArea,BorderLayout.CENTER);
         showHeroRecord=new ShowRecord();
         setBounds(300,100,500,450);
         setVisible(true);
         setDefaultCloseoperation(JFrame.EXIT_ON_CLOSE);
         validate();
     }
     public void menuSelected(MenuEvent e){
        if(e.getSource()==gradeOne){
              mineArea.initMineArea(9,9,10,gradeOne.getText());
              validate();
        }
        else if(e.getSource()==gradeTwo){
              mineArea.initMineArea(16,16,40,gradeTwo.getText());
              validate();
        }
        else if(e.getSource()==gradeThree){
              mineArea.initMineArea(22,30,99,gradeThree.getText());
              validate();
        }
     }
     public void menuCanceled(MenuEvent e){}
     public void menuDeselected(MenuEvent e){}
     public void actionPerformed(ActionEvent e){
        if(e.getSource()==gradeOneList){
              showHeroRecord.setGrade(gradeOne.getText());
              showHeroRecord.showRecord();
        }
        else if(e.getSource()==gradeTwoList){
              showHeroRecord.setGrade(gradeTwo.getText());
              showHeroRecord.showRecord();
        }
        else if(e.getSource()==gradeThreeList){
              showHeroRecord.setGrade(gradeThree.getText());
              showHeroRecord.showRecordwww.devze.com(php);
        }
    }
    public static void main(String args[]){
        new AppWindow();
    }
}

用户操作设计（data包）

block类

package ch8.data;
import javax.swing.ImageIcon;
public class Block {
     String name;                   //名字,比如"雷"或数字
     int aroundMineNumber;          //如果不是类，此数据是周围雷的数目
     ImageIcon mineIcon;            //雷的图标
     public boolean isMine=false;   //是否是雷
     boolean isMark=false;          //是否被标记
     boolean isOpen=false;          //是否被挖开
     ViewForBlock  blockView;       //方块的视图
     public void setName(String name) {
         this.name=name;
     }
     public void setAroundMineNumber(int n) {
         aroundMineNumber=n;
     }
     public int getAroundMineNumber() {
         return aroundMineNumber;
     }
     public String getName() {
         return name;
     }
     public boolean isMine() {
         return isMine;
     }
     public void setIsMine(boolean b) {
         isMine=b;
     }
     public void setMineIcon(ImageIcon icon){
         mineIcon=icon;
     }
     public ImageIcon getMineicon(){
         return mineIcon;
     }
     public boolean getIsOpen() {
         return isOpen;
     }
     public void setIsOpen(boolean p) {
         isOpen=p;
     }
     public boolean getIsMark() {
         return isMark;
     }
     public void setIsMark(boolean m) {
         isMark=m;
     }
     public void setBlockView(ViewForBlock view){
        blockView = view;
        blockView.acceptBlock(this);
     }
     public ViewForBlock getBlockView(){
        return  blockView ;
     }
}

LayMines类

package ch8.data;
import java.util.LinkedList;
import javax.swing.ImageIcon;
public class LayMines {
     ImageIcon mineIcon;
     public LayMines() {
          mineIcon=new ImageIcon("扫雷图片/mine.gif");
     }
     public void initBlock(Block [][] block){
         for(int i=0;i<block.length;i++) {
             for(int j=0;j<block[i].length;j++)
                block[i][j].setIsMine(false);
         }
     }
     public void layMinesForBlock(Block [][] block,int mineCount){ //在雷区布置mineCount个雷
         initBlock(block);       //先都设置是无雷
         int row=block.length;
         int column=block[0].length;
         LinkedList<Block> list=new LinkedList<Block>();
         for(int i=0;i<row;i++) {
             for(int j=0;j<column;j++)
                list.add(block[i][j]);
         }
         while(mineCount>0){                  //开始布雷
            int size=list.size();             // list返回节点的个数
            int randomIndex=(int)(Math.random()*size);
            Block b=list.get(randomIndex);
            b.setIsMine(true);
            b.setName("雷");
            b.setMineIcon(mineIcon);
            list.remove(randomIndex);        //list删除索引值为randomIndex的节点
            mineCount--;
        }
        for(int i=0;i<row;i++){             //检查布雷情况，标记每个方块周围的雷的数目
           for(int j=0;j<column;j++){
              if(block[i][j].isMine()){
                 block[i][j].setIsOpen(false);
                 block[i][j].setIsMark(false);
              }
              else {
                 int mineNumber=0;
                 for(int k=Math.max(i-1,0);k<=Math.min(i+1,row-1);k++) {
                       for(int t=Math.max(j-1,0);t<=Math.min(j+1,column-1);t++){
                          if(block[k][t].isMine())
                              mineNumber++;
                       }
                 }
                 block[i][j].setIsOpen(false);
                 block[i][j].setIsMark(false);
                 block[i][j].setName(""+mineNumber);
                 block[i][j].setAroundMineNumber(mineNumber); //设置该方块周围的雷数目
              }
           }
        }
    }
}

PeopleScoutMine类

package ch8.data;
import java.util.Stack;
public class PeopleScoutMine {
   public Block [][] block;    //雷区的全部方块
   Stack<Block>  notMineBlock; //存放一个方块周围区域内不是雷的方块
   int m,n ;                   //方块的索引下标
   int row,colum;              //雷区的行和列
   int mineCount;              //雷的数目
   public PeopleScoutMine(){
       notMineBlock = new Stack<Block>();
   }
   public void setBlock(Block [][] block,int mineCount){
       this.block = block;
       this.mineCount =  mineCount;
       row = block.length;
       colum = block[0].length;
   }
   public Stack<Block> getNoMineAroundBlock(Block bk){//得到方块bk附近区域不是雷的方块
       notMineBlock.clear();
       for(int i=0;i<row;i++) {   //寻找bk在雷区block中的位置索引
             for(int j=0;j<colum;j++) {
               if(bk == block[i][j]){
                  m=i;
                  n=j;
                  break;
               }
             }
        }
        if(!bk.isMine()) {     //方块不是雷
            show(m,n);        //见后面的递归方法
        }
        return notMineBlock;
   }
   public void show(int m,int n) {
      if(block[m][n].getAroundMineNumber()>0&&block[m][n].getIsOpen()==false){
          block[m][n].setIsOpen(true);
          notMineBlock.push(block[m][n]); //将不是雷的方块压栈
          return;
      }
      else if(block[m][n].getAroundMineNumber()==0&&block[m][n].getIsOpen()==false){
          block[m][n].setIsOpen(true);
          notMineBlock.push(block[m][n]); //将不是雷的方块压栈
          for(int k=Math.max(m-1,0);k<=Math.min(m+1,row-1);k++) {
             for(int t=Math.max(n-1,0);t<=Math.min(n+1,colum-1);t++)
                 show(k,t);
          }
      }
   }
   publicjs boolean verifyWin(){
       boolean isOK = false;
       int number=0;
       for(int i=0;i<row;i++) {
           for(int j=0;j<colum;j++) {
              if(block[i][j].getIsOpen()==false)
                 number++;
           }
       }
       if(number==mineCount){
           isOK =true;
       }
       return isOK;
   }
}

RecordOrShowRecord类

package ch8.data;
import java.sql.*;
public class RecordOrShowRecord{
   Connection con;
   String tableName ;
   int heroNumber   = 3;   //英雄榜显示的最多英雄数目
   public  RecordOrShowRecord(){
      try{Class.forName("org.apache.derby.jdbc.EmbeddedDriver");
      }
      catch(Exception e){}
   }
   public void setTable(String str){
      tableName = "t_"+str;
      connectDatabase();//连接数据库

      try {
          Statement sta = con.createStatement();
          String SQL="create table "+tableName+
         "(p_name varchar(50) ,p_time int)";
          sta.executeUpdate(SQL);//创建表
          con.close();
      }
      catch(SQLException e) {//如果表已经存在，将触发SQL异常，即不再创建该表
      }
   }
   public boolean addRecord(String name,int time){
       boolean ok  = true;
      if(tableName == null)
         ok = false;
      //检查time是否达到标准(进入前heroNumber名)，见后面的verifyScore方法：
       int amount = verifyScore(time);
       if(amount >= heroNumber) {
          ok = false;
       }
       else {
          connectDatabase();  //连接数据库
          try {
             String SQL ="insert into "+tableName+" values(?,?)";
             PreparedStatement sta  = con.prepareStatement(SQL);
             sta.setString(1,name);
             sta.setInt(2,time);
             sta.executeUpdate();
             con.close();
             ok = true;
          }
          catch(SQLException e) {
             ok = false;
          }
       }
       return ok;
   }
   public String [][] queryRecord(){
      if(tableName == null)
         return null;
      String [][] record  = null;
      Statement sql;
      ResultSet rs;
      try {
        sql=
        con.createStatement
       (ResultSet.TYPE_SCROLL_INSENSITIVE,ResultSet.CONCUR_READ_ONLY);
        String str = "select * from "+tableName+" order by p_time ";
        rs=sql.executeQuery(str);
        boolean boo =rs.last();
        if(boo == false)
           return null;
        int recordAmount =rs.getRow();//结果集中的全部记录
        record = new String[recordAmount][2];
        rs.beforeFirst();
        int i=0;
        while(rs.next()) {
          record[i][0] = rs.getString(1);
          record[i][1] = rs.getString(2);
          i++;
        }
        con.close();
      }
      catch(SQLException e) {}
      return record;
   }
   private void connectDatabase(){
      try{
         String uri ="jdbc:derby:record;create=true";
         con=DriverManager.getConnection(uri); //连接数据库,如果不存在就创建

      }
      catch(Exception e){}
   }
   private int verifyScore(int time){
      if(tableName == null)
         return Integer.MAX_VALUE ;
      connectDatabase();    //连接数据库
      Statement sql;
      ResultSet rs;
      int amount = 0;
      String str =
      "select * from "+tableName+" where p_time < "+time;
      try {
        sql=con.createStatement();
        rs=sql.executeQuery(str);
        while(rs.next()){
           amount++;
        }
        con.close();
      }
      catch(SQLException e) {}
      return amount;
   }
}

ViewForBlock接口

package ch8.data;
public interface ViewForBlock {
    public void acceptBlock(Block block);//确定是哪个方块的视图
    public void setDataOnView(); //设置视图上需要显示的数据
    public void seeBlockNameOrIcon();//显示图标方块上的名字或
    public void seeBlockCover();     //显示视图上负责遮挡的组件
    public Object getBlockCover();   //得到视图上的遮挡组件
}

游戏视图设计（view包）

BlockView类

package ch8.view;
import javax.swing.*;
import java.awt.*;
import ch8.data.*;
public class BlockView extends JPanel implements ViewForBlock{
     JLabel blockNameOrIcon; //用来显示Block对象的name、number和mineIcon属性
     JButton blockCover;     //用来遮挡blockNameOrIcon.
     CardLayout card;        //卡片式布局
     Block block ;           //被提供视图的方块
     BlockView(){
        card=new CardLayout();
        setLayout(card);
        blockNameOrIcon=new JLabel("",JLabel.CENTER);
        blockNameOrIcon.setHorizontalTextPosition(AbstractButton.CENTER);
        blockNameOrIcon.setVerticalTextPosition(AbstractButton.CENTER);
        blockCover=new JButton();
        add("cover",blockCover);
        add("view",blockNameOrIcon);
     }
     public void acceptBlock(Block block){
         this.block = block;
     }
     public void setDataOnView(){
        if(block.isMine()){
           blockNameOrIcon.setText(block.getName());
           blockNameOrIcon.setIcon(block.getMineicon());
        }
        else {
           int n=block.getAroundMineNumber();
           if(n>=1)
             blockNameOrIcon.setText(""+n);
           else
             blockNameOrIcon.setText(" ");
        }
     }
     public void seeBlockNameOrIcon(){
        card.show(this,"view");
        validate();
     }
     public void seeBlockCover(){
        card.show(this,"cover");
        validate();
     }
     public JButton getBlockCover(){
        return blockCover;
     }
}

MineArea类

package ch8.view;
import java.awt.*;
import java.awt.event.*;
import javax.swing.*;
import ch8.data.*;
import java.util.Stack;
public class MineArea extends JPanel implements ActionListener,MouseListener{
     JButton reStart;
     Bloc编程客栈k [][] block;                  //雷区的方块
     BlockView [][] blockView;          //方块的视图
     LayMines lay;                      //负责布雷
     PeopleScoutMine peopleScoutMine;   //负责扫雷
     int row,colum,mineCount,markMount;//雷区的行数、列数以及地雷个数和用户给出的标记数
     ImageIcon mark;                   //探雷作的标记
     String grade;                     //游戏级别
     JPanel pCenter,pNorth;            //布局用的面板
     JTextField showTime,showMarkedMineCount; //显示用时和探雷作的标记数目（不一定是雷哦）
     Timer time;                          //计时器
     int spendTime=0;                     //扫雷的用时
     Record record;                       //负责记录到英雄榜
     PlayMusic playMusic;                 //负责播放雷爆炸的声音
     public MineArea(int row,int colum,int mineCount,String grade) {
         record = new Record(); //负责保存成绩到英雄榜
         reStart=new JButton("重新开始");
         mark=new ImageIcon("扫雷图片/mark.png");  //探雷标记
         time=new Timer(1000,this);                //计时器，每个一秒触发ActionEvent事件一次
         showTime=new JTextField(5);
         showMarkedMineCount=new JTextField(5);
         showTime.setHorizontalAlignment(JTextField.CENTER);
         showMarkedMineCount.setHorizontalAlignment(JTextField.CENTER);
         showMarkedMineCount.setFont(new Font("Arial",Font.BOLD,16));
         showTime.setFont(new Font("Arial",Font.BOLD,16));
         pCenter=new JPanel();
         pNorth=new JPanel();
         lay=new LayMines();                      //创建布雷者
         peopleScoutMine = new PeopleScoutMine(); //创建扫雷者
         initMineArea(row,colum,mineCount,grade); //初始化雷区,见下面的initMineArea方法
         reStart.addActionListener(this);
         pNorth.add(new JLabel("剩余雷数(千万别弄错啊):"));
         pNorth.add(showMarkedMineCount);
         pNorth.add(reStart);
         pNorth.add(new JLabel("用时:"));
         pNorth.add(showTime);
         setLayout(new BorderLayout());
         add(pNorth,BorderLayout.NORTH);
         add(pCenter,BorderLayout.CENTER);
         playMusic = new PlayMusic();              //负责播放触雷爆炸的声音
         playMusic.setClipFile("扫雷图片/mine.wav");
    }
    public void initMineArea(int row,int colum,int mineCount,String grade){
       pCenter.removeAll();
       spendTime=0;
       markMount=mineCount;
       this.row=row;
       this.colum=colum;
       this.mineCount=mineCount;
       this.grade=grade;
       block=new Block[row][colum];
       for(int i=0;i<row;i++){
         for(int j=0;j<colum;j++)
              block[i][j]=new Block();
       }
       lay.layMinesForBlock(block,mineCount);     //布雷
       peopleScoutMine.setBlock(block,mineCount); //准备扫雷
       blockView=new BlockView[row][colum];       //创建方块的视图
       pCenter.setLayout(new GridLayout(row,colum));
       for(int i=0;i<row;i++) {
          for(int j=0;j<colum;j++) {
               blockView[i][j]=new BlockView();
               block[i][j].setBlockView(blockView[i][j]); //方块设置自己的视图
               blockView[i][j].setDataOnView();  //将block[i][j]的数据放入视图
               pCenter.add(blockView[i][j]);
               blockView[i][j].getBlockCover().addActionListener(this);//注册监视器
               blockView[i][j].getBlockCover().addMouseListener(this);
               blockView[i][j].seeBlockCover(); //初始时盖住block[i][j]的数据信息
               blockView[i][j].getBlockCover().setEnabled(true);
               blockView[i][j].getBlockCover().setIcon(null);
          }
       }
      showMarkedMineCount.setText(""+markMount);
      repaint();
    }
   public void setRow(int row){
       this.row=row;
   }
   public void setColum(int colum){
       this.colum=colum;
   }
   public void setMineCount(int mineCount){
       this.mineCount=mineCount;
   }
   public void setGrade(String grade) {
       this.grade=grade;
   }
   public void actionPerformed(ActionEvent e) {
        if(e.getSource()!=reStart&&e.getSource()!=time) {
          time.start();
          int m=-1,n=-1;
          for(int i=0;i<row;i++) { //找到单击的方块以及它的位置索引
             for(int j=0;j<colum;j++) {
               if(e.getSource()==blockView[i][j].getBlockCover()){
                  m=i;
                  n=j;
                  break;
               }
             }
          }
          if(block[m][n].isMine()) { //用户输掉游戏
             for(int i=0;i<row;i++) {
                for(int j=0;j<colum;j++) {
                   blockView[i][j].getBlockCover().setEnabled(false);//用户单击无效了
                   if(block[i][j].isMine())
                      blockView[i][j].seeBlockNameOrIcon(); //视图显示方块上的数据信息
                }
             }
             time.stop();
             spendTime=0;             //恢复初始值
             markMount=mineCount;      //恢复初始值
             playMusic.playMusic();    //播放类爆炸的声音
         }
         else {  //扫雷者得到block[m][n]周围区域不是雷的方块
             Stack<Block> notMineBlock =peopleScoutMine.getNoMineAroundBlock(block[m][n]);
             while(!notMineBlock.empty()){
                Block bk = notMineBlock.pop();
                ViewForBlock viewforBlock = bk.getBlockView();
                viewforBlock.seeBlockNameOrIcon();//视图显示方块上的数据信息
                System.out.println("ookk");
             }
         }
      }
      if(e.getSource()==reStart) {
         initMineArea(row,colum,mineCount,grade);
         repaint();
         validate();
      }
      if(e.getSource()==time){
         spendTime++;
         showTime.setText(""+spendTime);
      }
      if(peopleScoutMine.verifyWin()) {  //判断用户是否扫雷成功
         time.stop();
         record.setGrade(grade);
         record.setTime(spendTime);
         record.setVisible(true);       //弹出录入到英雄榜对话框
      }
    }
    public void mousePressed(MouseEvent e){ //探雷:给方块上插一个小旗图标（再次单击取消）
        JButton source=(JButton)e.getSource();
        for(int i=0;i<row;i++) {
            for(int j=0;j<colum;j++) {
              if(e.getModifiers()==InputEvent.BUTTON3_MASK&&
                 source==blockView[i][j].getBlockCover()){
                 if(block[i][j].getIsMark()) {
                        source.setIcon(null);
                        block[i][j].setIsMark(false);
                        markMount=markMount+1;
                        showMarkedMineCount.setText(""+markMount);
                 }
                 else{
                        source.setIcon(mark);
                        block[i][j].setIsMark(true);
                        markMount=markMount-1;
                        showMarkedMineCount.setText(""+markMount);
                 }
              }
            }
        }
   }
   public void mouseReleased(MouseEvent e){}
   public void mouseEntered(MouseEvent e){}
   public void mouseExited(MouseEvent e){}
   public void mouseClicked(MouseEvent e){}
}

PlayMusic类

package ch8.view;
import java.net.URI;
import java.net.URL;
import java.io.File;
import java.applet.Applet;
import java.applet.AudioClip;
public class PlayMusic implements Runnable {
      String musicName;
      Thread threadPlay;
      AudioClip clip = null;
      public PlayMusic(){
         threadPlay = new Thread(this);
      }
      public void run() {
          clip.play();
      }
      public void playMusic(){
          threadPlay = new Thread(this);
          try{
             threadPlay.start();
          }
          catch(Exception exp) {}
      }
      public void setClipFile(String name){
           musicName = name;
          if(musicName == null)
             musicName = "扫雷图像/mine.wav";
          File file=new File(musicName);
          try { URI uri=file.toURI();
                URL url=uri.toURL();
                clip=Applet.newAudioClip(url);
          }
          catch(Exception ee){}
      }
}

Record类

package ch8.view;
import javax.swing.*;
import java.awt.event.*;
import ch8.data.RecordOrShowRecord;
public class Record extends JDialog implements ActionListener{
   int time=0;
   String grade=null;
   String key=null;
   String message=null;
   JTextField textName;
   JLabel label=null;
   JButton confirm,cancel;
   public Record(){
      setTitle("记录你的成绩");
      this.time=time;
      this.grade=grade;
      setBounds(100,100,240,160);
      setResizable(false);
      setModal(true);
      confirm=new JButton("确定");
      cancel=new JButton("取消");
      textName=new JTextField(8);
      textName.setText("匿名");
      confirm.addActionListener(this);
      cancel.addActionListener(this);
      setLayout(new java.awt.GridLayout(2,1));
      label=new JLabel("输入您的大名看是否可上榜");
      add(label);
      JPanel p=new JPanel();
      p.add(textName);
      p.add(confirm);
      p.add(cancel);
      add(p);
      setDefaultCloseOperation(JFrame.HIDE_ON_CLOSE);
  }
  public void setGrade(String grade){
      this.grade=grade;
  }
  public void setTime(int timejavascript){
      this.time=time;
  }
  public void actionPerformed(ActionEvent e){
     if(e.getSource()==confirm){
         String name = textName.getText();
         writeRecord(name,time);
         setVisible(false);
     }
     if(e.getSource()==cancel){
         setVisible(false);
     }
  }
  public void  writeRecord(String name,int time){
     RecordOrShowRecord rd = new RecordOrShowRecord();
     rd.setTable(grade);
     boolean boo= rd.addRecord(name,time);
     if(boo){
       JOptionPane.showMessageDialog
          (null,"恭喜您，上榜了","消息框", JOptionPane.WARNING_MESSAGE);
     }
     else {
       JOptionPane.showMessageDialog
          (null,"成绩不能上榜","消息框", JOptionPane.WARNING_MESSAGE);
     }
  }
}

ShowRecord类

package ch8.view;
import java.awt.*;
import javax.swing.*;
import ch8.data.RecordOrShowRecord;
public class ShowRecord extends JDialog {
   String [][] record;
   JTextArea showMess;
   RecordOrShowRecord rd;//负责查询数据库的对象
   public ShowRecord() {
      rd = new RecordOrShowRecord();
      showMess = new JTextArea();
      showMess.setFont(new Font("楷体",Font.BOLD,15));
      add(new jscrollPane(showMess));
      setTitle("显示英雄榜");
      setBounds(400,200,400,300);
      setDefaultCloseOperation(JFrame.DISPOSE_ON_CLOSE);
   }
   public void setGrade(String grade){
      rd.setTable(grade);
   }
   public void setRecord(String [][]record){
      this.record=record;
   }
   public void showRecord() {
       showMess.setText(null);
       record = rd.queryRecord();
       if(record == null ) {
         JOptionPane.showMessageDialog
            (null,"没人上榜呢","消息框", JOptionPane.WARNING_MESSAGE);
       }
       else {
         for(int i =0 ;i<record.length;i++){
              int m = i+1;
              showMess.append("\n英雄"+m+":"+record[i][0]+"         "+"成绩:"+record[i][1]);
              showMess.append("\n--------------------------------");
         }
         setVisible(true);
      }
   }
}

四、代码测试

这里我们创建test包，实现AppTest类来进行代码的测试，代码如下：

package ch8.test;
import ch8.data.*;
import java.util.Stack;
public class AppTest {
   public static void main(String [] args) {
       Block block[][] = n开发者_自学开发ew Block[5][10];  //雷区
       for(int i=0;i<block.length;i++) {
           for(int j = 0;j<block[i].length;j++) {
             block[i][j] = new Block();
           }
       }
       LayMines layMines = new LayMines();                        //布雷者
       PeopleScoutMine peopleScoutMine  = new PeopleScoutMine();  //扫雷者
       layMines.layMinesForBlock(block,10); //在雷区布雷
       System.out.println("雷区情况:");
       intputShow(block);
       peopleScoutMine.setBlock(block,10);  //准备扫雷
       Stack<Block> stack = peopleScoutMine.getNoMineAroundBlock(block[0][0]);//扫雷
       if(block[0][0].isMine()){
          System.out.println("我的天啊，踩着地雷了啊");
          return;
       }
       System.out.println("扫雷情况:");
       intputProcess(block,stack);
       System.out.println("成功了吗:"+peopleScoutMine.verifyWin());
       if(block[3][3].isMine()){
          System.out.println("我的天啊，踩着地雷了啊");
          return;
       }
       stack = peopleScoutMine.getNoMineAroundBlock(block[3][3]);//扫雷
       System.out.println("扫雷情况:");
       intputProcess(block,stack);
       System.out.println("成功了吗:"+peopleScoutMine.verifyWin());
   }
   static void intputProcess(Block [][] block,Stack<Block> stack){
       int k = 0;
       for(int i=0;i<block.length;i++) {
           for(int j = 0;j<block[i].length;j++){
              if(!stack.contains(block[i][j])&&block[i][j].getIsOpen()==false){
                 System.out.printf("%2s","■ "); //输出■表示未挖开方块
              }
              else {
                 int m = block[i][j].getAroundMineNumber();//显示周围雷的数目
                 System.out.printf("%2s","□"+m);
              }
           }
           System.out.println();
       }
   }
   static void intputShow(Block [][] block){
       int k = 0;
       for(int i=0;i<block.length;i++) {
           for(int j = 0;j<block[i].length;j++){
              if(block[i][j].isMine()){
                 System.out.printf("%2s","#"); //输出#表示是地雷
              }
              else {
                 int m = block[i][j].getAroundMineNumber();//显示周围雷的数目
                 System.out.printf("%2s",m);
              }
           }
           System.out.println();
       }
   }
}

五、项目结构

六、设计总结

本次项目设计是通过 Java语言编制一个扫雷游戏，Java语言是当今较为流行的网络编程语言，它具有面向对象、跨平台、分布应用等特点。这次设计，还有利于加深对 Java课程的进一步了解，也可以巩固所学 Java语言基本知识，增进 Java语言编辑基本功，拓宽常用类库的应用。采用面向对象思想的程序，锻炼了面向对象的设计能力，使编程者通过该教学环节与手段，把所学课程及相关知识加以融会贯通，全面掌握 Java语言的编程思想及面向对象程序设计的方法。

总结

到此这篇关于使用Java实现三种等级的扫雷游戏的文章就介绍到这了,更多相关Java实现扫雷游戏内容请搜索我们以前的文章或继续浏览下面的相关文章希望大家以后多多支持我们！
