Spring boot异步任务原理全面分析

开发者 https://www.devze.com 2022-11-29 11:28 出处:网络 作者: fenglllle
目录前言1.spring异步任务2.Springboot异步任务执行过程分析3.Spring异步任务执行过程分析4.Spring自定义Executor与自定义异步异常处理总结前言我们经...
目录
  • 前言
  • 1. spring 异步任务
  • 2. Spring boot异步任务执行过程分析
  • 3. Spring 异步任务执行过程分析
  • 4. Spring 自定义Executor与自定义异步异常处理
  • 总结

前言

我们经常在需要提升性能或者项目架构解耦的过程中,使用线程池异步执行任务,经常使用ThreadPoolExecutor创建线程池。那么Spring对异步任务是如何处理的呢?

1. spring 异步任务

估计或多或少了解过一些,比如@EnableAsync可以开启异步任务,@Async用于注解说明当前方法是异步执行,下面使用demo看看Spring的异步任务如何执行。

pom依赖,其实仅依赖Spring core context 就可以了,这里演示,另外spring boot还要许多好玩的特性。

<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>2.1.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <version>2.1.3.RELEASE</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

main & controller

@RestController
@SpringBootApplication
public class AsyncMain {
    public static void main(String[] args)javascript {
        SpringApplication.run(AsyncMain.class, args);
    }

    @Autowired
    private TaskService taskService;

    @RequestMapping(value = "/async-task", method = RequestMethod.GET)
    public String asyncMapping(){
        System.out.println(Thread.currentThread().getThreadGroup() + "http-------" + Thread.currentThread().getName());
        taskService.doTask();
        return "exec http ok--------------";
    }
}

异步任务服务

@EnableAsync
@Service
public class TaskService {

    @Async
    public String doTask(){
        System.out.println(Thread.currentThread().getThreadGroup() + "-------" + Thread.currentThread().getName());
        return "do task done";
    }
}

运行main方法,访问localhost:8080/async-task,控制台可以看到:

Spring boot异步任务原理全面分析

可以看到线程的name是task-1,而http访问的线程是http-nio-xxx。说明任务异步执行了。然而Spring的异步任务是如何执行的呢,我们也并未创建线程池,难道Spring替我们创建了?

2. Spring boot异步任务执行过程分析

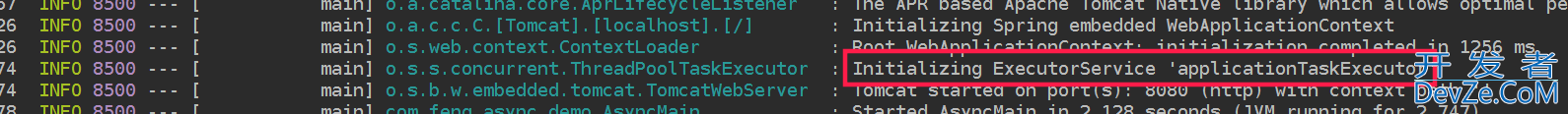

首先,需要执行异步任务,必须创建线程池,那我们来揪出Spring创建的线程池,从启动日志可以看出

Spring boot异步任务原理全面分析

Spring默认给我们创建了applicationTaskExecutor的ExecutorService的线程池。

通过源码分析,Spring boot的starter已经给我们设置了默认的执行器

/**
 * {@link EnableAutoConfiguration Auto-configuration} for {@link TaskExecutor}.
 *
 * @author Stephane Nicoll
 * @author Camille Vienot
 * @since 2.1.0
 */
@ConditionalOnClass(ThreadPoolTaskExecutor.class)
@Configurationpython
@EnableConfigurationProperties(TaskExecutionProperties.class)
public class TaskExecutionAutoConfiguration {

	/**
	 * Bean name of the application {@link TaskExecutor}.
	 */
	public static final String APPLICATION_TASK_EXECUTOR_BEAN_NAME = "applicationTaskExecutor";

	private final TaskExecutionProperties properties;

	private final ObjectProvider<TaskExecutorCustomizer> taskExecutorCustomizers;

	private final ObjectProvider<TaskDecorator> taskDecorator;

	public TaskExecutionAutoConfiguration(TaskExecutionProperties properties,
			ObjectProvider<TaskExecutorCustomizer> taskExecutorCustomizers,
			ObjectProvider<TaskDecorator> taskDecorator) {
		this.properties = properties;
		this.taskExecutorCustomizers = taskExecutorCustomizers;
		this.taskDecorator = taskDwww.devze.comecorator;
	}

	@Bean
	@ConditionalOnMissingBean
	public TaskExecutorBuilder taskExecutorBuilder() {
		TaskExecutionProperties.Pool pool = this.properties.getPool();
		TaskExecutorBuilder builder = new TaskExecutorBuilder();
		builder = builder.queueCapacity(pool.getQueueCapacity());
		builder = builder.corePoolSize(pool.getCoreSize());
		builder = builder.maxPoolSize(pool.getMaxSize());
		builder = builder.allowCoreThreadTimeOut(pool.isAllowCoreThreadTimeout());
		builder = builder.keepAlive(pool.getKeepAlive());
		builder = builder.threadNamePrefix(this.properties.getThreadNamePrefix());
		builder = builder.customizers(this.taskExecutorCustomizers);
		builder = builder.taskDecorator(this.taskDecorator.getIfUnique());
		return builder;
	}

	@Lazy
	@Bean(name = { APPLICATION_TASK_EXECUTOR_BEAN_NAME,
			AsyncAnnotationBeanPostProcessor.DEFAULT_TASK_EXECUTOR_BEAN_NAME })
	@ConditionalOnMissingBean(Executor.class)
	public ThreadPoolTaskExecutor applicationTaskExecutor(TaskExecutorBuilder builder) {
		return builder.build();
	}
}

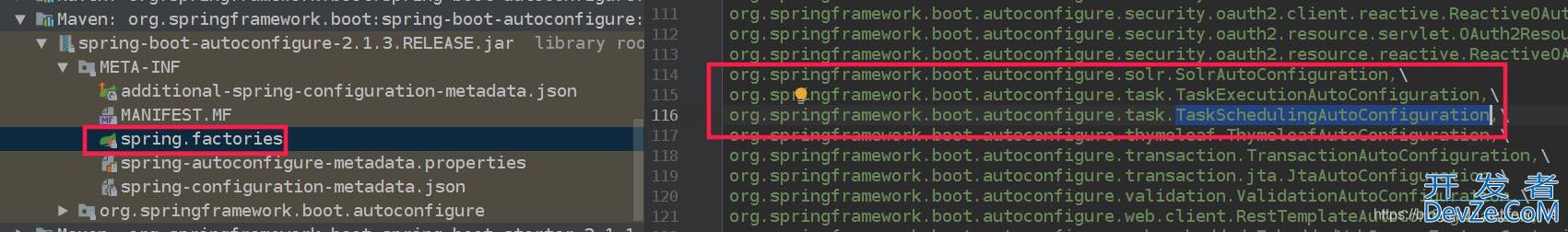

追根溯源:在Spring boot的autoconfigure中已经定义了默认实现

Spring boot异步任务原理全面分析

Spring为我们定义了两种实现,如上图所示,根据Spring boot的配置定律,我们可以通过配置来定义异步任务的参数

@ConfigurationProperties("spring.task.execution")
public class TaskExecutionProperties {

	private final Pool pool = new Pool();

	/**
	 * Prefix to use for the names of newly created threads.
	 */
	private String threadNamePrefix = "task-";

	public Pool getPool() {
		return this.pool;
	}

	public String getThreadNamePrefix() {
		return this.threadNamePrefix;
	}

	public void setThreadNamePrefix(String threadNamePrefix) {
		this.threadNamePrefix = threadNamePrefix;
	}

	public static class Pool {

		/**
		 * Queue capacity. An unbounded capacity does not increase the pool and therefore
		 * ignores the "max-size" property.
		 */
		private int queueCapacity = Integer.MAX_VALUE;

		/**
		 * Core number of threads.
		 */
		private int coreSize = 8;

		/**
		 * Maximum allowed number of threads. If tasks are filling up the queue, the pool
		 * can expand up to that size to accommodate the load. Ignored if the queue is
		 * unbounded.
		 */
		private int maxSize = Integer.MAX_VALUE;

		/**
		 * Whether core threads are allowed to time out. This enables dynamic growing and
		 * shrinking of the pool.
		 */
		private boolean allowCoreThreadTimeout = true;

		/**
		 * Time limit for which threads may remain idle before being terminated.
		 */
		private Duration keepAlive = Duration.ofSeconds(60);

省略get set方法,spring boot的配置以spring.task.execution开头,参数的设置参考如上源码的属性设置。

各位可以自行尝试,当然因为Spring bean的定义方式,我们可以复写bean来达到自定义的目的

  @Lazy
 @Bean(name = { APPLICATION_TASK_EXECUTOR_BEAN_NAME,
   AsyncAnnotationBeanPostProcessor.DEFAULT_TASK_EXECUTOR_BEAN_NAME })
 @ConditionalOnMissingBean(Executor.class)
 public ThreadPoolTaskExecutor applicationTaskExecutor(TaskExecutorBuilder builder) {
  return builder.build();
 }

比如:

@Configuration
@EnableAsync
public class TaskAsyncConfig {

    @Bean
    public Executor initExecutor(){
        ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
        //定制线程名称,还可以定制线程group
        executor.setThreadFactory(new ThreadFactory() {
            private final AtomicInteger threadNumber = new AtomicInteger(1);

            @Override
            public Thread newThread(Runnable r) {
                Thread t = new Thread(Thread.currentThread().getThreadGroup(), r,
                        "async-task-" + threadNumber.getAndIncrement(),
                        0);
                return t;
            }
        });
        executor.setCorePoolSize(10);
        executor.setMaxPoolSize(20);
        executor.setKeepAliveSeconds(5);
        executor.setQueueCapacity(100);
//        executor.setRejectedExecutionHandler(null);
        return executor;
    }
}

重启,访问localhost:8080/async-task,证明我们写的Executor已经覆盖系统默认了。

Spring boot异步任务原理全面分析

3. Spring 异步任务执行过程分析

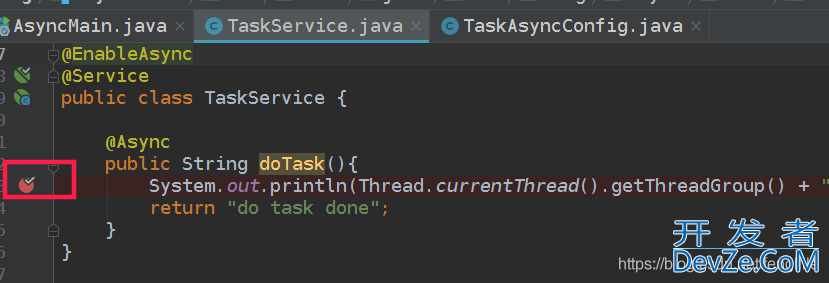

方法断点跟踪

Spring boot异步任务原理全面分析

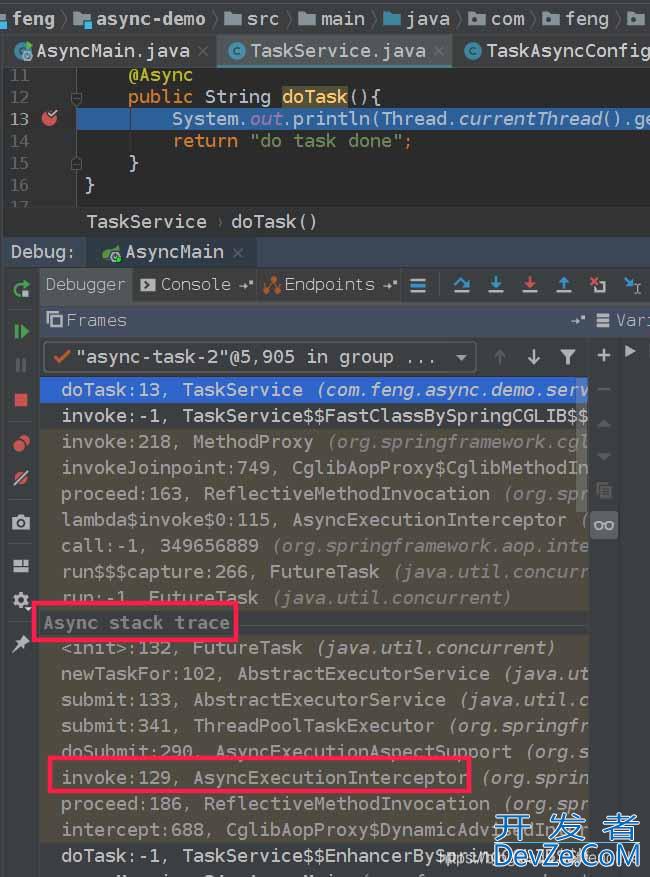

执行异步任务使用Spring CGLib动态代理AOP实现

Spring boot异步任务原理全面分析

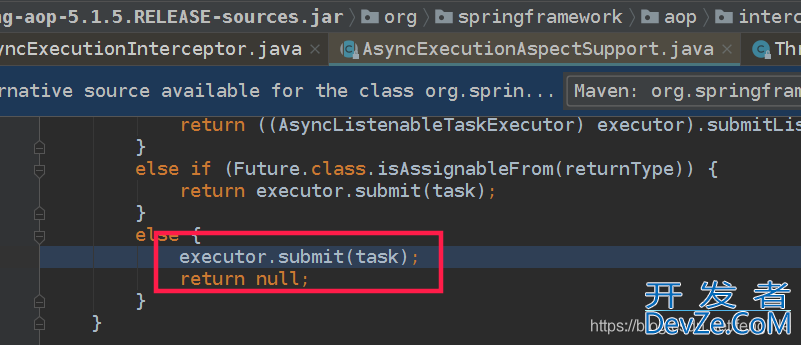

可以看出动态代理后使用AsyncExecutionInterceptor来处理异步逻辑,执行submit方法

Spring boot异步任务原理全面分析

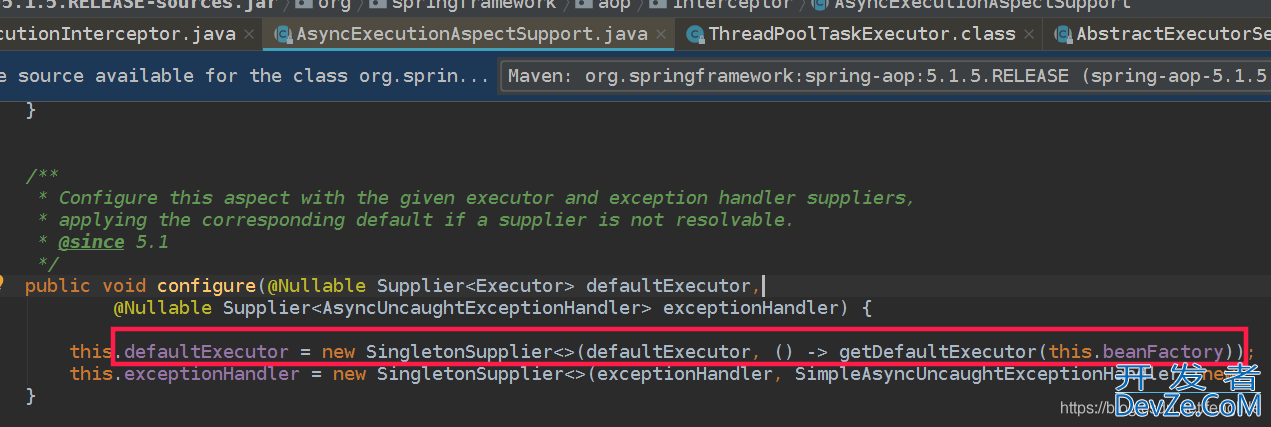

同理可以看出,默认的taskExecutor使用BeanFactory中获取。

Spring boot异步任务原理全面分析

默认使用SimpleAsyncUncaughtExceptionHandler处理异步异常。下面我们来试试

@EnableAsync
@Service
public class TaskService {

    @Async
    public String doTask(){
        System.out.println(Thread.currentThread().getThreadGroup() + "-------" + Thread.currentThread().getName());
        throw new RuntimeException(" I`m a demo test exception-----------------");
    }
}

默认会打印logger.error("Unexpected exception occurred invoking async method: " + method, ex);日志

public class SimpleAsyncUncaughtExceptionHandler implements AsyncUncaughtExceptionHandler {

	private static final Log logger = LogFactory.getLog(SimpleAsyncUncaughtExceptionHandler.class);


	@Override
	public void handleUncaughtException(Throwable ex, Method method, Object... params) {
		if (logger.isErrorEnabled()) {
			logger.error("Unexpected exception occurred invoking async method: " + method, ex);
		}
	}

}

运行测试

Spring boot异步任务原理全面分析

4. Spring 自定义Executor与自定义异步异常处理

需要实现AsyncConfigurer接口,可以看到Spring要我们配合EnableAsync与Configuration注解同时使用

/**
 * Interface to be implemented by @{@link org.springframework.context.annotation.Configuration
 * Configuration} classes annotated with @{@link EnableAsync} that wish to customize the
 * {@link Executor} instance used when processing async method invocations or the
 * {@link AsyncUncaughtExceptionHandler} instance used to process exception thrown from
 * async method with {@code void} return type.
 *
 * <p>Consider using {@link AsyncConfigurerSupport} providing default implementations for
 * both methods if only one element needs to be customized. Furthermore, backward compatibility
 * of this interface will be insured in case new customization options are introduced
 * in the future.
 *
 * <p>See @{@link EnableAsync} for usage examples.
 *
 * @author Chris Beams
 * @author Stephane Nicoll
 * @since 3.1
 * @see AbstractAsyncConfiguration
 * @see EnableAsync
 * @see AsyncConfigurerSupport
 */
public interface AsyncConfigurer {

	/**
	 * The {@link Executor} instance to be used when processing async
	 * method invocations.
	 */
	@Nullable
	default Executor getAsyncExecutor() {
		return null;
	}

	/**
	 * The {@link AsyncUncaughtExceptionHandler} instance to be used
	 * when an exception is thrown during an asynchronous method execution
	 * with {@code void} return type.
	 */
	@Nullable
	default AsyncUncaughtExceptionHandler getAsyncUncaughtExceptionHandler() {
		return null;
	}
}

demo,如下改造

@Configuration
@EnableAsync
public class TaskAsyncConfig implements AsyncConfigurer {
    @Override
    public Executor getAsyncExecutor() {
        ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
        //定制线程名称,还可以定制线程group
        executor.setThreadFactory(new ThreadFactory() {
            private final AtomicInteger threadNumber = new AtomicInteger(1);

            @Override
            public Thread newThread(Runnable r) {
                //重新定义一个名称
                Thread t = new Thread(Thread.currentThread().getThreadGroup(), r,
                        "async-task-all" + threadNumber.getAndIncrement(),
                        0);
                return t;
            }
        });
        executor.setCorePoolSize(10);
        executor.setMaxPoolSize(20);
        executor.setKeepAliveSeconds(5);
        executor.setQueueCapacity(100);
//        executor.setRejectedExecutionHandler(null);
        executor.initialize();
        return executor;
    }

    @Override
    public AsyncUncaughtExceptionHandler getAsyncUncaughtExceptionHandler() {
        return new AsyncUncaughtExceptionHandler() {
            @Override
            public void handleUncaughtException(Throwable ex, Method method, Object... params) {
                System.out.println("do exception by myself");
            }
        };
    }

}

记住,此时,Spring就不会替我们管理Executor了,需要我们自己初始化

executor.initialize();

观其源码就是new 一个ThreadPoolExecutor

@Override
	protected ExecutorService initializeExecutor(
			ThreadFactory threadFactory, RejectedExecutionHandler rejectedExecutionHandler) {

		blockingQueue<Runnable> queue = createQueue(this.queueCapacity);

		ThreadPoolExecutor executor;
		if (this.taskDecorator != null) {
			executor = new ThreadPoolExecutor(
					this.corePoolSize, this.maxPoolSize, this.keepAliveSeconds, TimeUnit.SECONDS,
					queue, threadFactory, rejectedExecutionHandler) {
				@Overrwww.devze.comide
				public void execute(Runnable command) {
					Runnable decorated = taskDecorator.decorate(command);
					if (decorated != command) {
						decoratedTaskMap.put(decorated, command);
					}
					super.execute(decorated);
				}
			};
		}
		else {
			executor = new ThreadPoolExecutor(
					this.corePoolSize, this.maxPoolSize, this.keepAliveSeconds, TimeUnit.SECONDS,
					queue, threadFactory, rejectedExecutionHandler);

		}

		if (this.allowCoreThreadTimeOut) {
			executor.allowCoreThreadTimeOut(true);
		}

		this.threadPoolExecutor = executor;
		return executor;
	}

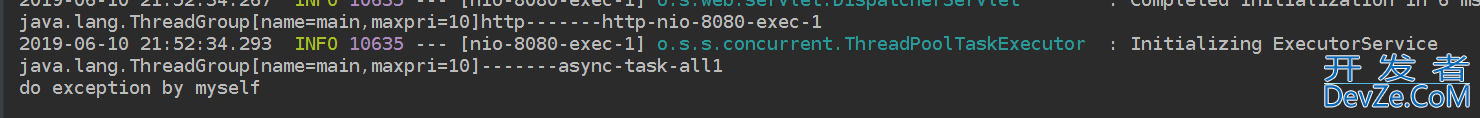

运行,结果如下

Spring boot异步任务原理全面分析

总结

Spring boot将简单的ThreadPoolExecutor通过封装成了异步任务,大大方便了程序的开发。

然而我们在如上的示例中,并没有处理程序的异步执行结果,其实Spring定义了结果的处理

/**
 * AOP Alliance {@code MethodInterceptor} that processes method invocations
 * asynchronously, using a given {@link org.springframework.core.task.AsyncTaskExecutor}.
 * Typically used with the {@link org.springframework.scheduling.annotation.Async} annotation.
 *
 * <p>In terms of target method signatures, any parameter types are supported.
 * However, the return type is constrained to either {@code void} or
 * {@code Java.util.concurrent.Future}. In the latter case, the Future handle
 * returned from the proxy will be an actual asynchronous Future that can be used
 * to track the result ofazQzLoEQC the asynchronous method execution. However, since the
 * target method needs to implement the same signature, it will have to return
 * a temporary Future handle that just passes the return value through
 * (like Spring's {@link org.springframework.scheduling.annotation.AsyncResult}
 * or EJB 3.1's {@code javax.ejb.AsyncResult}).
 *
 * <p>When the return type is {@code java.util.concurrent.Future}, any exception thrown
 * during the execution can be Accessed and managed by the caller. With {@code void}
 * return type however, such exceptions cannot be transmitted back. In that case an
 * {@link AsyncUncaughtExceptionHandler} can be registered to process such exceptions.
 *
 * <p>As of Spring 3.1.2 the {@code AnnotationAsyncExecutionInterceptor} subclass is
 * preferred for use due to its support for executor qualification in conjunction with
 * Spring's {@code @Async} annotation.
 *
 * @author Juergen Hoeller
 * @author Chris Beams
 * @author Stephane Nicoll
 * @since 3.0
 * @see org.springframework.scheduling.annotation.Async
 * @see org.springframework.scheduling.annotation.AsyncAnnotationAdvisor
 * @see org.springframework.scheduling.annotation.AnnotationAsyncExecutionInterceptor
 */
public class AsyncExecutionInterceptor extends AsyncExecutionASPectSupport implements MethodInterceptor, Ordered开发者_Python {
<p>In terms of target method signatures, any parameter types are supported.
* However, the return type is constrained to either {@code void} or
* {@code java.util.concurrent.Future}. In the latter case, the Future handle
* returned from the proxy will be an actual asynchronous Future that can be used
* to track the result of the asynchronous method execution. However, since the
* target method needs to implement the same signature, it will have to return
* a temporary Future handle that just passes the return value through
* (like Spring's {@link org.springframework.scheduling.annotation.AsyncResult}
* or EJB 3.1's {@code javax.ejb.AsyncResult}).

如果程序不返回void或者Future,那么通过AsyncResult来返回一个结果

另外Spring还定义了一个Task,即定时任务task,原理相同。

以上为个人经验,希望能给大家一个参考,也希望大家多多支持我们。

0

精彩评论

暂无评论...
验证码 换一张
取 消

关注公众号
