Spring AOP如何自定义注解实现审计或日志记录(完整代码)

开发者 https://www.devze.com 2022-12-29 10:34 出处：网络 作者： DayDayUp丶
目录环境准备项目编程客栈结构自定义审计注解定义切面类定义返回值处理基类定义返回值处理子类定义功能模块类定义操作类定义审计信息实体类书写mapper文件开启AOP拦截注解配置总结环境准备
相关专题：SpringAOP注解实现日志记录自定义注解自定义注解实现审计
目录
  • 环境准备
  • 项目编程客栈结构
  • 自定义审计注解
  • 定义切面类
  • 定义返回值处理基类
  • 定义返回值处理子类
  • 定义功能模块类
  • 定义操作类
  • 定义审计信息实体类
  • 书写mapper文件
  • 开启AOP拦截
  • 注解配置
  • 总结

环境准备

JDK 1.8，Springboot 2.1.3.RELEASE，spring-boot-starter-aop.2.1.4.RELEASE.jar，ASPectjrt.1.9.2.jar，aspectjweaver.1.9.2.jar，pom依赖如下：

<!-- 添加aspectj -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-aop</artifactId>
    <version>2.1.4.RELEASE</version>
</dependency>
<dependency>
    <groupId>org.aspectj</groupId>
    <artifactId>aspectjrt</artifactId>
    <version>1.9.2</version>
</dependency>
<dependency>
    <groupId>org.aspectj</groupId>
    <artifactId>aspectjweaver</artifactId>
    <version>1.9.2</version>
</dependency>

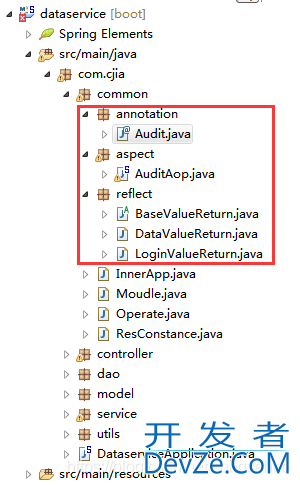

项目结构

Spring AOP如何自定义注解实现审计或日志记录(完整代码)

自定义审计注解

package com.cjia.common.annotation;

import Java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

@Retention(value = RetentionPolicy.RUNTIME)
@Target(value = { ElementType.METHOD })
public @interface Audit {

    /**
     * 模块代码
     */
    int moudleCode() default -1;

    /**
     * 扩展信息，用户返回操作类型及参数
     */
    Class<?> extension();
}

定义切面类

package com.cjia.common.aspect;

import java.lang.reflect.Constructor;
import java.lang.reflect.Method;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;
import java.util.Map;

import javax.servlet.http.HttpServletRequest;

import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.After;
import org.aspectj.lang.annotation.AfterReturning;
import org.aspectj.lang.annotation.AfterThrowing;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.aspectj.lang.annotation.Pointcut;
import org.aspectj.lang.reflect.MethodSignature;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;

import com.cjia.common.Moudle;
import com.cjia.common.Operate;
import com.cjia.common.annotation.Audit;
import com.cjia.common.reflect.BaseValueReturn;
import com.cjia.model.AuditMessage;
import com.cjia.model.ResponseContent;
import com.cjia.model.User;
import com.cjia.service.AuditService;
import com.cjia.service.UserService;

@Aspect
@Component
public class AuditAop {

    private static final Logger LOGGER = LoggerFactory.getLogger(AuditAop.class);
    @Autowired
    private AuditService auditService;
    @Autowired
    private UserService userService;
    // 操作发起者
    ThreadLocal<User> user = new ThreadLocal<>();
    // 操作应用
    ThreadLocal<Integer> appId = new ThreadLocal<>();
    // 功能模块
    ThreadLocal<Integer> moudleCode = new ThreadLocal<>();
    // 操作类型
    ThreadLocal<Integer> operateType = new ThreadLocal<>();
    // IP地址
    ThreadLocal<String> ip = new ThreadLocal<>();
    // 操作时间点
    ThreadLocal<String> operateTime = new ThreadLocal<>();
    // 操作信息实体
    ThreadLocal<AuditMessage> msg = new ThreadLocal<>();
    // 对CIS，额外的菜单id信息extension
    ThreadLocal<String> extension = new ThreadLocal<>();

    // 声明AOP切入点
    @Pointcut("@annotation(com.cjia.common.annotation.Audit)")
    public void audit() {
    }

    @Before("audit()")
    public void beforeExec(JoinPoint joinPoint) {
    }

    @After("audit()")
    public void afterExec(JoinPoint joinPoint) {
    }

    @Around("audit()")
    public Object aroundExec(ProceedingJoinPoint pjp) throws Throwable {
        try {
            HttpServletRequest request = ((ServletRequestAttributes) RequestContextHolder.getRequestAttributes()).getRequest();
            extension.set(request.getParameter("extension"));
            operateTime.set(new SimpleDateFormat("yyyy-MM-dd HH:mm:ss").format(new Date()));
            ip.set(getIpAddr(request));
            appId.set(Integer.valueOf(request.getParameter("appId")));

            MethodSignature ms = (MethodSignature) pjp.getSignature();
            Method method = ms.getMethod();
            // 获取注解的参数信息
            Audit auditAnno = method.getAnnotation(Audit.class);
            moudleCode.set(auditAnno.moudleCode());
            Class<?> external = auditAnno.extension();
            Constructor<?> cons = external.getConstructor(Integer.class, HttpServletRequest.class);
            BaseValueReturn bvr = (BaseValueReturn) cons.newInstance(moudleCode.get(), request);
            Map<String, Object> reqInfo = bvr.getRequestInfo();
            Integer operate_type = Integer.valueOf(reqInfo.get(BaseValueReturn.OPT) + "");
   编程客栈         operateType.set(operate_type);
            Object target = reqInfo.get(BaseValueReturn.TARGET);
           python // 获取当前登录的用户，需注意：登录时没有msgKey
            String msgKey = request.getParameter("msgKey");
            User loginUser = null;
            if (operate_type.equals(Operate.LOGIN)) {
                List<User> users = userService.selectByEmail(String.valueOf(target));
                if (users != null && !users.isEmpty()) {
                    loginUser = users.get(0);
                }
            } else if (msgKey != null) {
                loginUser = userService.selectMsgFromRedisPurely(msgKey);
            }
            user.set(loginUser);

            AuditMessage am = new AuditMessage();
            // am.setUserId需判空，代表过期
            if (loginUser != null) {
                am.setUserId(loginUser.getId());
            } else {
                am.setUserId(-1);
            }
            am.setAppId(appId.get());
            am.setMoudleCode(moudleCode.get());
            am.setOperateType(operateType.get());
            am.setIp(ip.get());
            am.setOperateTime(开发者_JAV培训operateTime.get());
            // TODO details=target
            String details = "";
            if (moudleCode.get() == Moudle.DATA && loginUser != null) {
                details = (String) target;
            } else {
                // TODO 其他模块
            }
            am.setTarget(details);
            msg.set(am);
            auditService.insert(msg.get());
        } catch (Exception e) {
            LOGGER.error("Error occured while auditing, cause by: ", e);
        } finally {
            // FATAL: remove threadLocal and set threadLocal = null
        }
        Object rtn = pjp.proceed();
        return rtn;
    }

    /**
     * 带参返回
     */
    @AfterReturning(pointcut = "audit()", returning = "rc")
    public void doAfterReturning(ResponseContent rc) {
        LOGGER.debug("afterReturning with returnType..");
    }

    /**
     * 不带参返回
     */
    @AfterReturning(pointcut = "audit()")
    public void doAfterReturning(JoinPoint joinPoint) {
        LOGGER.debug("afterReturning without returnType..");
    }

    @AfterThrowing(pointcut = "audit()", throwing = "e")
    public void doAfterThrowing(JoinPoint joinPoint, Throwable e) {
        LOGGER.error("Error occured, cause by {}", e.getMessage());
    }

    private String getRemoteHost(HttpServletRequest request) {
        String ip = request.getHeader("x-javascriptforwarded-for");
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("Proxy-Client-IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("WL-Proxy-Client-IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getRemoteAddr();
        }
        return ip.equals("0:0:0:0:0:0:0:1") ? "127.0.0.1" : ip;
    }

    /**
     * 获取用户真实IP地址，不使用request.getRemoteAddr()的原因是有可能用户使用了代理软件方式避免真实IP地址,
     * 可是，如果通过了多级反向代理的话，X-Forwarded-For的值并不止一个，而是一串IP值
     *
     * @return ip
     */
    private String getIpAddr(HttpServletRequest request) {
        String ip = request.getHeader("x-forwarded-for");
        if (ip != null && ip.length() != 0 && !"unknown".equalsIgnoreCase(ip)) {
            // 多次反向代理后会有多个ip值，第一个ip才是真实ip
            if( ip.indexOf(",")!=-1 ){
                ip = ip.split(",")[0];
            }
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("Proxy-Client-IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("WL-Proxy-Client-IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("HTTP_CLIENT_IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("HTTP_X_FORWARDED_FOR");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("X-Real-IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getRemoteAddr();
        }
        return ip;
    }

}

注意事项

第81行的HttpServletRequest request最好设置为局部变量，或ThreadLocal修饰的成员变量，而非普通成员变量，防止异步请求较多，导致有的request丢失参数的离奇问题。

定义返回值处理基类

package com.cjia.common.reflect;

import java.util.Map;

import javax.servlet.http.HttpServletRequest;

public abstract class BaseValueReturn {
    public static final String OPT = "operate";
    public static final String TARGET = "target";

    protected Integer moudleCode;
    protected HttpServletRequest request;

    public BaseValueReturn(Integer moudleCode, HttpServletRequest request) {
        super();
        this.moudleCode = moudleCode;
        this.request = request;
    }

    /**
     * 返回操作动作operate和操作目标target
     */
    public abstract Map<String, Object> getRequestInfo();
}

定义返回值处理子类

package com.cjia.common.reflect;

import java.util.HashMap;
import java.util.Map;

import javax.servlet.http.HttpServletRequest;

import com.cjia.common.Operate;

public class DataValueReturn extends BaseValueReturn {

    public DataValueReturn(Integer moudleCode, HttpServletRequest request) {
        super(moudleCode, request);
    }

    @Override
    public Map<String, Object> getRequestInfo() {
        Map<String, Object> info = new HashMap<>();
        info.put(OPT, Operate.FETCH_DATA);
        String menuId = request.getParameter("extension");
        info.put(TARGET, menuId);
        return info;
    }

}
package com.cjia.common.reflect;

import java.util.HashMap;
import java.util.Map;

import javax.servlet.http.HttpServletRequest;

import com.cjia.common.Operate;

public class LoginValueReturn extends BaseValueReturn {

    public LoginValueReturn(Integer moudleCode, HttpServletRequest request) {
        super(moudleCode, request);
    }

    @Override
    public Map<String, Object> getRequestInfo() {
        Map<String, Object> info = new HashMap<>();
        info.put(OPT, Operate.LOGIN);
        String email = request.getParameter("email");
        info.put(TARGET, email);
        return info;
    }

}

定义功能模块类

package com.cjia.common;

import java.util.HashMap;
import java.util.Map;

public class Moudle {
 编程客栈
    public static final int LOGIN = 1;
    public static final int DATA = 2;
    public static final int USER = 3;
    // TODO more moudles

    private static final Map<Integer, String> moudleMap = new HashMap<>();
    static {
        moudleMap.put(Moudle.LOGIN, "登录");
        moudleMap.put(Moudle.DATA, "业务数据");
        moudleMap.put(Moudle.USER, "用户");
    }

    public static String getNameByCode(int code) {
        return moudleMap.get(code);
    }
}

定义操作类

package com.cjia.common;

import java.util.HashMap;
import java.util.Map;

public class Operate {

    public static final int LOGIN = 1;
    // 内部系统获取数据
    public static final int FETCH_DATA = 2;
    public static final int INSERT = 3;
    public static final int DELETE = 4;
    public static final int UPDATE = 5;
    public static final int SEARCH = 6;
    // TODO more opts

    private static final Map<Integer, String> optMap = new HashMap<>();
    static {
        optMap.put(Operate.LOGIN, "登录");
        optMap.put(Operate.FETCH_DATA, "获取业务数据");
        optMap.put(Operate.INSERT, "新增");
        optMap.put(Operate.DELETE, "删除");
        optMap.put(Operate.UPDATE, "修改");
        optMap.put(Operate.SEARCH, "查询");
    }

    public static String getNameByCode(int code) {
        return optMap.get(code);
    }
}

定义审计信息实体类

package com.cjia.model;

public class AuditMessage {

    private int id;
    private int userId;
    private int appId;
    private int moudleCode;
    private int operateType;
    private String ip;
    private String operateTime;
    private String target;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public int getUserId() {
        return userId;
    }

    public void setUserId(int userId) {
        this.userId = userId;
    }

    public int getAppId() {
        return appId;
    }

    public void setAppId(int appId) {
        this.appId = appId;
    }

    public int getMoudleCode() {
        return moudleCode;
    }

    public void setMoudleCode(int moudleCode) {
        this.moudleCode = moudleCode;
    }

    public int getOperateType() {
        return operateType;
    }

    public void setOperateType(int operateType) {
        this.operateType = operateType;
    }

    public String getIp() {
        return ip;
    }

    public void setIp(String ip) {
        this.ip = ip;
    }

    public String getOperateTime() {
        return operateTime;
    }

    public void setOperateTime(String operateTime) {
        this.operateTime = operateTime;
    }

    public String getTarget() {
        return target;
    }

    public void setTarget(String target) {
        this.target = target;
    }

    @Override
    public String toString() {
        return "AuditMessage [id=" + id + ", userId=" + userId + ", appId=" + appId + ", moudleCode=" + moudleCode
                + ", operateType=" + operateType + ", ip=" + ip + ", operateTime=" + operateTime + ", target=" + target
                + "]";
    }

}

书写mapper文件

<?XML version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//myBATis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.cjia.dao.AuditMessageMapper">

    <resultMap id="BaseResultMap" type="com.cjia.model.AuditMessage">
        <result column="id" jdbcType="INTEGER" property="id" />
        <result column="user_id" jdbcType="VARCHAR" property="userId" />
        <result column="app_id" jdbcType="VARCHAR" property="appId" />
        <result column="moudle_code" jdbcType="VARCHAR" property="moudleCode" />
        <result column="operate_type" jdbcType="INTEGER" property="operateType" />
        <result column="ip" jdbcType="VARCHAR" property="ip" />
        <result column="operate_time" jdbcType="INTEGER" property="operateTime" />
        <result column="target" jdbcType="VARCHAR" property="target" />
    </resultMap>

    <!-- 对应的插入字段的名字 -->
    <sql id="keys">
        <trim suffixOverrides=",">
            <if test="id!=null and id!=''">
                id,
            </if>
            <if test="userId!=null and userId!=''">
                user_id,
            </if>
            <if test="appId!=null and appId!=''">
                app_id,
            </if>
            <if test="moudleCode!=null and moudleCode!=''">
                moudle_code,
            </if>
            <if test="operateType!=null and operateType!=''">
                operate_type,
            </if>
            <if test="ip!=null and ip!=''">
                ip,
            </if>
            <if test="operateTime!=null and operateTime!=''">
                operate_time,
            </if>
            <if test="target!=null and target!=''">
                target,
            </if>
        </trim>
    </sql>

    <!-- 对应的插入字段的值 -->
    <sql id="values">
        <trim suffixOverrides=",">
            <if test="id!=null and id!=''">
                #{id},
            </if>
            <if test="userId!=null and userId!=''">
                #{userId},
            </if>
            <if test="appId!=null and appId!=''">
                #{appId},
            </if>
            <if test="moudleCode!=null and moudleCode!=''">
                #{moudleCode},
            </if>
            <if test="operateType!=null and operateType!=''">
                #{operateType},
            </if>
            <if test="ip!=null and ip!=''">
                #{ip},
            </if>
            <if test="operateTime!=null and operateTime!=''">
                #{operateTime},
            </if>
            <if test="target!=null and target!=''">
                #{target},
            </if>
        </trim>
    </sql>
    <insert id="insert" parameterType="com.cjia.model.AuditMessage">
        insert into audit_message(
        <include refid="keys" />
        )
        values(
        <include refid="values" />
        )
    </insert>

    <select id="selectAll" resultMap="BaseResultMap">
        select * from audit_message
    </select>

</mapper>

开启AOP拦截

package com.cjia;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.EnableAspectJAutoProxy;

@SpringBootApplication
@MapperScan("com.cjia.dao")
@EnableAspectJAutoProxy(exposeProxy=true)
public class DataserviceApplication {

    public static void main(String[] args) {
        SpringApplication.run(DataserviceApplication.class, args);
    }

}

或在配置文件中：

<!-- 开启AOP拦截 -->
<aop:aspectj-autoproxy proxy-target-class="true" />
<mvc:annotation-driven />
<!-- 定义Spring描述Bean的范围，使切面类AuditAop可以被扫描到  -->
<context:component-scan base-package="**.common" >
    <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
</context:component-scan>

注解配置

package com.cjia.controller;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.stream.Collectors;

import javax.servlet.http.HttpServletRequest;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import com.alibaba.fastjson.JSON;
import com.cjia.common.InnerApp;
import com.cjia.common.Moudle;
import com.cjia.common.ResConstance.UserGroup;
import com.cjia.common.annotation.Audit;
import com.cjia.common.reflect.LoginValueReturn;
import com.cjia.model.Menu;
import com.cjia.model.ResponseContent;
import com.cjia.model.User;
import com.cjia.service.MenuService;
import com.cjia.service.UserService;
import com.cjia.utils.DigestUtil;

/**
 * 处理内部系统登录信息验证
 */
@Controller
public class LoginController {

    private static final Logger LOGGER = LoggerFactory.getLogger(LoginController.class);

    @Autowired
    private UserService userService;

    @Autowired
    private MenuService menuService;

    /**
     * 处理登录页表单提交信息
     */
    @ResponseBody
    @PostMapping("/doLogin")
    @Audit(moudleCode = Moudle.LOGIN, extension = LoginValueReturn.class)
    public ResponseContent doLogin(HttpServletRequest req) throws Exception {
        String email = req.getParameter("email");
        String password = req.getParameter("password");
        int appId = Integer.valueOf(req.getParameter("appId"));
        // 获取到的这么多user（同一账户）只是role或门店不同，密码等其他都一致
        List<User> users = new ArrayList<>();
        // 对SRP报表系统不允许管家登录
        if (appId == InnerApp.CIS) {
            users = userService.selectByEmail4CIS(email);
        } else {
            users = userService.selectByEmail(email);
        }
        ResponseContent responseContent = new ResponseContent();
        if (users != null && !users.isEmpty()
                && users.get(0).getPassword().equals(DigestUtil.threeHash(password, users.get(0).getSecurityKey()))) {
            User user = users.get(0);
            LOGGER.debug("登陆验证成功{}", user);
            // 设置roleIdLst和branchMap
            List<Integer> roleIdLst = users.stream().map(User::getRoleId).collect(Collectors.toList());
            Map<String, String> branchMap = new HashMap<>();
            Map<Integer, List<Menu>> menuMap = getAllMenus(users);
            for (User u : users) {
                branchMap.put(u.getBranchId() + "", u.getBranchName());
            }
            user.setRoleIdLst(roleIdLst);
            user.setBranchMap(branchMap);
            // 给user设置菜单列表
            user.setMenuMap(menuMap);
            // 登陆成功后，需要看此用户的信息是否存在于redis，存在则刷新过期时间，不存在则插入记录
            String msgKey = userService.insertIntoRedis(user);
            responseContent.setRespCode(ResponseContent.RESPCODE_SUCCESS);
            responseContent.setMessage("登陆成功");
            responseContent.setData(msgKey);
        } else {
            LOGGER.debug("登陆验证失败");
            responseContent.setRespCode(ResponseContent.RESPCODE_FAILURE);
            responseContent.setMessage("登陆失败，请检查用户账号密码是否正确");
        }
        String jsonString = JSON.toJSONString(responseContent);
        LOGGER.debug("登录返回信息:{}", jsonString);
        return responseContent;
    }
}

总结

以上为个人经验，希望能给大家一个参考，也希望大家多多支持我们。

0

上一篇:

:下一篇

更多 开发 相关资讯：

精彩评论

暂无评论...
登录 注册
Qedev.com
验证码 换一张
取 消

关注公众号

热门标签

图文推荐

mysql字符集引起的java.sql.SQLException:Incorrect string value:问题

mysql字符集引起的java.sql.SQLException:Incorrect string value:问题
解决Feign异步调用丢失上下文问题

解决Feign异步调用丢失上下文问题
一文教会你使用Python来下一场雪

一文教会你使用Python来下一场雪
利用python调整Excel行高和列宽的操作示例

利用python调整Excel行高和列宽的操作示例
Python字符串检索方式

Python字符串检索方式
Android中常见内存泄漏的场景和解决方案详解

Android中常见内存泄漏的场景和解决方案详解
python解析网页上的json数据并保存到EXCEL

python解析网页上的json数据并保存到EXCEL
使用wxPython创建一个文件夹结构生成器

使用wxPython创建一个文件夹结构生成器

开发者开发者网给大家分享系统运维,大数据运维,云计算,编程开发技巧,路由交换,运维和开发相关的资讯及技术文章，同时StackOverflow中文社区，知识经验交流分享。

法律声明：本站内容均为网友上传，网站举办方负责审核和监督，如存在版权或非法内容，欢迎举报，我们将尽快予以删除。邮箱：devze@qq.com

Copyright © 2018-2020 开发者. All rights reserved. Powered by 开发者ICP备案号: 京ICP备10032868号-9
