MyBatis-Flex+ShardingSphere-JDBC多数据源分库分表实现

开发者 https://www.devze.com 2024-10-29 14:40 出处：网络 作者： 墨辰李
目录1、目的2、实现2-1、导入MyBATis-Flex和ShardingSphere-JDBC的相关依赖2-2、配置初始化的数据库连接用来加载配置，当然用配置中心来保存初始化数据的配置2-3、初始化数据源进行配置查询2-4、初始化ShardingDataS
相关专题：MyBatis-Flex ShardingSphere-JDBC 分库分表MyBatis-Flex 分库分表
目录
  • 1、目的
  • 2、实现
    • 2-1、导入MyBATis-Flex和ShardingSphere-JDBC的相关依赖
    • 2-2、配置初始化的数据库连接用来加载配置，当然用配置中心来保存初始化数据的配置
    • 2-3、初始化数据源进行配置查询
    • 2-4、初始化ShardingDataSource数据源实现分库分表
    • 2-5、两个数据库连接server-order0和server-order1的表结构如下：分别在两个库当中运行
    • 2-6、实体这个@Table(“t_order”)是逻辑表名ShardingConfig分库策略时设置的
    • 2-7、mapper
  • 3、测试
    • 3-1、测试分库分表的新增

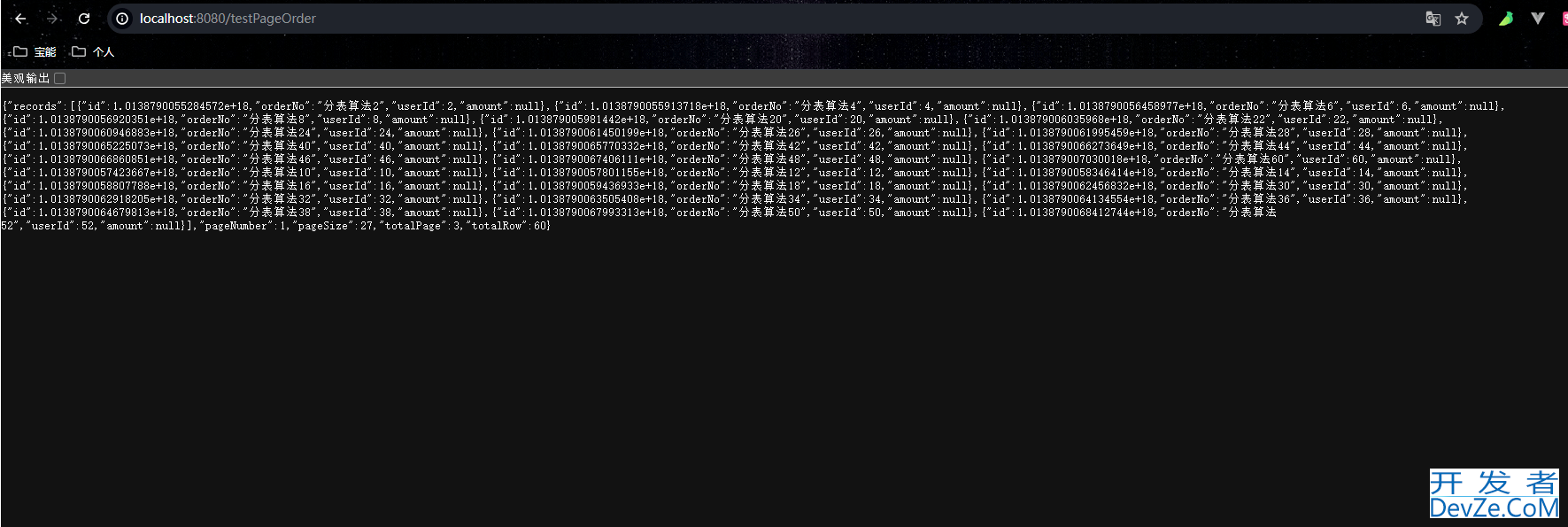

    • 3-2、测试分页查询：

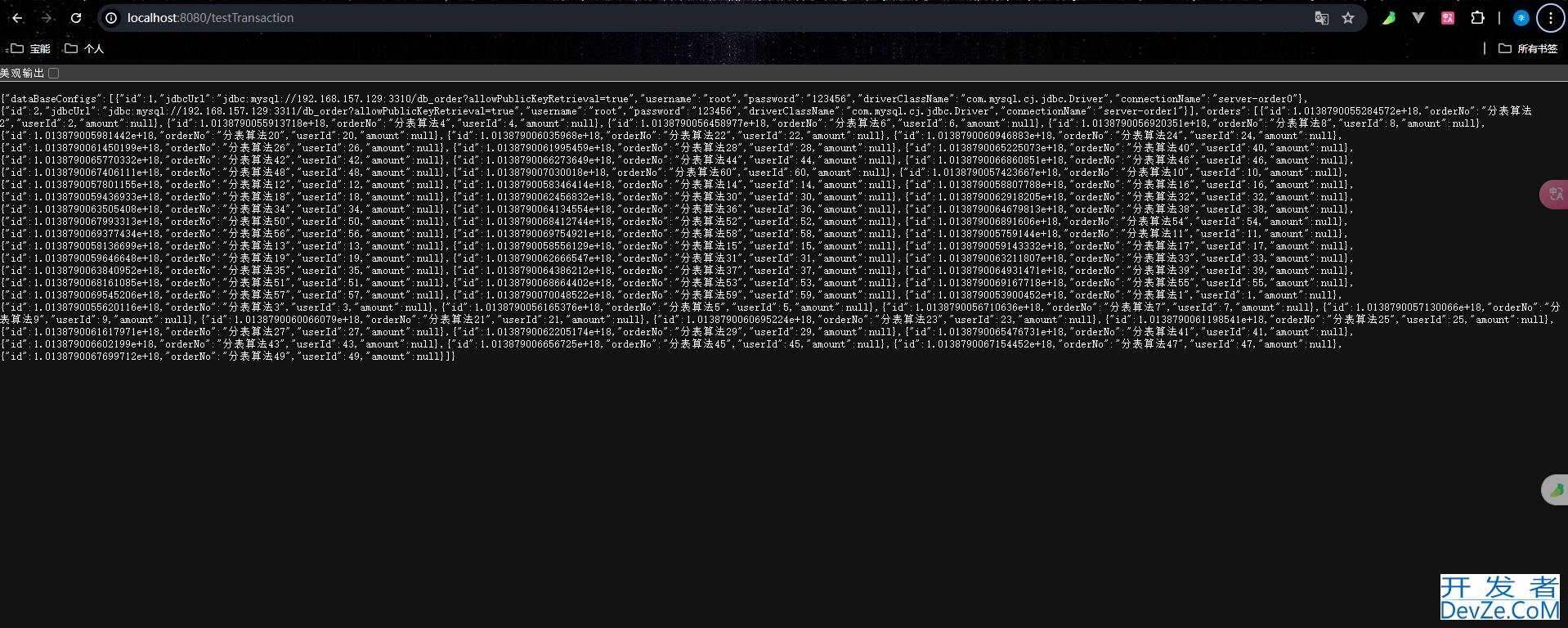

    • 3-3、测试事务问题

1、目的

用于动态配置ShardingSphere-JDBC实现配置化分库分表

2、实现

2-1、导入MyBatis-Flex和ShardingSphere-JDBC的相关依赖

        <dependency>
            <groupId>com.mybatis-flex</groupId>
            <artifactId>mybatis-flex-spring-boot-starter</artifactId>
            <version>1.9.3</version>
        </dependency>
        <dependency>
            <groupId>org.apache.shardingsphere</groupId>
            <artifactId>shardingsphere-jdbc-core-spring-boot-starter</artifactId>
            <version>5.1.1</version>
        </dependency>

2-2、配置初始化的数据库连接用来加载配置，当然用配置中心来保存初始化数据的配置

spring.datasource.ds1.jdbc-url=jdbc:mysql://localhost/test?allowpublicKeyRetrieval=true
spring.datasource.ds1.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.ds1.username=root
spring.datasource.ds1.password=123456
spring.datasource.ds1.type=com.zaxxer.hikari.HikariDataSource

2-3、初始化数据源进行配置查询

初始化数据源配置类：

package com.mochenli.shardingshere.config;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.jdbc.DataSourceBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import Javax.sql.DataSource;

/**
 * @author: MoChenLi
 * @description:
 * @createTime: 2024-06-27 21:23
 */
@Configuration
public class DataSourceConfig {
    /**
     * 根据配置文件构建数据源
     * @return
     */
    @Bean
    @ConfigurationProperties(prefix = "spring.datasource.ds1")
    public DataSource dataSourceOne(){
      return DataSourceBuilder.create().build();
    }

}

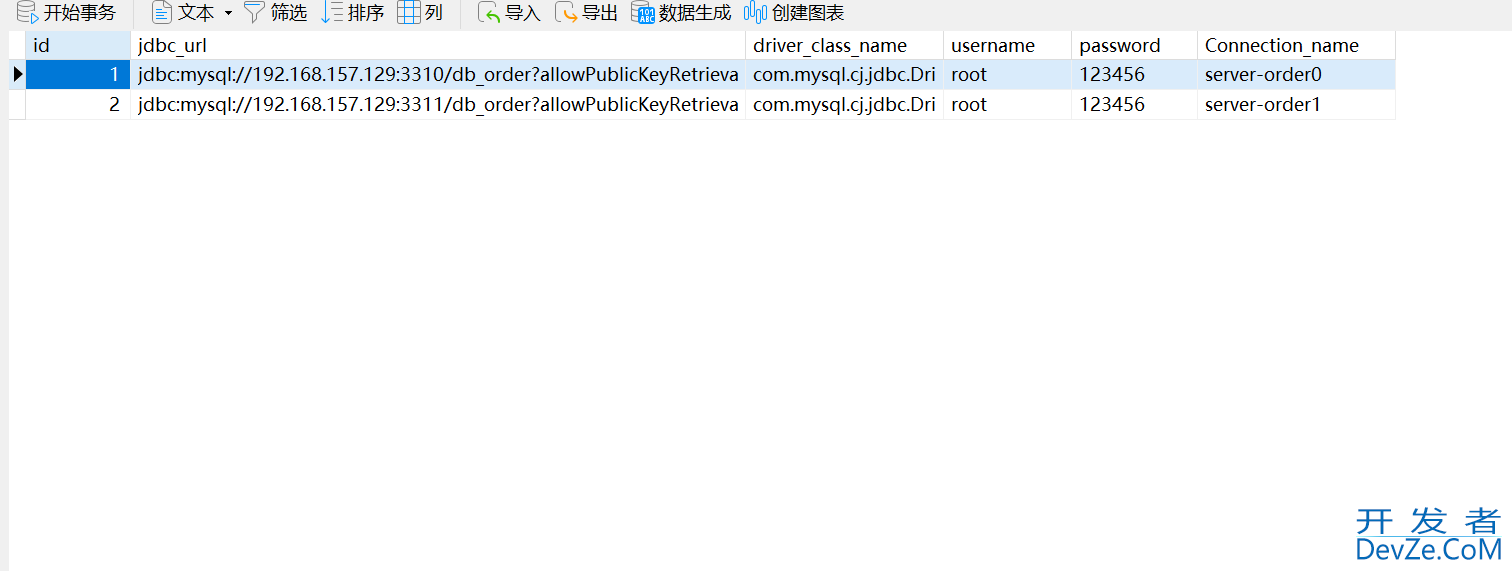

数据配置表以及数据

/*
 Navicat Premium Data Transfer

 Source Server         : localhost
 Source Server Type    : MySQL
 Source Server Version : 80034 (8.0.34)
 Source Host           : localhost:3306
 Source Schema         : test

 Target Server Type    : MySQL
 Target Server Version : 80034 (8.0.34)
 File Encoding         : 65001

 Date: 29/06/2024 17:52:36
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for databaseconfig
-- ----------------------------
DROP TABLE IF EXISTS `databasecon编程客栈fig`;
CREATE TABLE `databaseconfig`  (
  `id` int NOT NULL AUTO_INCREMENT COMMENT '主键唯一标识',
  `jdbc_url` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '数据库连接',
  `driver_class_name` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '数据库连接驱动',
  `username` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '数据库连接用户名',
  `password` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '数据库连接密码',
  `Connection_name` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '数据库连接名称',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of databaseconfig
-- ----------------------------
INSERT INTO `databaseconfig` VALUES (1, 'jdbc:mysql://192.168.157.129:3310/db_order?allowPublicKeyRetrieval=true', 'com.mysql.cj.jdbc.Driver', 'root', '123456', 'server-order0');
INSERT INTO `databaseconfig` VALUES (2, 'jdbc:mysql://192.168.157.129:3311/db_order?allowPublicKeyRetrieval=true', 'com.mysql.cj.jdbc.Driver', 'root', '123456', 'server-order1');

SET FOREIGN_KEY_CHECKS = 1;

数据库配置对象类

package com.mochenli.shardingshere.entity;
import com.mybatisflex.annotation.Id;
import com.mybatisflex.annotation.KeyType;
import com.mybatisflex.annotation.Table;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
/**
 * @author: MoChenLi
 * @description:
 * @createTime: 2024-06-29 17:28
 */
@Data
@NoArgsConstructor
@AllArgsConstructor
@Table("DataBaseConfig")
public class DataBaseConfig {

    @Id(keyType = KeyType.Auto)
    private Integer id;

    private String jdbcUrl;

    private String username;

    private String password;

    private String driverClassName;

    private String connectionName;
}

mapper类

package com.mochenli.shardingshere.mapper;
import com.mochenli.shardingshere.entity.DataBaseConfig;
import com.mybatisflex.core.BaseMapper;
import org.apache.ibatis.annotations.Mapper;
/**
 * @author: MoChenLi
 * @description:
 * @createTime: 2024-06-29 17:31
 */
@Mapper
public interface DataBaseConfigMapper extends BaseMapper<DataBaseConfig> {
}

2-4、初始化ShardingDataSource数据源实现分库分表

分片算法可查看链接

package com.mochenli.shardingshere.config;
import com.mochenli.shardingshere.entity.DataBaseConfig;
import com.mochenli.shardingshere.mapper.DataBaseConfigMapper;
import com.mybatisflex.core.FlexGlobalConfig;
import com.mybatisflex.core.datasource.FlexDataSource;
import com.zaxxer.hikari.HikariDataSource;
import org.apache.shardingsphere.driver.api.ShardingSphereDataSourceFactory;
import org.apache.shardingsphere.infra.config.algorithm.ShardingSphereAlgorithmConfiguration;
import org.apache.shardingsphere.infra.config.mode.ModeConfiguration;
import org.apache.shardingsphere.sharding.api.config.ShardingRuleConfiguration;
import org.apache.shardingsphere.sharding.api.config.rule.ShardingTableRuleConfiguration;
import org.apache.shardingsphere.sharding.api.config.strategy.keygen.KeyGenerateStrategyConfiguration;
import org.apache.shardingsphere.sharding.api.config.strategy.sharding.ShardingStrategyConfiguration;
import org.apache.shardingsphere.sharding.api.config.strategy.sharding.StandardShardingStrategyConfiguration;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import javax.sql.DataSource;
import java.sql.SQLException;
import java.util.*;
/**
 * @author: MoChenLi
 * @description:
 * @createTime: 2024-06-19 13:53
 */
@Configuration
public class ShardingConfig {

     private DataBaseConfigMapper dataBaseConfigMapper;

    public ShardingConfig(DataBaseConfigMapper dataBaseConfigMapper) throws SQLException {
        this.dataBaseConfigMapper = dataBaseConfigMapper;
        FlexDataSource flexDataSource = FlexGlobalConfig.getDefaultConfig()
                .getDataSource();
        flexDataSource.addDataSource("getShardingDataSource",getShardingDataSource());
    }
    /**
     * 配置shardingsphere的内存模式
     * @return
     */
    @Bean
    public ModeConfiguration getModeConfiguration() {
        ModeConfiguration modeConfiguration = new ModeConfiguration("Memory", null, false);
        return modeConfiguration;
    }
    /**
     * 构建ShardingDataSource数据源
     * @return
     * @throws SQLException
     */
    public DataSource getShardingDataSource() throws SQLException {
        //查询数据库的数据连接配置设置到dataSourceMap当中
        Map<String, DataSource> dataSourceMap = new HashMap<>();
        List<DataBaseConfig> dataBaseConfigs = dataBaseConfigMapper.selectAll();
        for (DataBaseConfig dataBaseConfig : dataBaseConfigs) {
            DataSource dataSource = createDataSource(dataBaseConfig);
            dataSourceMap.put(dataBaseConfig.getConnectionName(), dataSource);
        }
        //以下分片配置的规则也可持久化从数据库查询出来进行配置 此处用于演示所需即静态配置
        // 配置分片规则
        ShardingRuleConfiguration shardingRuleConfig = new ShardingRuleConfiguration();
        //算法相关配置
        Map<String, ShardingSphereAlgorithmConfiguration> shardingSphereAlgorithmConfigurations = new HashMap<>();
        Properties properties = new Properties();
        properties.put("algorithm-expression","server-order$->{user_id % 2}");
        ShardingSphereAlgorithmConfiguration shardingSphereAlgorithmConfiguration =  new ShardingSphereAlgorithmConfiguration("INLINE",properties);
        Properties properties1 = new Properties();
        properties1.put("sharding-count","2");
        ShardingSphereAlgorithmConfiguration shardingSphereAlgorithmConfiguration1 =  new ShardingSphereAlgorithmConfiguration("MOD",properties1);
        Properties properties2 = new Properties();
        properties2.put("sharding-count","2");
        ShardingSphereAlgorithmConfiguration shardingSphereAlgorithmConfiguration2 =  new ShardingSphereAlgorithmConfiguration("HASH_MOD",properties2);
        shardingSphereAlgorithmConfigurations.put("alg_inline_userid",shardingSphereAlgorithmConfiguration);
        shardingSphereAlgorithmConfigurations.put("alg_mod",shardingSphereAlgorithmConfiguration1);
        shardingSphereAlgorithmConfigurations.put("alg_hash_mod",shardingSphereAlgorithmConfiguration2);
        shardingRuleConfig.setShardingAlgorithms(shardingSphereAlgorithmConfigurations);
        //分库分表策略配置
        Collection<ShardingTableRuleConfiguration> shardingTableRuleConfigurations = new ArrayList<>();
        //分库策略
        ShardingTableRuleConfiguration shardingTableRuleConfiguration = new ShardingTableRuleConfiguration("t_order","server-order$->{0..1}.t_order$->{0..1}");
        ShardingStrategyConfiguration shardingStrategyConfiguration = new StandardShardingStrategyConfiguration("user_id","alg_mod");
        shardingTableRuleConfiguration.setDatabaseShardingStrategy(shardingStrategyConfiguration);
        //分表策略
        ShardingStrategyConfiguration shardingStrategyConfigurationtable = new StandardShardingStrategyConfiguration("order_no","alg_hash_mod");
        shardingTableRuleConfiguration.setTableShardingStrategy(shardingStrategyConfigurationtable);
        shardingTableRuleConfigurations.add(shardingTableRuleConfiguration);
        shardingRuleConfig.setTables(shardingTableRuleConfigurations);
        //配置主键算法生成策略
        Map<String, ShardingSphereAlgorithmConfiguration> keyGenerators = new HashMap<>();
        ShardingSphereAlgorithmConfiguration shardingSphereAlgorithmConfigurationsk =  new ShardingSphereAlgorithmConfiguration("SNOWFLAKE",null);
        keyGenerators.put("alg_snowflake",shardingSphereAlgorithmConfigurationsk);
        shardingRuleConfig.setKeyGenerators(keyGenerators);
        //分布式id
        KeyGenerateStrategyConfiguration keyGenerateStrategyConfiguration =new KeyGenerateStrategyConfiguration("id","alg_snowflake");
        shardingTableRuleConfiguration.setKeyGenerateStrategy(keyGenerateStrategyConfiguration);
        //属性设置运行sql打印显示
        Properties properties3 = new Properties();
        properties3.put("sql-show",true);
        // 创建ShardingDataSource
        DataSource dataSources = ShardingSphereDataSourceFactory.createDataSource(dataSourceMap, Collections.singleton(shardingRuleConfig),properties3 );
        return dataSources;
    }
    /**
     * 创建数据源连接
     * @param dataBaseConfig
     * @return
     */
    public static DataSource createDataSource(DataBaseConfig dataBaseConfig)  {
        // 创建数据源，这里需要根据实际情况创建，例如使用HikariCP、Druid等连接池
        HikariDataSource dataSource = new HikariDataSource();
        dataSource.setDriverClassName(dataBaseConfig.getDriverClassName());
        dataSource.setJdbcUrl(dataBaseConfig.getJdbcUrl());
        dataSource.setUsername(dataBaseConfig.getUsername());
        dataSource.setPassword(dataBaseConfig.getPassword());
        //不使用连接池
        //DriverManagerDataSource dataSource1 = new DriverManagerDataSource();
        //dataSource1.setDriverClassName(dataBaseConfig.getDriverClassName());
        //dataSource1.setUrl(dataBaseConfig.getJdbcUrl());
        //dataSource1.setUsername(dataBaseConfig.getUsername());
        //dataSource1.setPassword(dataBaseConfig.getPassword());
        return dataSource;
    }
}

2-5、两个数据库连接server-order0和server-order1的表结构如下：分别在两个库当中运行

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for t_order0
-- ----------------------------
DROP TABLE IF EXISTS `t_order0`;
CREATE TABLE `t_order0`  (
  `id` bigint NOT NULL,
  `order_no` varchar(30) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `user_id` bigint NULL DEFAULT NULL,
  `apythonmount` decimal(10, 2) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;


-- ----------------------------
-- Table structure for t_order1
-- ----------------------------
DROP TABLE IF EXISTS `t_order1`;
CREATE TABLE `t_order1`  (
  `id` bigint NOT NULL,
  `order_no` varchar(30) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,
  `user_id` bigint NULL DEFAULT NULL,
  `amount` decimal(10, 2) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

2-6、实体这个@Table(“t_order”)是逻辑表名ShardingConfig分库策略时设置的

package com.mochenli.shardingshere.entity;
import com.mybatisflex.annotation.Id;
import com.mybatisflex.annotation.KeyType;
import com.mybatisflex.annotation.Table;
import lombok.Data;
import java.math.BigDecimal;
/**
 * @author: MoChenLi
 * @description:
 * @createTime: 2024-06-18 17:15
 */
@Table("t_order")
@Data
public class Order {
    @Id(keyType = KeyType.Auto)
    private Long id;
    private String orderNo;
    private Long userId;
    private BigDecimal amount;
}

2-7、mapper

package com.mochenli.shardingshere.mapper;
import com.mochenli.shardingshere.entity.Order;
import com.mybatisflex.core.BaseMapper;
import org.apache.ibatis.annotations.Mapper;
/**
 * @author: MoChenLi
 * @description:
 * @createTime: 2024-06-18 17:18
 */
@Mapper
public interface OrderMapper extends BaseMapper<Order> {
}

3、测试

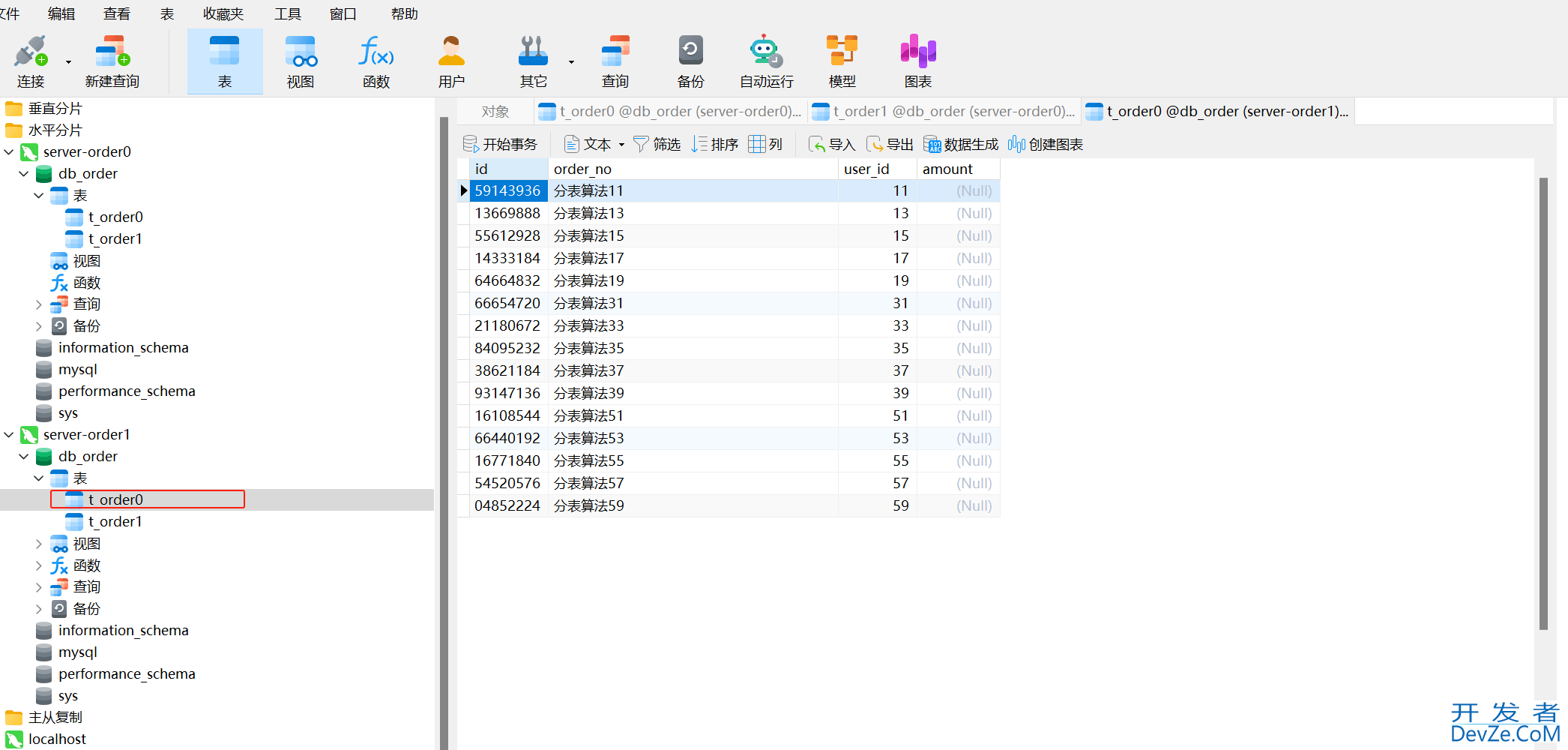

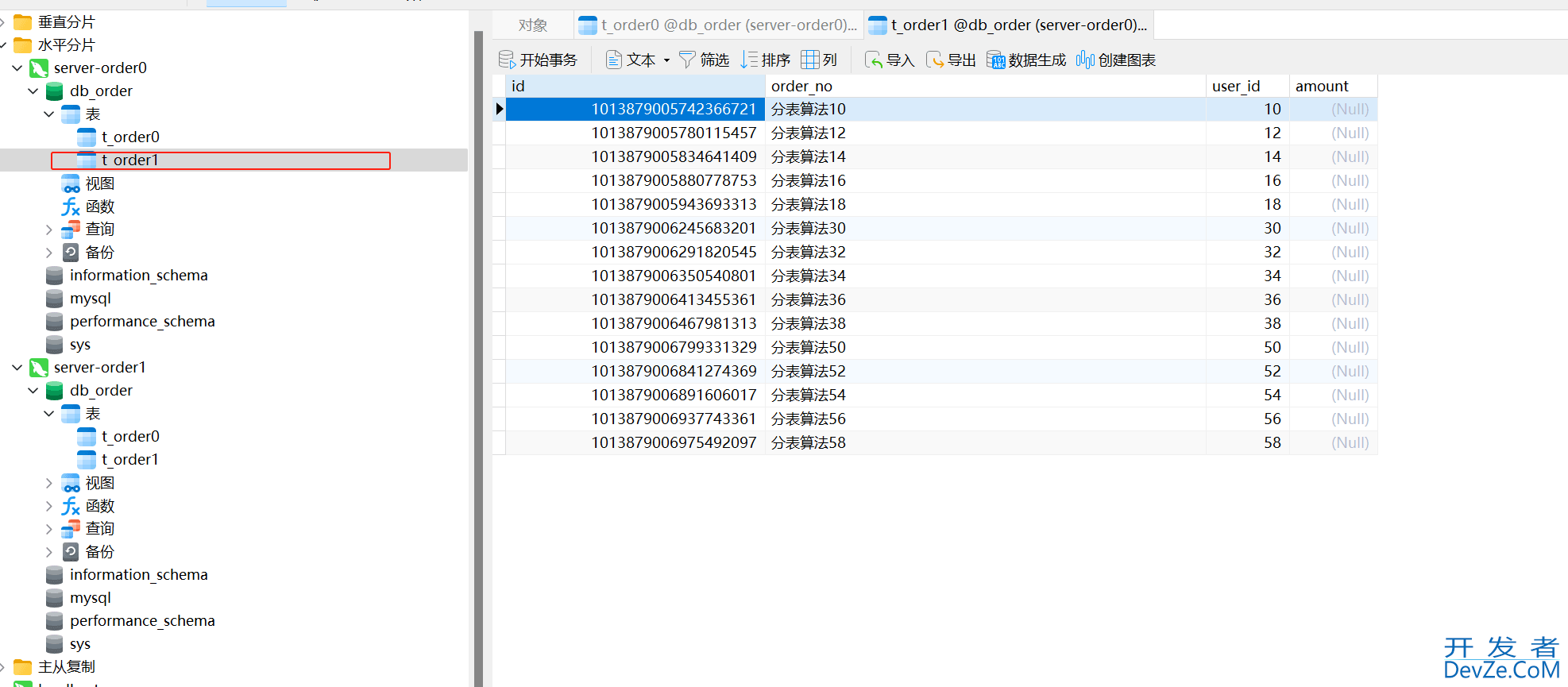

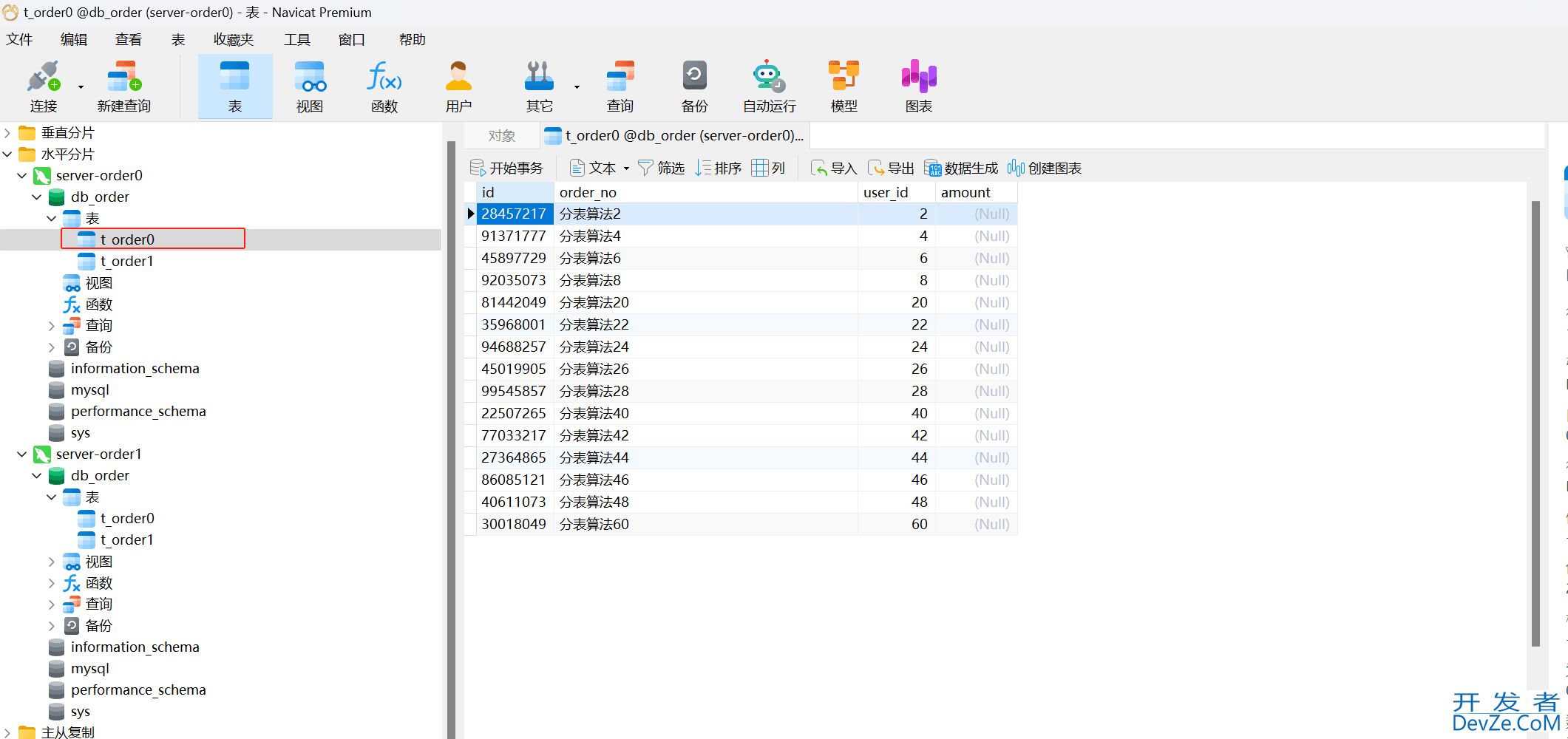

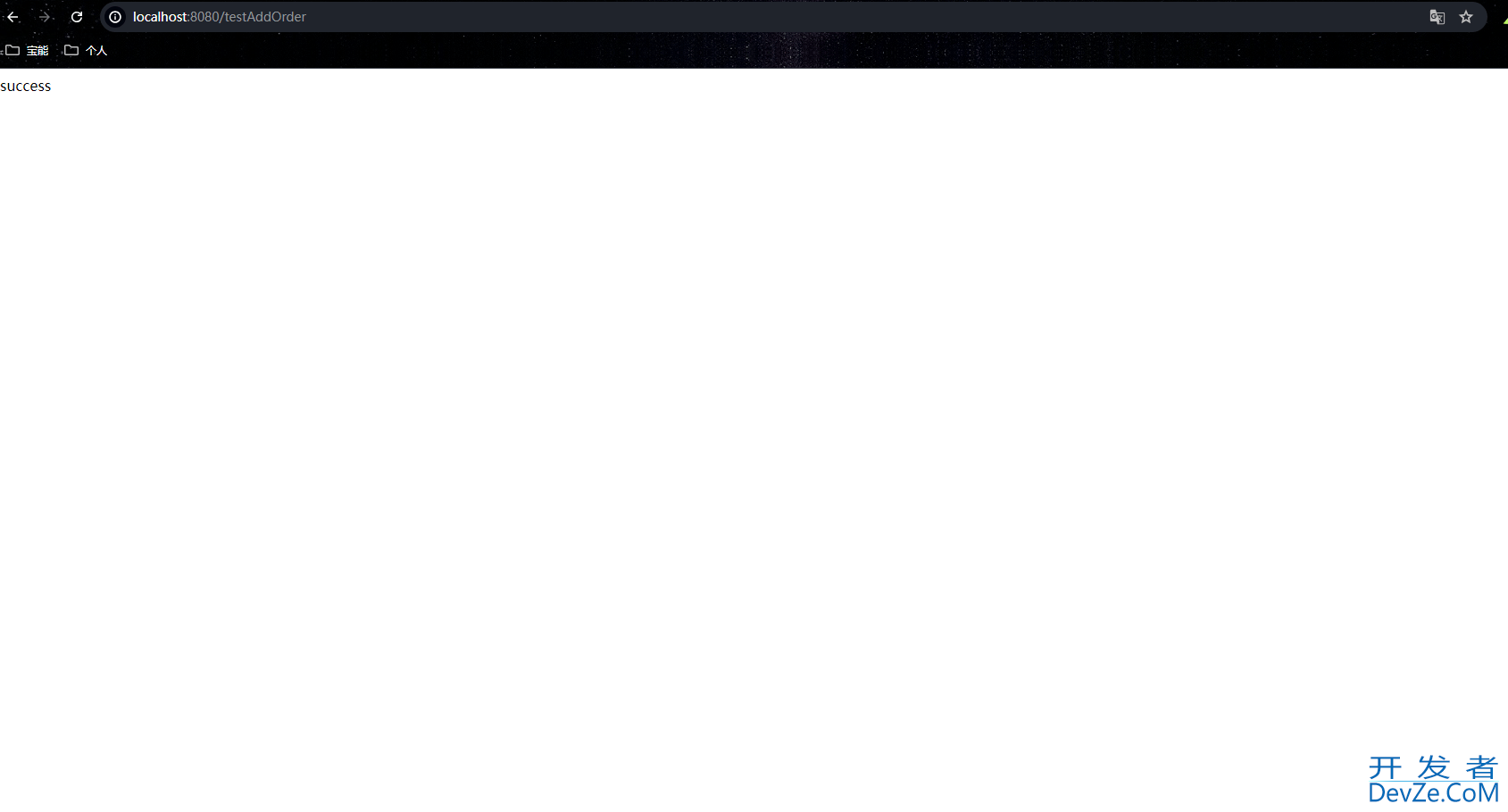

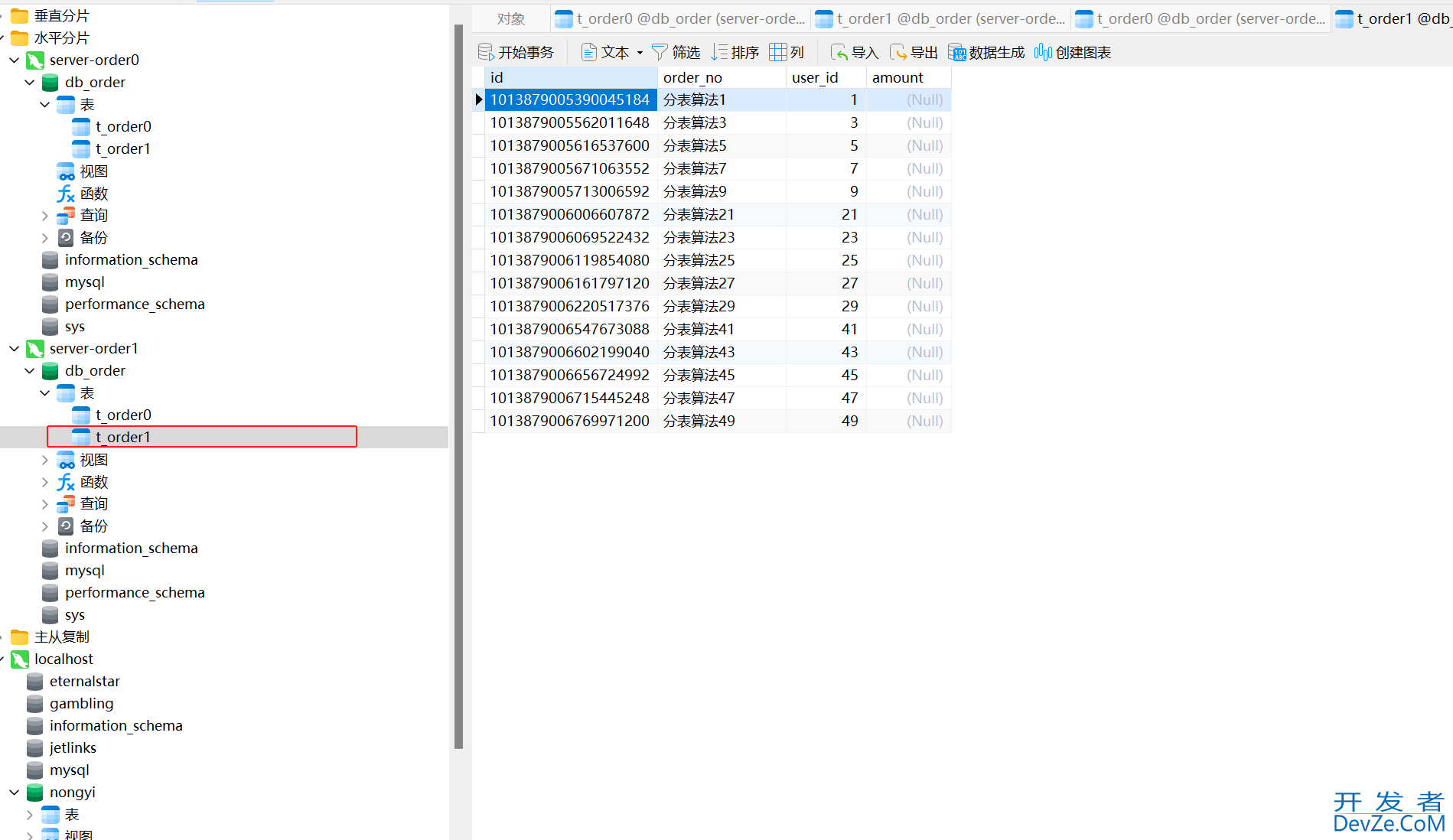

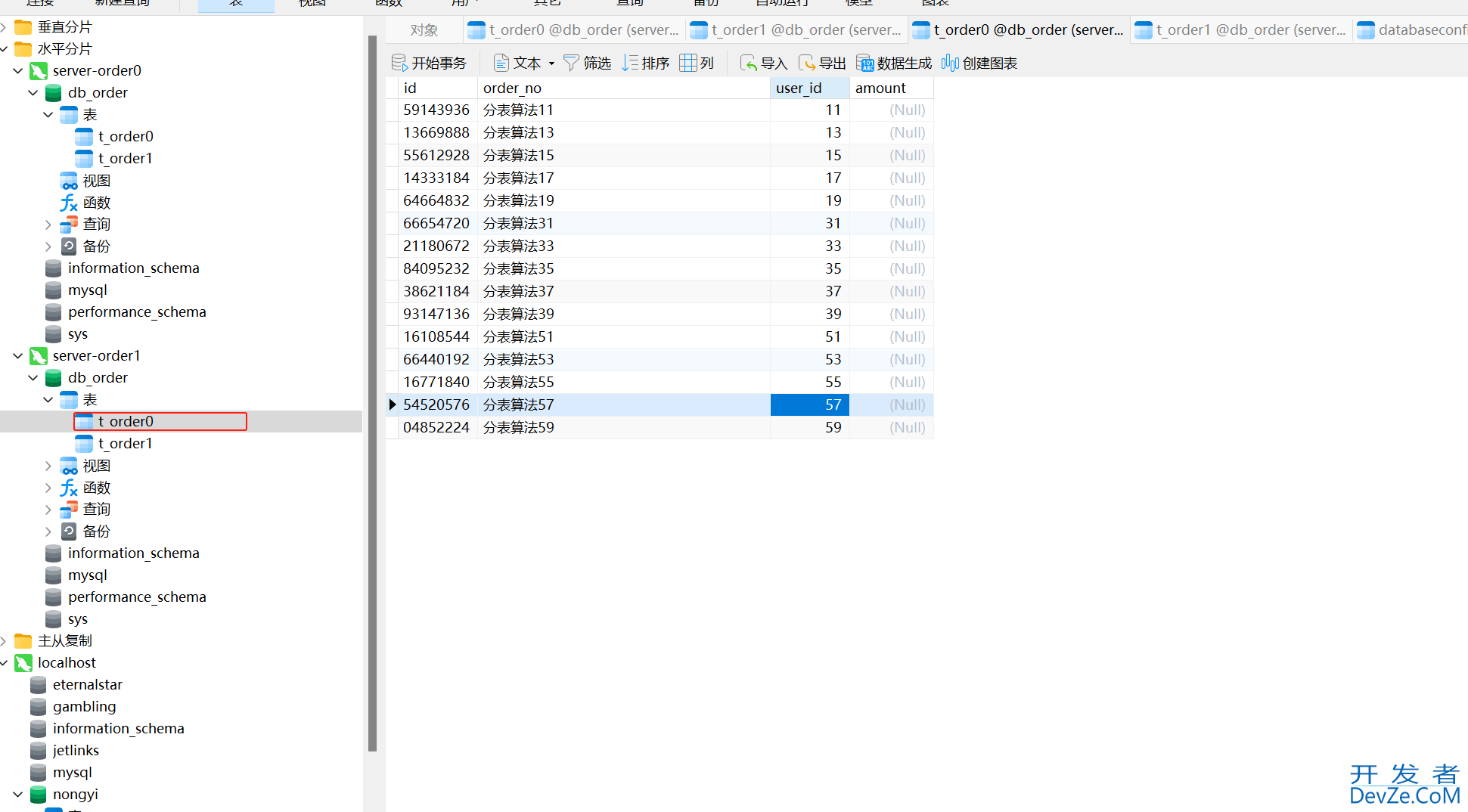

3-1、测试分库分表的新增

package com.mochenli.shardingshere.controller;

import com.mochenli.shardingshere.entity.Order;
import com.mochenli.shardingshere.mapper.OrderMapper;
import com.mybatisflex.core.datasource.DataSourceKey;
import lombok.AllArgsConstructor;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author: MoChenLi
 * @description:
 * @createTime: 2024-06-29 18:11
 */
@RestController
@AllArgsConstructor
public class TestController {
   private final   OrderMapper orderMapper;
    /**
     * id是用分布式id雪花算法 所以不填
     * 测试新增   因为前面配置是根据user_id进行分库 分库算法是:取模分片，算法类型：MOD  分片数量是 2
     * 分表算法是根据 order_no 进行分表  分表算法是 哈希取模分片算法，类型：HASH_MOD  分片数量是 2
     */
    @GetMapping("/testAddOrder")
    public String addTOrder(){
        //切换数据源 使用ShardingDataSource数据源
        DataSourceKey.use("getShardingDataSource");
        //进行分库分表插入
        for (int i = 1; i <=60; i++) {
            Order order = new Order();
            order.setUserId(Long.valueOf(i));
            order.setOrderNo("分表算法"+i);
            orderMapper.insert(order);
        }
        return "success";
    }
}

结果如下所示：

MyBatis-Flex+ShardingSphere-JDBC多数据源分库分表实现

server_order0.t_order0

MyBatis-Flex+ShardingSphere-JDBC多数据源分库分表实现

server_order0.t_order1

MyBatis-Flex+ShardingSphere-JDBC多数据源分库分表实现

server_order1.t_order0

MyBatis-Flex+ShardingSphere-JDBC多数据源分库分表实现

server_order1.t_order1

MyBatis-Flex+ShardingSphere-JDBC多数据源分库分表实现

3-2、测试分页查询：

package com.mochenli.shardingshere.controller;

import com.mochenli.shardingshere.entity.Order;
import com.mochenli.shardingshere.mapper.OrderMapper;
import com.mybatisflex.core.datasource.DataSourceKey;
import com.mybatisflex.core.paginate.Page;
import com.mybatisflex.core.query.QueryWrapper;
import lombok.AllArgsConstructor;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author: MoChenLi
 * @description:
 * @createTime: 2024-06-29 18:11
 */
@RestController
@AllArgsConstructor
public class TestController {
   privwww.devze.comate final   OrderMapper orderMapper;

      /**
     * 测试分页查询
     * @return
     */
    @GetMapping("/testPageOrder")
    public Page<Order> getPage(){
        //切换数据源 使用ShardingDataSource数据源
        DataSourceKey.use("getShardingDataSource");
        //进行分页查询
        Page<Order> page = new Page<>();
        page.setPageNumber(1);
        page.setPageSize(27);
        Page<Order> paginate = orderMapper.paginate(page, new QueryWrapper());
        return paginate;


}

结果如下:

MyBatis-Flex+ShardingSphere-JDBC多数据源分库分表实现

3-3、测试事务问题

1、正常情况

package com.mochenli.shardingshere.controller;

import com.mochenli.shardingshere.entity.DataBaseConfig;
import com.mochenli.shardingshere.entity.Order;
import com.mochenli.shardingshere.mapper.DataBaseConfigMapper;
import com.mochenli.shardingshere.mapper.OrderMapper;
import com.mybatisflex.core.datasource.DataSourceKey;
import com.mybatisflex.core.paginate.Page;
import com.mybatisflex.core.query.QueryWrapper;
import lombok.AllArgsConstructor;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @author: MoChenLi
 * @description:
 * @createTime: 2024-06-29 18:11
 */
@RestController
@AllArgsConstructor
public class TestController {
   private final   OrderMapper orderMapper;
   private  final DataBaseConfigMapper dataBaseConfigMapper;

    /**
     * 测试事务问题
     * 正常情况
     */
    @GetMapping("/testTransaction")
    public Map<String,Object> testTransaction(){
        Map<String,Object> map = new HashMap<>();
        List<DataBaseConfig> dataBaseConfigs = dataBaseConfigMapper.selectAll();
        map.put("dataBaseConfigs",dataBaseConfigs);
        DataSourceKey.clear();//清除数据源
        //切换数据源 使用ShardingDataSource数据源
        DataSourceKey.use("getShardingDataSource");
        List<Order> orders = orderMapper.selectAll();
        map.put("orders",orders);
        return map;
    }

}

结果：

MyBatis-Flex+ShardingSphere-JDBC多数据源分库分表实现

2、出错进行事务回滚情况一

package com.mochenli.shardingshere.controller;

import com.mochenli.shardingshere.entity.DataBaseConfig;
import com.mochenli.shardingshere.entity.Order;
import com.mochenli.shardingshere.mapper.DataBaseConfigMapper;
import com.mochenli.shardingshere.mapper.OrderMapper;
import com.mybatisflex.core.datasource.DataSourceKey;
import com.mybatisflex.core.paginate.Page;
import com.mybatisflex.core.query.QueryWrapper;
import lombok.AllArgsConstructor;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @author: MoChenLi
 * @description:
 * @createTime: 2024-06-29 18:11
 */
@RestController
@AllArgsConstructor
public class TestController {
    private final OrderMapper orderMapper;
    private final DataBaseConfigMapper dataBaseConfigMapper;
    /**
     * 测试事务问题
     * 报错情况一  不分库的数据源报错  回滚
     */
    @GetMapping("/testTransactionError")
    @Transactional
    public void testTransactionError() {
        DataBaseConfig dataBaseConfig = new DataBaseConfig();
        dataBaseConfig.setConnectionName("连接名称");
        dataBaseConfig.setJdbcUrl("连接字符串");
        dataBaseConfig.setUsername("用户名");
        dataBaseConfig.setPassword("密码");
        dataBaseConfig.setDriverClassName("驱动");
        //进行新增
        dataBaseConfigMapper.insert(dataBaseConfig);
        //模拟报错
        int i = 10 / 0;
        DataSourceKey.clear();//清除数据源
        //切换数据源 使用ShardingDataSource数据源
        DataSourceKey.use("getShardingDataSource");
        List<Order> orders = orderMapper.selectAll();
    }

}

MyBatis-Flex+ShardingSphere-JDBC多数据源分库分表实现

MyBatis-Flex+ShardingSphere-JDBC多数据源分库分表实现

3、出错进行事务回滚情况二

package com.mochenli.shardingshere.controller;

import com.mochenli.shardingshere.entity.DataBaseConfig;
import com.mochenli.shardingshere.entity.Order;
import com.mochenli.shardingshere.mapper.DataBaseConfigMapper;
import com.mochenli.shardingshere.mapper.OrderMapper;
import com.mybatisflex.core.datasource.DataSourceKey;
import com.mybatisflex.core.paginate.Page;
import com.mybatisflex.core.query.QueryWrapper;
import androidlombok.AllArgsConsandroidtructor;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @author: MoChenLi
 * @description:
 * @createTime: 2024-06-29 18:11
 */
@RestController
@AllArgsConstructor
public class TestController {
    private final OrderMapper orderMapper;
    private final DataBaseConfigMapper dataBaseConfigMapper;

    /**
     * 测试事务问题
     * 报错情况二  分库分表的数据源报错  回滚
     */
    @GetMapping("/testTransactionError1")
    @Transactional
    public void testTransactionError1() {
        //切换数据源 使用ShardingDataSource数据源
        DataSourceKey.use("getShardingDataSource");
        for (int i = 1; i <= 5; i++) {
            Order order = new Order();
            //不出错 1%2=1应该在server_order1库当中
            order.setUserId(1L);
           //不出错  "事务回滚测试".hashCode() % 2 = 0 应该在 t_order0表当中;
            order.setOrderNo("事务回滚测试");
            orderMapper.insert(order);
        }
        //模拟报错
        int k = 10 / 0;
        DataSourceKey.clear();//清除数据源
        List<DataBaseConfig> dataBaseConfigs = dataBaseConfigMapper.selectAll();
    }

}

结果回滚了

MyBatis-Flex+ShardingSphere-JDBC多数据源分库分表实现

补充：mybatis-plus不支持多数据源切换，得自己实现，且还得自己进行自定义事务增强

到此这篇关于MyBatis-Flex+ShardingSphere-JDBC多数据源分库分表实现的文章就介绍到这了,更多相关MyBatis-Flex+ShardingSphere-JDBC 分库分表内容请搜索编程客栈(www.devze.com)以前的文章或继续浏览下面的相关文章希望大家以后多多支持编程客栈(www.devze.com)！

0

上一篇:

:下一篇

更多 开发 相关资讯：

精彩评论

暂无评论...
登录 注册
Qedev.com
验证码 换一张
取 消

关注公众号

热门标签

图文推荐

SpringBoot整合Liquibase实现对数据库管理和迁移

SpringBoot整合Liquibase实现对数据库管理和迁移
javacv ffmpeg使用原生ffmpeg命令方式

javacv ffmpeg使用原生ffmpeg命令方式
Linux管道揭秘之匿名管道连接进程世界的方法

Linux管道揭秘之匿名管道连接进程世界的方法
SpringBoot配置文件启动加载顺序的方法步骤

SpringBoot配置文件启动加载顺序的方法步骤
SpringBoot前后端传输加密设计实现方案

SpringBoot前后端传输加密设计实现方案
SpringBoot参数校验的一些实战应用

SpringBoot参数校验的一些实战应用
Springboot3集成Knife4j的步骤以及使用(最完整版)

Springboot3集成Knife4j的步骤以及使用(最完整版)
SpringBoot中的@Configuration、@MapperScan注解

SpringBoot中的@Configuration、@MapperScan注解

开发者开发者网给大家分享系统运维,大数据运维,云计算,编程开发技巧,路由交换,运维和开发相关的资讯及技术文章，同时StackOverflow中文社区，知识经验交流分享。

法律声明：本站内容均为网友上传，网站举办方负责审核和监督，如存在版权或非法内容，欢迎举报，我们将尽快予以删除。邮箱：devze@qq.com

Copyright © 2018-2020 开发者. All rights reserved. Powered by 开发者ICP备案号: 京ICP备10032868号-9
