Android在kts中使用navigation及Args
前言:
之前在项目中使用过navigation,但都是以Groory的方式,最近一年多使用kts后忍不住把项目都改成kts的方式,不过其中也遇到不少坑,今天就讲解一下如何在kts中使用navigation和安全地传递参数Args。
1.项目依赖导入:

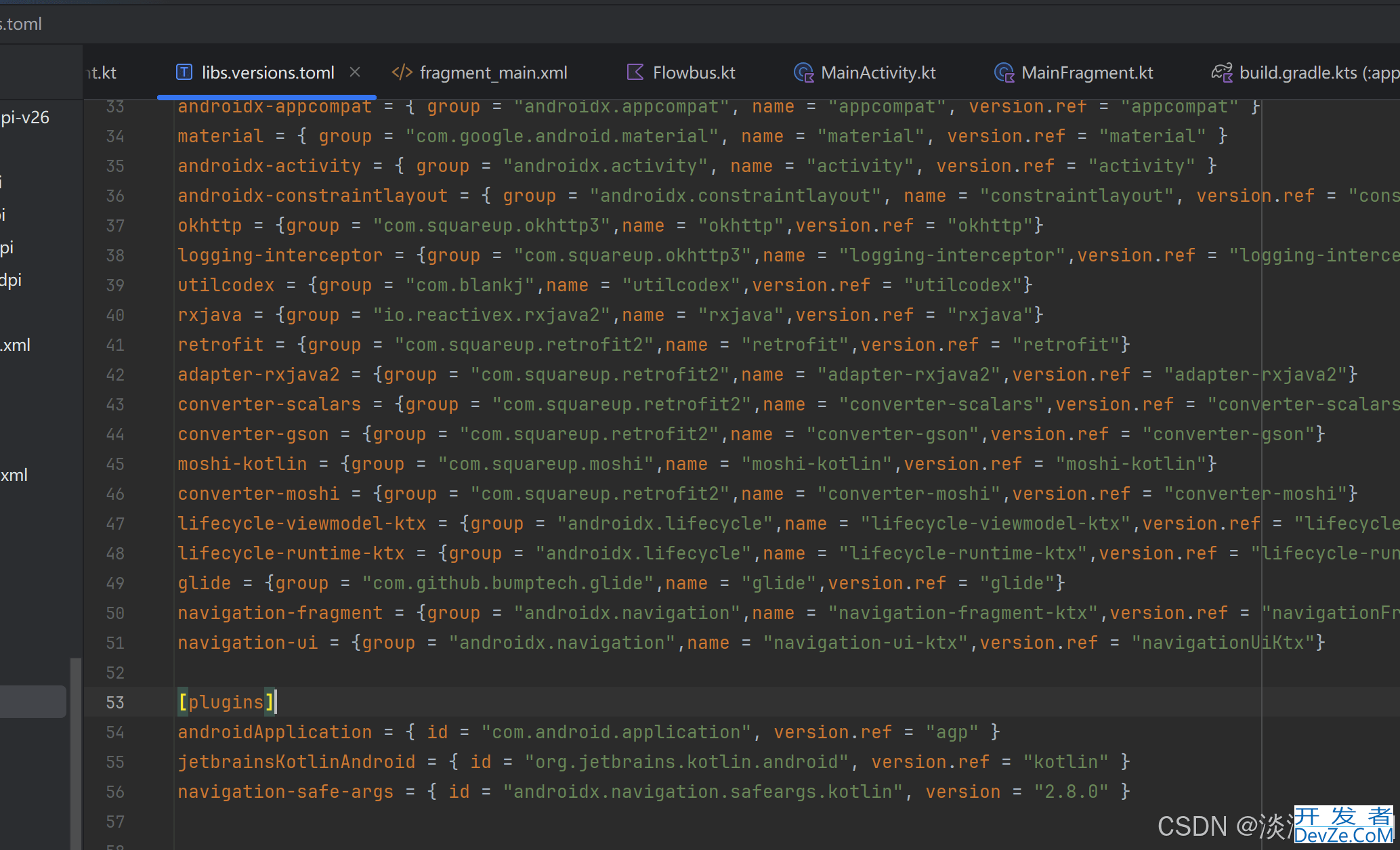

在libs.versions.toml文件下添加以下依赖:
navigationFragmentKtx = "2.6.0" navigationUiKtx = "2.6.0" navigation-fragment = {group = "androidx.navigation",name = "navigation-fragment-ktx",version.ref = "navigationFragmentKtx"} navigation-ui = {group = "androidx.navigation",name = "navigation-ui-ktx",version.ref = "navigationUiKtx"} navigation-safe-args = { id = "androidx.navigation.safeargs.kotlin", version = "2.8.0" }

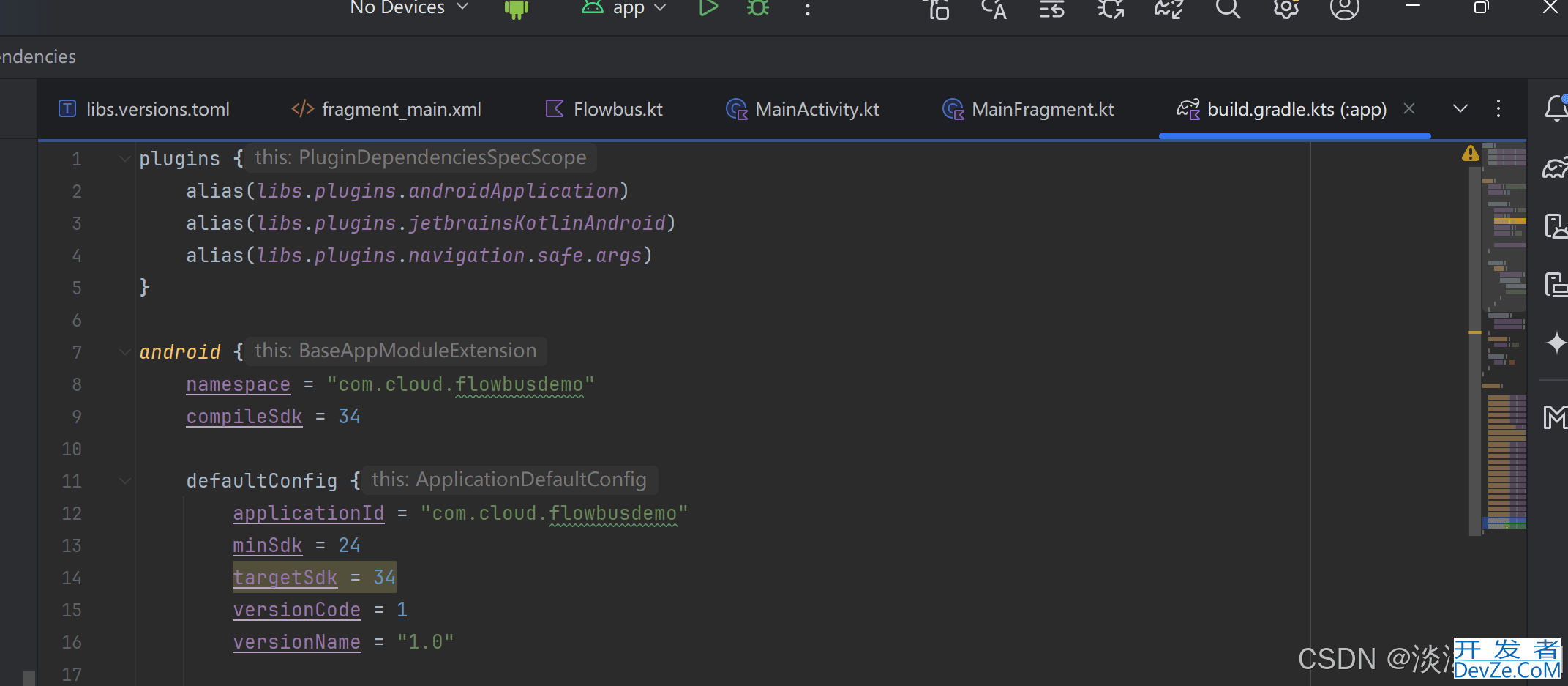

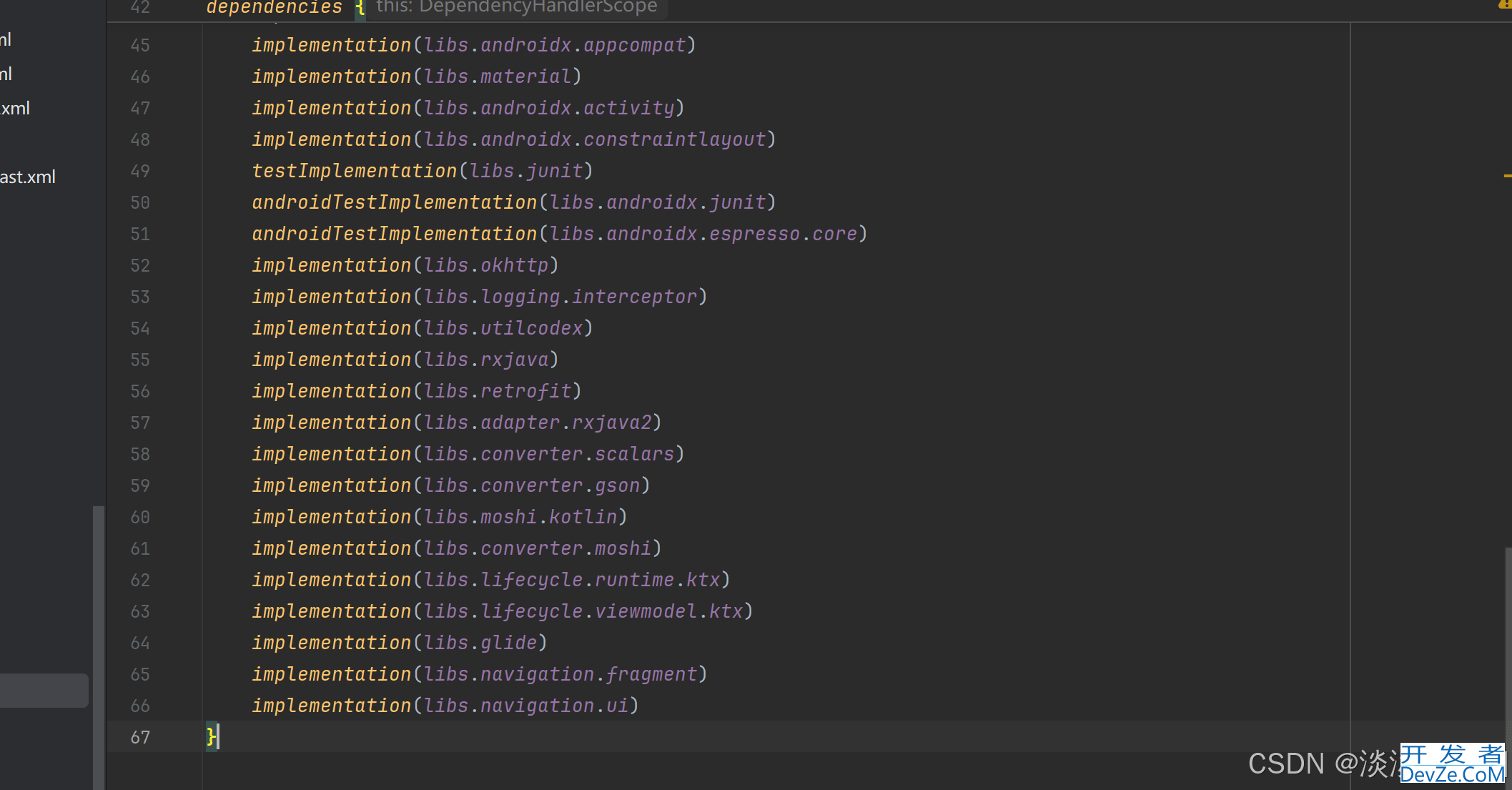

2.app目录的build.gradle配置:
plugins { alias(libs.plugins.androidApplication) alias(libs.plugins.jetbrainsKotlinAndroid) alias(libs.plugins.navigation.safe.args) } implementation(libs.navigation.fragment) implementation(libs.navigation.ui)

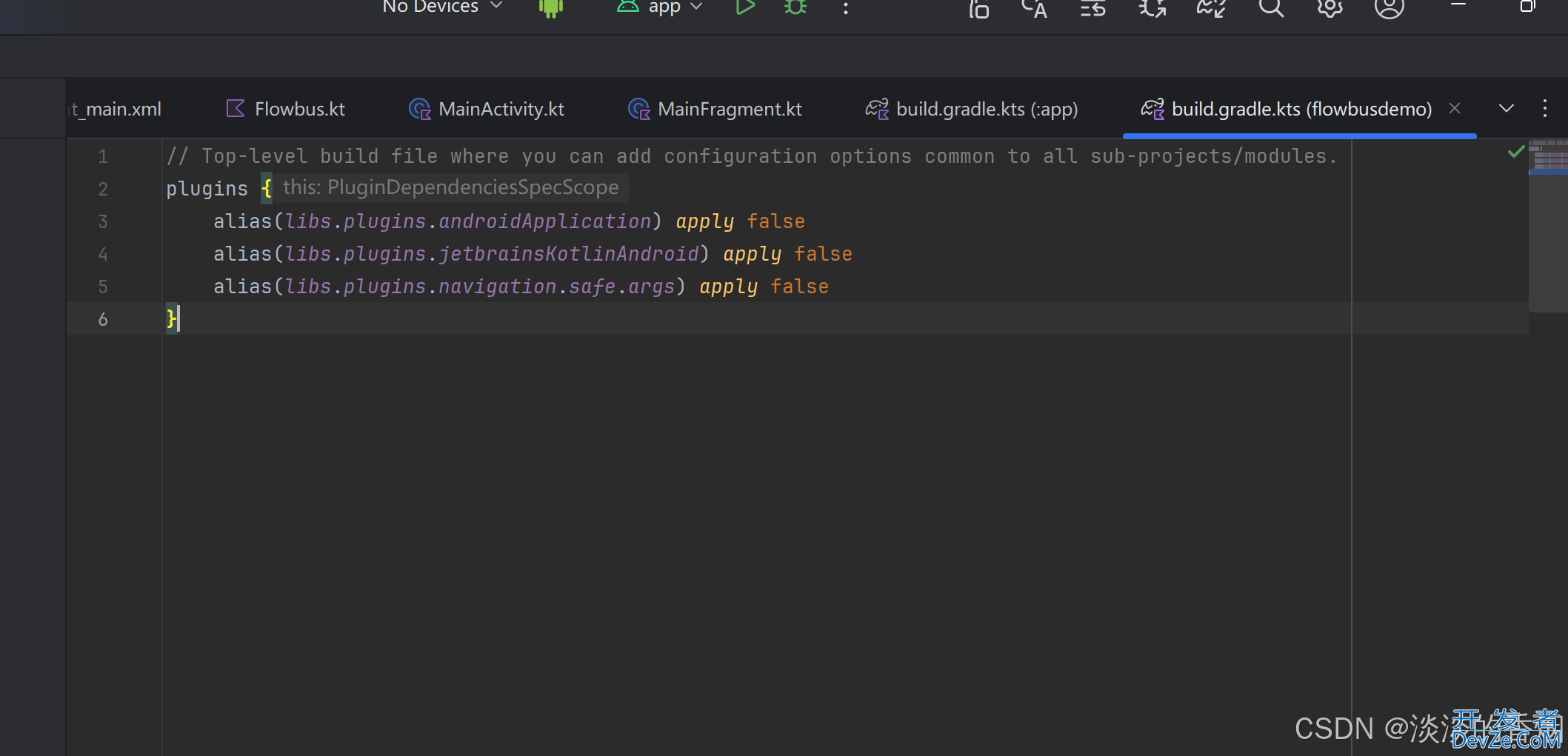

3.项目的build.gradle配置:
plugins { alias(libs.plugins.androidApplication) apply false alias(libs.plugins.jetbrainsKotlinAndroid) apply false alias(libs.plugins.navigation.safe.args) apply false }
4.在布局添加导航组件:

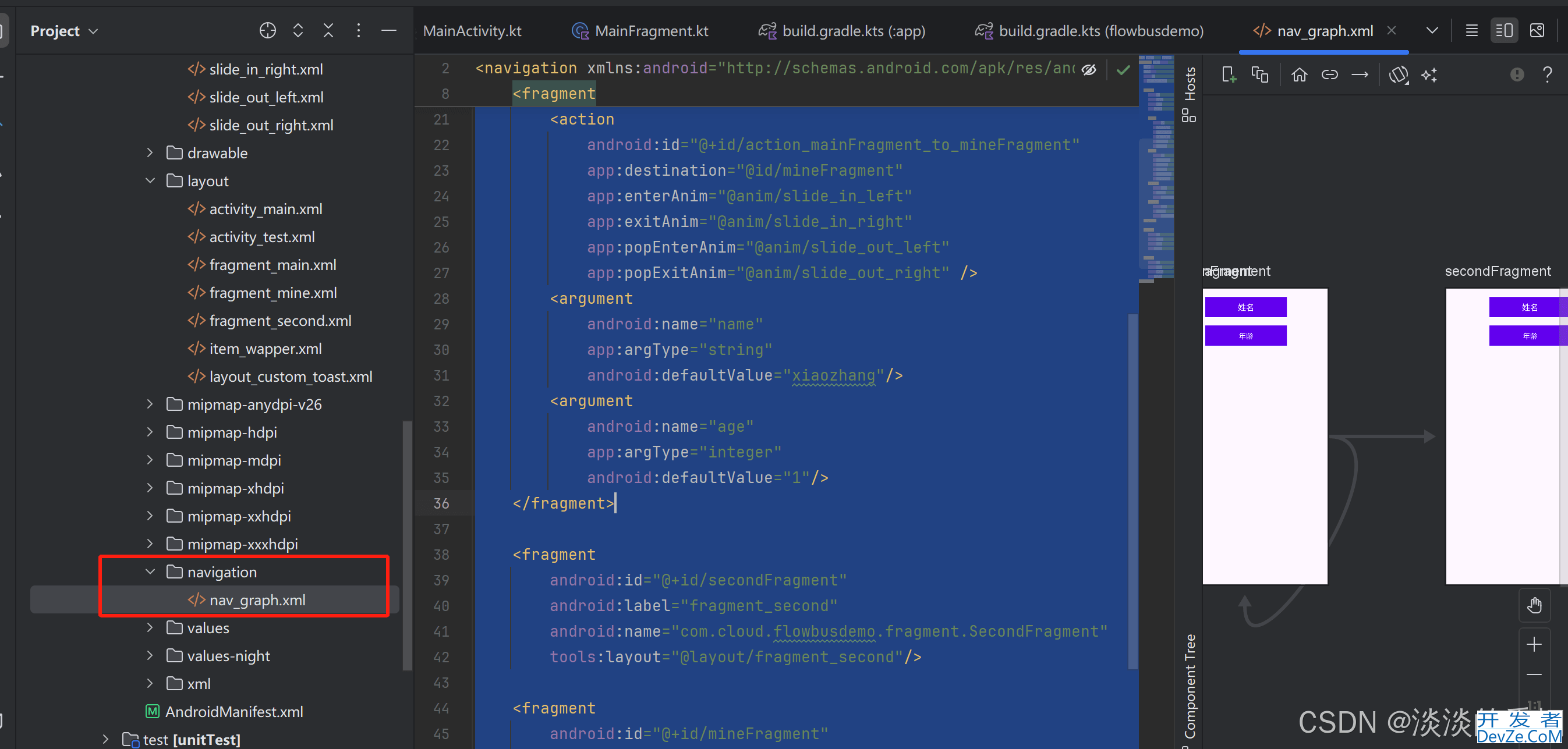

在res目录添加navigation——nav_graph文件
<?XML version="1.0" encoding="utf-8"?> <navigation xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:id="@+id/nav_graph" app:startDestination="@id/mainFragment"> <fragment android:id="@+id/mainFragment" android:label="fragment_main" android:name="com.cloud.flowbusdemo.fragment.MainFragment" tools:layout="@layout/fragment_main"> <action android:id="@+id/action_mainFragment_to_secondFragment" app:destination="@id/secondFragment" app:popEnterAnim="@anim/slide_in_left" app:popExitAnim="@anim/slide_out_right" app:enterAnim="@anim/slide_in_right" app:exitAnim="@anim/slide_out_left"/> <action android:id="@+id/action_mainFragment_to_mineFragment" app:destination="@id/mineFragment" app:enterAnim="@anim/slide_in_left" app:exitAnim="@anim/slide_in_right" app:popEnterAnim="@anim/slide_out_left" app:popExitAnim="@anim/slide_out_right" /> <argument android:name="name" app:argType="string" android:defaultValue="xiaozhang"/> <argument android:name="age" app:argType="integer" android:defaultValue="1"/> </fragment> <fragment android:id="@+id/secondFragment" android:label="fragment_second" android:name="com.cloud.flowbusdemo.fragment.SecondFragment" tools:layout="@layout/fragment_second"/> <fragment android:id="@+id/mineFragment" android:name="com.cloud.flowbusdemo.fragment.MineFragment" android:label="fragment_mine" tools:layout="@layout/fragment_mine" /> </navigation>
5.Fragment_main布局:
fragment_mine.xml
<?xml version="1.0" encoding="utf-8"?> <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" xmlns:app="http://schemas.android.com/apk/res-auto"> <androidx.appcompat.widget.AppCompatTextView android:id="@+id/tvTitle" android:layout_width="0dp" android:layout_height="40dp" app:layout_constraintStart_toStartOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintTop_toTopOf="parent" android:textSize="18sp" android:textColor="@color/white" android:gravity="center" android:text="MainFragment" android:layout_margin="20dp" android:background="@color/design_default_color_primary" tools:ignore="MissingConstraints" /> <androidx.appcompat.widget.AppCompatTextView android:id="@+id/btnToSecondFragment" android:layout_width="0dp" android:layout_height="40dp" app:layout_constraintTop_toBottomOf="@id/tvTitle" app:layout_constraintStart_toStartOf="parent" app:layout_constraintEnd_toEndOf="parent" android:textAllCaps="false" android:textColor="@color/white" android:gravity="center" android:layout_margin="20dp" android:background="@color/design_default_color_primary" android:text="打开SecondFragment"/> <androidx.appcompat.widget.AppCompatTextView android:id="@+id/btnToMineFragment" android:layout_width="0dp" android:layout_height="40dp" app:layout_constraintTop_toBottomOf="@+id/btnToSecondFragment" app:layout_constraintStart_toStartOf="parent" app:layout_constraintEnd_tjavascriptoEndOf="parent" android:textAllCaps="false" android:layout_marginTop="10dp" android:textColor="@color/white" android:gravity="center" android:layout_margin="20dp" android:background="@color/design_default_color_primary" android:text="打开MineFragment"/> </androidx.constraintlayout.widget.ConstraintLayout>
6.Fragment_mine布局:
<?xml version="1.0" encoding="utf-8"?> <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" xmlns:tools="http://schemas.android.com/tools" xmlns:app="http://schemas.android.com/apk/res-auto"> <TextView android:id="@+id/tvTitle" android:layout_width="200dp" android:layout_height="50dp" android:textSize="20sp" tools:text="姓名" android:gravity="center" android:background="@color/design_default_color_primary" app:layout_constraintTop_toTopOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintEnd_toEndOf="parent" android:textColor="@color/white" android:layout_marginTop="20dp"/> <TextView android:id="@+id/tvAge" android:layout_width="200dp" android:layout_height="50dp" android:textSize="18sp" tools:text="年龄" android:gravity="center" android:background="@color/design_default_color_primary" app:layout_constraintStart_toStartOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintTop_toBottomOf="@id/tvTitle" android:textColor="@color/white" android:layout_marginTop="20dp"/> </androidx.constraintlayout.widget.ConstraintLayout>
7.Fragment_second布局:
<?xml version="1.0" encoding="utf-8"?> <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" xmlns:tools="http://schemas.android.com/tools" xmlns:app="http://schemas.android.com/apk/res-auto"> <TextView android:id="@+id/tvTitle" android:layout_width="200dp" android:layout_height="50dp" android:textSize="20sp" tools:text="姓名" android:gravity="center" android:background="@color/design_default_color_primary" app:layout_constraintTop_toTopOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintEnd_toEndOf="parent" android:textColor="@color/white" android:layout_marginTop="20dp"/> <TextView android:id="@+id/tvAge" android:layout_width="200dp" android:layout_height="50dp" android:textSize="18sp" tools:text="年龄" android:gravity="center" android:background="@color/design_default_color_primary" app:layout_constraintStart_toStartOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintTop_toBottomOf="@id/tvTitle" android:textColor="@color/white" android:layout_marginTop="20dp"/> </androidx.constraintlayout.widget.ConstraintLayout>
8.activity_main主界面:
<?xml version="1.0" encoding="utf-8"?> <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".MainActivity"> <androidx.recyclerview.widget.RecyclerView android:id="@+id/rv_wallpaper" android:layout_width="match_parent" android:layout_height="match_parent" android:paddingStart="2dp" android:paddingEnd="2dp" android:visibility="gone" /> <ProgressBar android:id="@+id/pb_loading" android:layout_width="wrap_content" android:layout_height="wrap_content" android:visibility="gone" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toTopOf="parent" /> <TextView android:id="@+id/btn_get_wallpaper" android:layout_width="0dp" android:layout_height="40dp" android:text="获取壁纸" android:textColor="@color/white" android:gravity="center" android:background="@color/design_default_color_primary" app:layout_constraintEnd_toEndOf="parent" app:layout_constraintStart_toStartOf="parent" app:layout_constraintTop_toTopOf="parent" android:layout_margin="20dp"/> <fragment android:id="@+id/nav_host_fragment" android:name="androidx.navigation.fragment.NavHostFragment" android:layout_width="0dp" android:layout_height="0dp" app:defaultNavHost="true" app:layout_constraintBottom_toBottomOf="parent" app:layout_constraintLeft_toLeftOf="parent" app:layout_constraintRight_toRightOf="parent" app:layout_constraintTop_toBottomOf="@+id/btn_get_wallpaper" app:navGraph="@navigation/nav_graph" android:layout_marginTop="20dp"/> </androidx.constraintlayout.widget.ConstraintLayout>

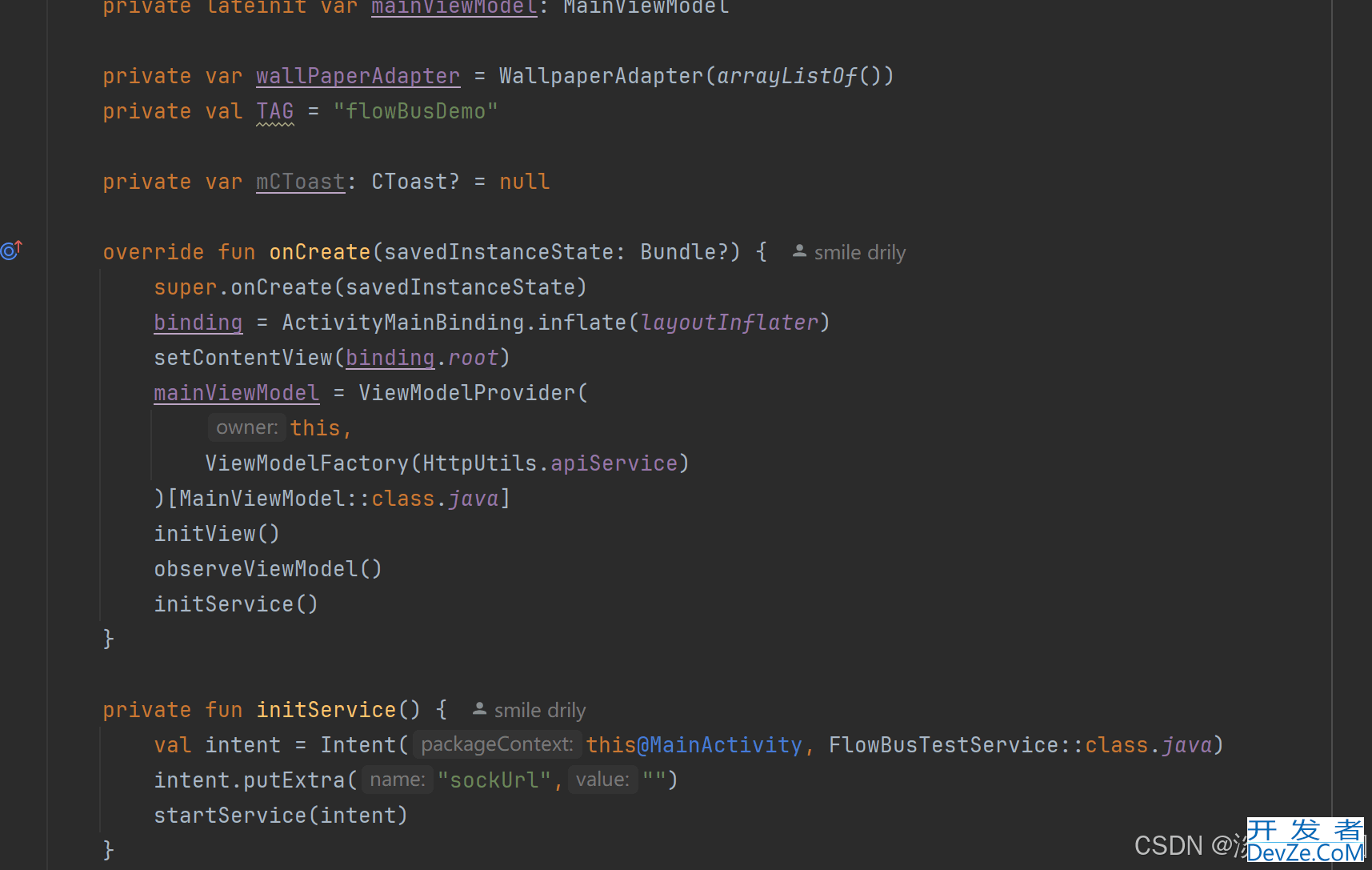

9.MainActivity代码:
package com.cloud.flowbusdemo import android.annotation.SuppressLint import android.content.Intent import android.os.Bundle import android.util.Log import android.view.View import android.widget.Toast import androidx.appcompat.app.AppCompatActivity import androidx.lifecycle.ViewModelProvider import androidx.lifecycle.lifecycleScope import androidx.recyclerview.widget.GridLayoutManager import com.blankj.utilcode.util.LogUtils import com.cloud.flowbusdemo.databinding.ActivityMainBinding import com.cloud.flowbusdemo.flow.FlowBus import com.cloud.flowbusdemo.http.HttpUtils import com.cloud.flowbusdemo.intent.MainIntent import com.cloud.flowbusdemo.model.MessageEvent import com.cloud.flowbusdemo.service.FlowBusTestService import com.cloud.flowbusdemo.ui.adapter.WallpaperAdapter import com.cloud.flowbusdemo.ui.viewmodel.MainViewModel import com.cloud.flowbusdemo.ui.viewmodel.ViewModelFactory import com.cloud.flowbusdemo.uistate.MainUIState import com.cloud.flowbusdemo.utils.CToast import com.cloud.flowbusdemo.utils.GenericToast import com.cloud.flowbusdemo.utils.SingleToast import kotlinx.coroutines.launch class MainActivity : AppCompatActivity() { private lateinit var binding: ActivityMainBinding private lateinit var mainViewModel: MainViewModel private var wallPaperAdapter = WallpaperAdapter(arrayListOf()) private val TAG = "flowBusDemo" private var mCToast: CToast? = null override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) binding = ActivityMainBinding.inflate(layoutInflater) setContentView(binding.root) mainViewModel = ViewModelProvider( this, ViewModelFactory(HttpUtils.apiService) )[MainViewModel::class.Java] initView() observeViewModel() initService() } private fun initService() { val intent = Intent(this@MainActivity, FlowBusTestService::class.java) intent.putExtra("sockUrl","") startService(intent) } /** * ViewModel */ @SuppressLint("NotifyDataSetChanged") private fun observeViewModel() { lifecycleScope.launch { mainViewModel.state.collect { when (it) { is MainUIState.Idle -> { } is MainUIState.Loading -> { binding.btnGetWallpaper.visibility = View.GONE binding.pbLoading.visibility = View.VISIBLE } is MainUIState.Success -> { //数据返回 binding.btnGetWallpaper.visibility = View.GONE binding.pbLoading.visibility = View.GONE binding.rvWallpaper.visibility = View.VISIBLE it.wallpaper.let { paper -> wallPaperAdapter.addData(paper.res.vertical) } wallPaperAdapter.notifyDataSetChanged() } is MainUIState.Error -> { binding.pbLoading.visibility = View.GONE binding.btnGetWallpaper.visibility = View.VISIBLE Log.d("TAG", "observeViewModel: $it.error") Toast.makeText(this@MainActivity, it.error, Toast.LENGTH_LONG).show() } } } } } /** * 初始化 */ private fun initView() { binding.rvWallpaper.apply { layoutManager = GridLayoutManager(this@MainActivity, 2) adapter = wallPaperAdapter } binding.btnGetWallpaper.setOnClickListener { lifecycleScope.launch { mainViewModel.mainIntentChannel.send(MainIntent.GetWallpaper) } val intent = Intent(this@MainActivity,TestActivity::class.java) startActivity(intent) val timeToast = SingleToast.makeText(this@MainActivity, "显示时间自定的Toast", 10.0) timeToast.show() } FlowBus.with<MessageEvent>("test").register(this@MainActivity) { LogUtils.d(TAG,it.toString()) if(it.message == "stop"){ LogUtils.d(TAG,"===接收到的消息为==="+it.message) } } FlowBus.with<MessageEvent>("mineFragment").register(this@MainActivity) { LogUtils.d(TAG,it.toString()) if(it.message == "onMine"){ LogUtils.d(TAG,"===接收到的消息为1111==="+it.message) } } } }
10.MainFragment代码:
package com.cloud.flowbusdemo.fragment import android.os.Bundle import android.view.LayoutInflater import android.view.View import android.view.ViewGroup import androidx.fragment.app.Fragment import androidx.navigation.Navigation import com.cloud.flowbusdemo.R import com.cloud.flowbusdemo.databinding.FragmentMainBinding private const val ARG_PARAM_NAME = "name" private const val ARG_PARAM_AGE = "age" /** * @auth: njb * @date: 2024/9/17 18:46 * @desc: 描述 */ class MainFragment : Fragment() { private lateinit var binding: FragmentMainBinding private var name: String? = null private var age: Int? = null override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) arguments?.let { name = it.getString(ARG_PARAM_NAME) age = it.getInt(ARG_PARAM_AGE) } } override fun onCreateView( inpythonflater: LayoutInflater, container: ViewGroup?, savedInstanceState: Bundle? ): View { binding = FragmentMainBinding.inflate(layoutInflater) initView() return binding.root } private fun initView() { binding.btnToSecondFragment.setOnClickListener(View.OnClickListener { v -> /* val bundle = Bundle() bundle.putString("name", "Michael") bundle.putInt("age", 30)*/ val args: Bundle = Bundle().apply { this.putString(ARG_PARAM_NAME, "哈哈") this.putInt(ARG_PARAM_AGE, 25) } Navigation.findNavController(v) .navigate(R.id.action_mainFragment_to_secondFragment, args) }) binding.btnToMineFragment.setOnClickListene编程r{v -> val args: Bundle = Bundle().apply { this.putString(ARG_PARAM_NAME, "Tom") this.putInt(ARG_PARAM_AGE, 18) } val navController = Navigation.findNavController(v) //navController.navigate(R.id.action_mainFragment_to_mineFragment, args) val bundle: Bundle = MainFragmentArgs("haha",20).toBundle() Navigation.findNavController(v).navigate(R.id.action_mainFragment_to_mineFragment,bundle) } } }
11.MineFragment代码:
package com.cloud.flowbusdemo.fragment import android.os.Bundle import android.util.Log import android.view.LayoutInflater import android.view.View import android.view.ViewGroup import androidx.fragment.app.Fragment import androidx.lifecycle.lifecycleScope import androidx.navigation.fragment.navArgs import com.cloud.flowbusdemo.databinding.FragmentMineBinding import com.cloud.flowbusdemo.flow.FlowBus import com.cloud.flowbusdemo.model.MessageEvent import kotlinx.coroutines.launch private const val ARG_PARAM_NAME = "name" private const val ARG_PARAM_AGE = "age" /** * @auth: njb * @date: 2024/9/17 19:43 * @desc: 描述 */ class MineFragment :Fragment(){ private lateinit var binding: FragmentMineBinding private val TAG = "MineFragment" private var name: String? = null private var age: Int? = 0 private val args:MainFragmentArgs by navArgs() override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) args.let { name = args.name age = args.age } Log.i(TAG, "传递过来的参数为 name = $name , age = $age") Log.d(TAG, "姓名:" + name + "年龄:" + age) } override fun onCreateView( inflater: LayoutInflater, container: ViewGroup?, savedInstanceState: Bundle? ): View { binding = FragmentMineBinding.inflate(layoutInflater) initView() return binding.root } private fun initView() { val messageEvent = MessageEvent() messageEvent.message = "onMine" messageEvent.state = false binding.let { it.tvTitle.text = name it.tvAge.text = age.toString() it.tvTitle.setOnClickListener { lifecycleScope.launch { FlowBus.with<MessageEvent>("mineFragment").post(this, messageEvent) } } } } }
12.SecondFragment代码:
package com.cloud.flowbusdemo.fragment import android.os.Bundle import android.util.Log import android.view.LayoutInflater import android.view.View import android.view.ViewGroup import androidx.fragment.app.Fragment import androidx.lifecycle.lifecycleScope import com.cloud.flowbusdemo.constants.Constants import com.cloud.flowbusdemo.databinding.FragmentMineBinding import com.cloud.flowbusdemo.databinding.FragmentSecondBinding import com.cloud.flowbusdemo.flow.FlowBus import com.cloud.flowbusdemo.model.MessageEvent import kotlinx.coroutines.launch /** * @auth: njb * @date: 2024/9/17 18:48 * @desc: 描述 */ class SecondFragment : Fragment(){ private val TAG = "SecondFragment" private var name: String? = null private var age: Int? = null private lateinit var binding: FragmentSecondBinding override fun onCreateView( inflater: LayoutInflater, container: ViewGroup?, savedInstanceState: Bundle? ): View { binding = FragmentSecondBinding.inflate(layoutInflater) initView() return binding.root } override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) arguments?.let { name = it.getString(Constants.ARG_PARAM_NAME) age = it.getInt(Constants.ARG_PARAM_AGE) } Log.i(TAG, "MainFragment 传递到 SecondFragment 的参数为 name = $name , age = $age") Log.d(TAG, "姓名:" + name + "年龄:" + age) } private fun initView() { binding.let { it.tvTitle.text = name it.tvAge.text = age.toString() } } }
13.传递参数的方式:

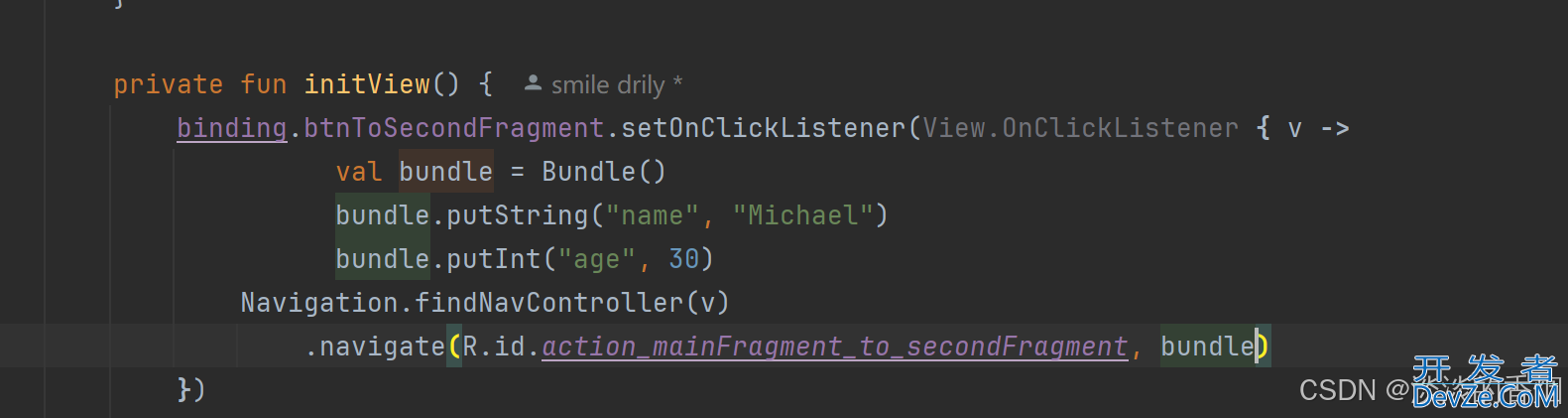

13.1使用bundle:
binding.btnToSecondFragment.setOnClickListener(View.OnClickListener { v -> val bundle = Bundle() bundle.putString("name", "Michael") bundle.jsputInt("age", 30) Navigation.findNavController(v) .navigate(R.id.action_mainFragment_to_secondFragment, bundle) })
13.2使用Safs安全方式传递:
binding.btnToMineFragment.setOnClickListener{v -> val bundle: Bundle = MainFragmentArgs("haha",20).toBundle() Navigation.findNavController(v).navigate(R.id.action_mainFragment_to_mineFragment,bundle) }

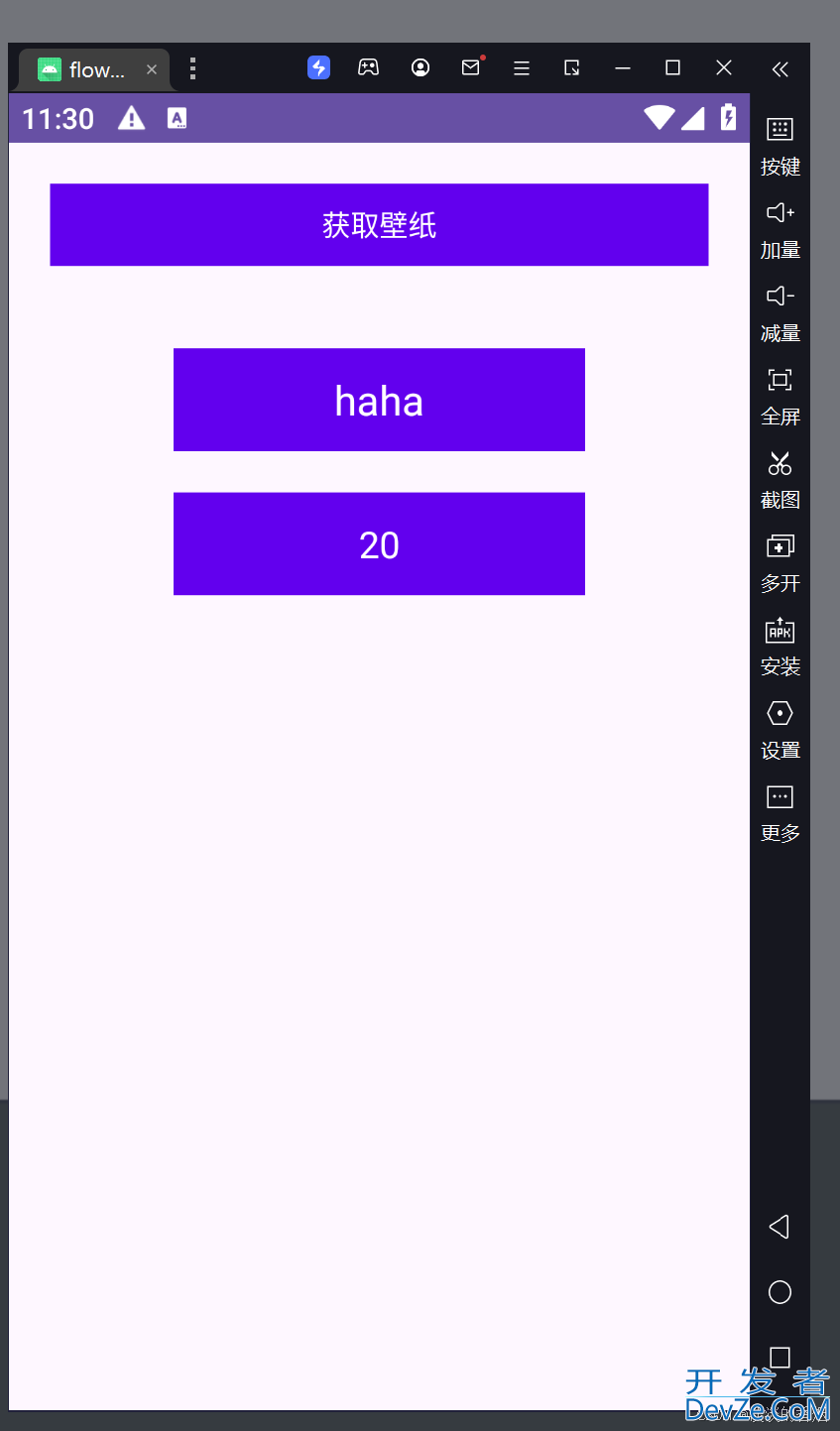

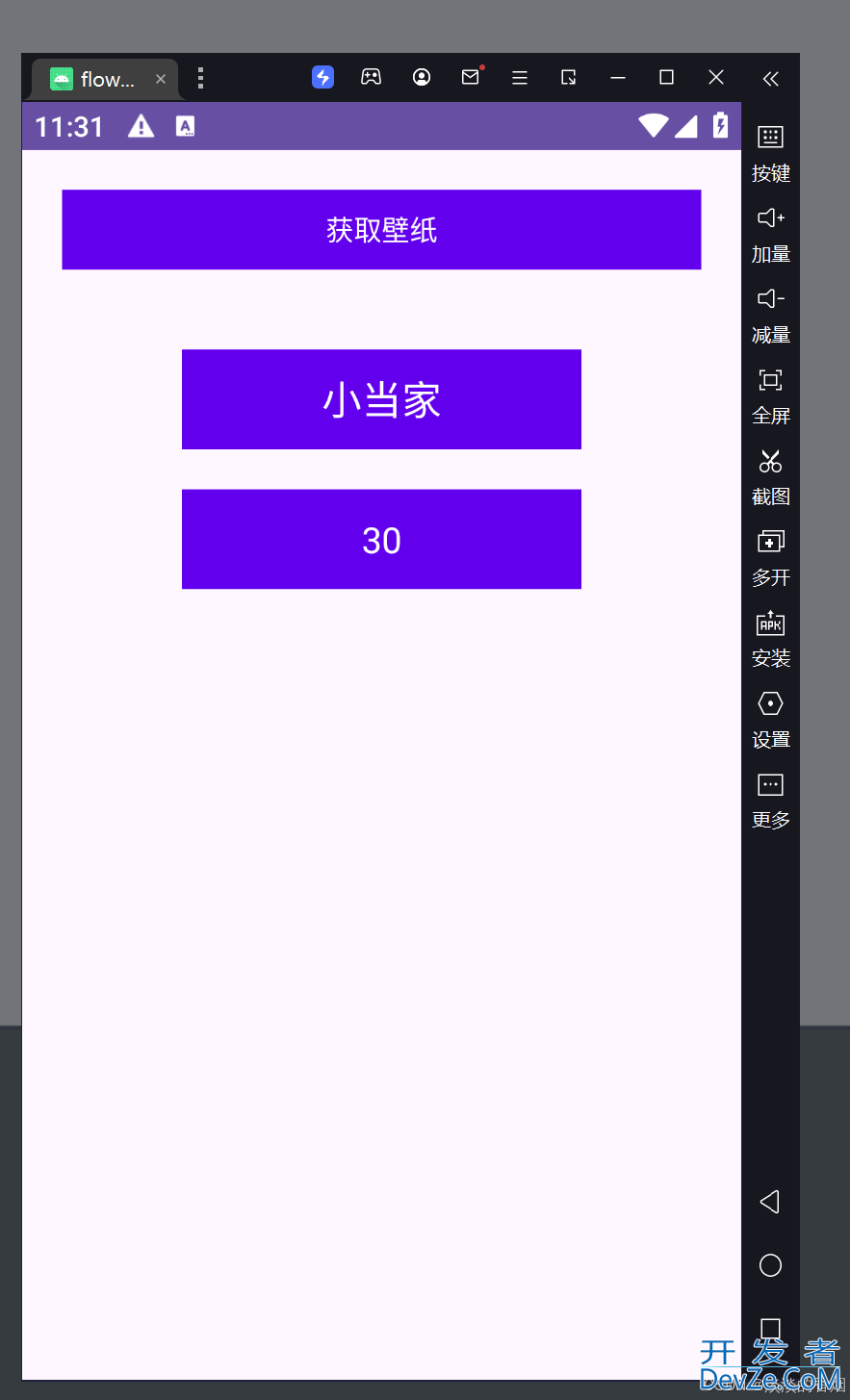

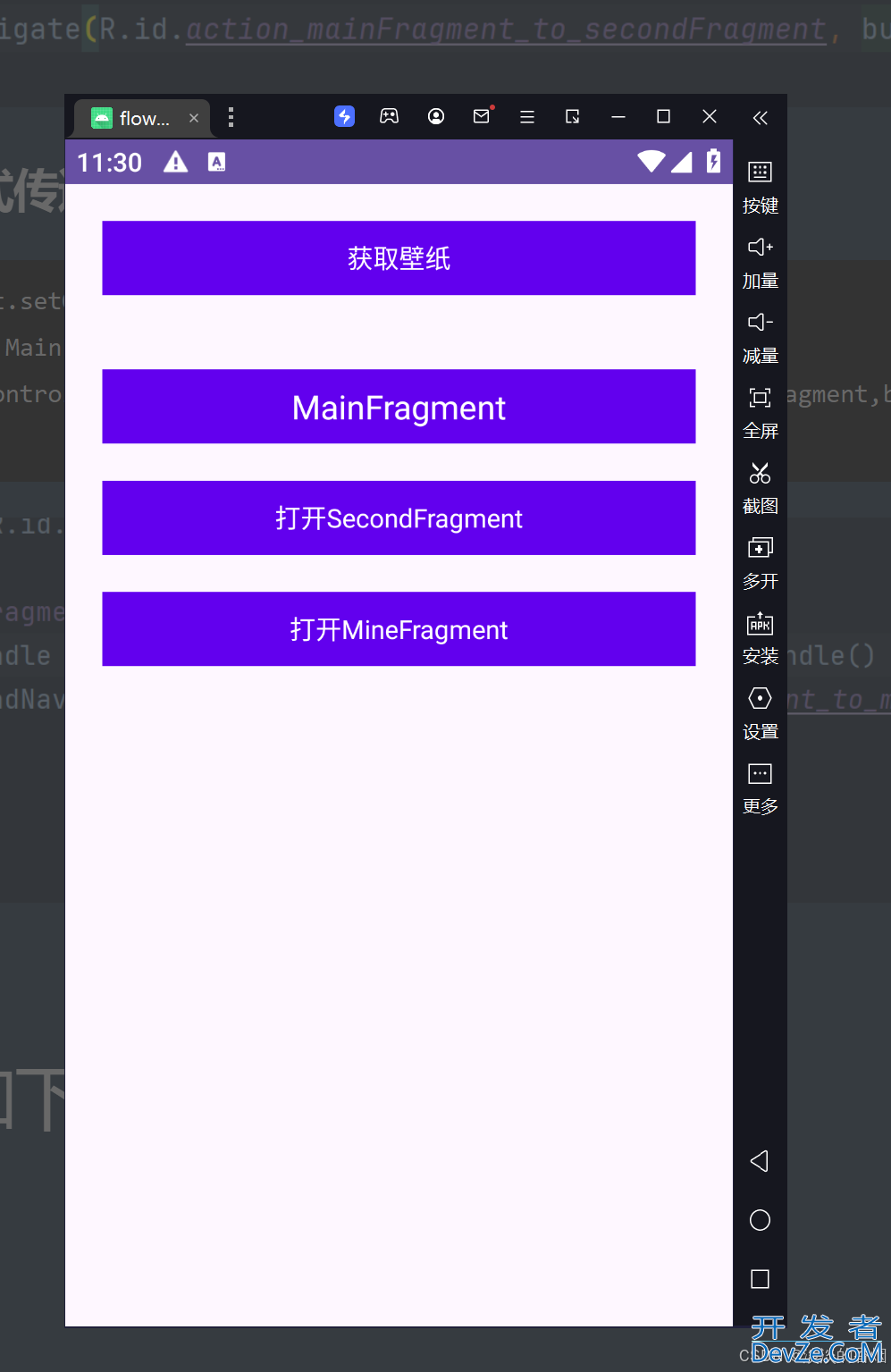

14.实现效果如下:
15.项目demo地址:
https://gitee.com/jackning_admin/flowbus-demo
