前言

在android开发中，通过对话框让用户选择，筛选信息是很方便也很常见的操作。本文详细介绍了如何使用自定义 Dialog、RecyclerView 以及自定义搜索框来实现选中状态和用户交互，文中大本分代码都有明确注释，主打一个简单明了，实际效果如下，可单选，全选，精准查找，选择状态变化，以及信息回调

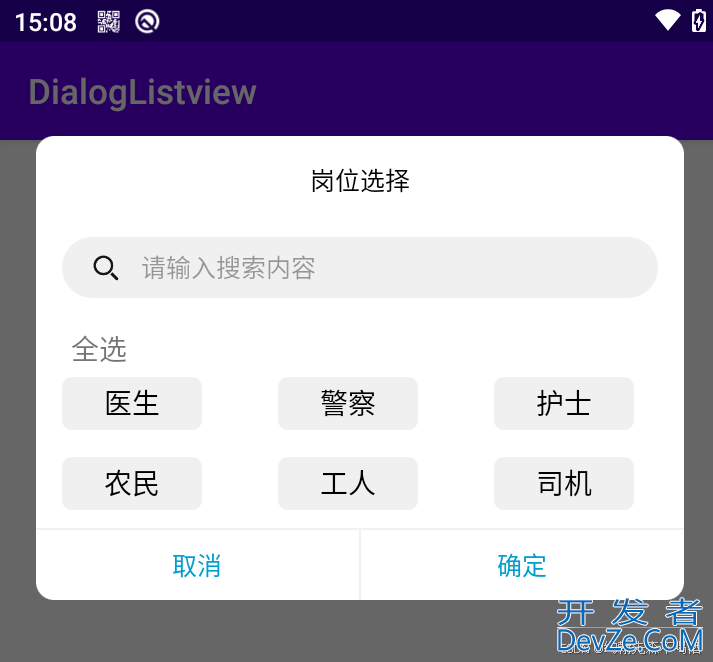

Android 自定义 Dialog 实现列表单选、多选、搜索功能

一、Builder 模式

说到自定义 Dialog，就不得不提到 Builder模式，

Android系统中的Builder设计模式是一种创建型设计模式，它主要用于构建一个复杂对象，并将其构建过程与表示分离，Builder设计模式通过将一个复杂对象的构建过程拆解成一系列简单的步骤，使得构建过程更加灵活、可读和易于扩展。它允许用户在不知道内部构建细节的情况下，可以更精细地控制对象的构造流程。

在Android开发中，Builder模式的一个常见应用是AlertDialog.Builder。AlertDialog是一个复杂的对话框对象，它包含多个属性和方法。使用AlertDialog.Builder可以方便地构建和显示对话框，而无需直接操作AlertDialog对象。例如：

AlertDialog.Builder builder = new AlertDialog.Builder(context);
builder.setIcon(R.drawable.icon);
builder.setTitle("头部");
builder.setMessage("内容");
builder.setPositiveButton("Button1", new DialogInterface.OnClickListener() {
    public void onClick(DialogInterface dialog, int whichButton) {
        // 处理点击事件
    }
});
builder.create().show(); // 构建并显示对话框

综上所述，Builder设计模式在Android开发中具有重要的应用价值。它可以帮助开发者构建复杂对象，提高代码的可读性和可维护性，同时支持灵活的构建过程和对象变种。

二、使用步骤

1. 自定义 SerachSelectDialog

public class SerachSelectDialog extends Dialog {
    private static SearchSelectAdapter sa;
    private static String result;
    private static List<String> resultList = new ArrayList<>();
    private static List<String> selectedItems;
    private static int searchPosition;
    public SerachSelect编程客栈Dialog(Context context, int themeResId) {
        super(context, themeResId);
    }
    /**
     * 设置 Dialog的大小
     *
     * @param x 宽比例
     * @param y 高比例
     */
    public void setDialogWindowAttr(double x, double y, Activity activity) {
        if (x < 0 || x > 1 || y < 0 || y > 1) {
            return;
        }
        Window window = this.getWindow();
        WindowManager.LayoutParams lp = window.getAttributes();
        WindowManager manager = activity.getWindowManager();
        DisplayMetrics outMetrics = new DisplayMetrics();
        manager.getDefaultDisplay().getMetrics(outMetrics);
        int width = outMetrics.widthPixels;
        int height = outMetrics.heightPixels;
        lp.gravity = Gravity.BOTTOM;
        lp.width = (int) (width * x);
        lp.height = (int) (height * y);
        this.getWindow().setAttributes(lp);
    }
    public static class Builder {
        private String title;
        private View contentView;
        private String positiveButtonText;
        private String negativeButtonText;
        private List<ItemModel> listData;
        private View.OnClickListener positiveButtonClickListener;
        private View.OnClickListener negativeButtonClickListener;
        private View.OnClickListener singleButtonClickListener;
        private View layout;
        private Context context;
        private SerachSelectDialog dialog;
        private OnSelectedListiner selectedListiner;
        SearchView searchView;
        LinearLayout closeBtn;
        LinearLayout okBtn;
        TextView titleView;
        private boolean state = false;
        private RecyclerView itemLv;
        private final TextView qxTv;
        //初始化
        public Builder(Context context) {
            //这里传入自定义的style，直接影响此Dialog的显示效果。style具体实现见style.xml
            this.context = context;
            dialog = new SerachSelectDialog(context, R.style.selectDialog);
            LayoutInflater inflater = (LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
            layout = inflater.inflate(R.layout.dialog_select_search, null);
            qxTv = layout.findViewById(R.id.qx_tv);
            itemLv = layout.findViewById(R.id.item_lv);
            searchView = layout.findViewById(R.id.searchView);
            closeBtn = layout.findViewById(R.id.diss_layout);
            okBtn = layout.findViewById(R.id.ok_layout);
            titleView = layout.findViewById(R.id.title_tv);
            dialog.addContentView(layout, new ViewGroup.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.WRAP_CONTENT));
        }
        public Builder setTitle(String title) {
            this.title = title;
            return this;
        }
        public void setListData(List<ItemModel> listData) {
            this.listData = listData;
        }
        /**
         * 单按钮对话框和双按钮对话框的公共部分在这里设置
         */
        private SerachSelectDialog create() {
            GridLayoutManager gridLayoutManager = new GridLayoutManager(context, 3);
            sa = new SearchSelectAdapter(listData);
            itemLv.setLayoutManager(gridLayoutManager);
            itemLv.setAdapter(sa);
            //搜索事件
            searchView.setSearchViewListener(new SearchView.onSearchViewListener() {
                @Override
                public boolean onQueryTextChange(String text) {
                    updateLayout(searchItem(text));
                    return false;
                }
            });
            //全选
            qxTv.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    if (sa.getSelectedItemPositions().size() == sa.getItemCount()) {
                        sa.clearSelection();
                    } else {
                        sa.selectAll();
                        resultList = sa.getSelectedItems();
                    }
                }
            });
            //取消按钮
            closeBtn.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    dialog.dismiss();
                    resultList.clear();
                }
            });
            //确认按钮
            okBtn.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    String json = new Gson().toJson(resultList);
                    selectedListiner.onSelected(json);
                    dialog.dismiss();
                    resultList.clear();
                }
            });
            dialog.setOnDismissListener(new OnDismissListener() {
                @Override
                public void onDismiss(DialogInterface dialog) {
                }
            });
            //item点击事件
            sa.setOnItemClickListener(new SearchSelectAdapter.OnItemClickListener() {
                @Override
                public void onItemClick(int position) {
                    boolean selected = listData.get(position).isSelected();
                    result = listData.get(position).getItemName();
                    if (selected == true) {
                        resultList.add(result);
                    } else {
                        resultList.remove(result);
                    }
                    Log.i("U--", resultList.toString() + selected + "");
                }
            });
            dialog.setContentView(layout);
            //用户可以点击手机Back键取消对话框显示
            dialog.setCancelable(true);
            //用户不能通过点击对话框之外的地方取消对话框显示
            dialog.setCanceledOnTouchOutside(false);
            return dialog;
        }
        //在数据源中查找匹配的数据
        public List<ItemModel> searchItem(String name) {
            ArrayList<ItemModel> mSearchList = new ArrayList<ItemModel>();
            for (int i = 0; i < listData.size(); i++) {
                int index = listData.get(i).getItemName().indexOf(name);
                // 存在匹配的数据
                if (index != -1) {
                    mSearchList.add(listData.get(i));
                    Log.i("U--", i + "搜索位置");
                    searchPosition = i;
                }
            }
            return mSearchList;
        }
        //提供匹配后的的数据进行数据回调
        public void updateLayout(List<ItemModel> newList) {
            final SearchSelectAdapter sa = new SearchSelectAdapter(newList);
            GridLayoutManager gridLayoutManager = new GridLayoutManager(context, 3);
            itemLv.setLayoutManager(gridLayoutManager);
            itemLv.setAdapter(sa);
            //item点击事件
            sa.setOnItemClickListener(new SearchSelectAdapter.OnItemClickListener() {
                @Override
                public void onItemClick(int position) {
                    result = newList.get(position).getItemName();
                    boolean selected = listData.get(searchPosition).isSelected();
                    if (selected == true) {
                        resultList.add(result);
                    } else {
                        resultList.remove(result);
                    }
                    Log.i("U--", resultList.toString() + selected + "");
                }
            });
        }
        //自定义接口进行数据点击回传
        public static abstract class OnSelectedListiner {
            public abstract void onSelected(String String);
        }
        public void setSelectedListiner(SerachSelectDialog.Builder.OnSelectedListiner selectedListiner) {
            this.selectedListiner = selectedListiner;
        }
        //弹框展示
        public SerachSelectDialog show() {
            create();
            dialog.show();
            return dialog;
        }
    }
}

2.自定义搜索框 SearchView

UI 主要包括输入框，删除键 ,主要通过监听EditText 的文本以及输入框的变化，设置搜索回调接口来实现

public class SearchView extends LinearLayout implements View.OnClickListener {
    /**
     * 输入框
     */
    private EditText etInput;
    /**
     * 删除键
     */
    private ImageView ivDelete;
    /**
     * 上下文对象
     */
    private Context mContext;
    /**
     * 搜索回调接口
     */
    private onSearchViewListener mListener;
    /**
     * 设置搜索回调接口
     *
     * @param listener 监听者
     */
    public void setSearchViewListener(onSearchViewListener listener) {
        mListener = listener;
    }
    public SearchView(Context context, AttributeSet attrs) {
        super(context, attrs);
        mContext = context;
        LayoutInflater.from(context).inflate(R.layout.view_search_layout, this);
        initViews();
    }
    private void initViews() {
        etInput = (EditText) findViewById(R.id.et_search_text);
        ivDelete = (ImageView) findViewById(R.id.imb_search_clear);
        ivDelete.setOnClickListener(this);
        etInput.addTextChangedListener(new EditChangedListener());
        etInput.setOnClickListener(this);
    }
    private class EditChangedListener implements TextWatcher {
        @Override
        public void beforeTextChanged(CharSequence charSequence, int i, int i2, int i3) {
        }
        @Override
        public void onTextChanged(CharSequence charSequence, int i, int i2, int i3) {
            if (!"".equals(charSequence.toString())) {
                ivDelete.setVisibility(VISIBLE);
                //更新autoComplete数据
                if (mListener != null) {
                    mListener.onQueryTextChange(charSequence + "");
                }
            } else {
                ivDelete.setVisibility(GONE);
            }
        }
        @Override
        public void afterTextChanged(Editable editable) {
        }
    }
    @Override
    public void onClick(View view) {
        switch (view.getId()) {
            case R.id.imb_search_clear:
                etInput.setText("");
                if (mListener != null) {
                    mListener.onQueryTextChange("");
                }
                ivDelete.setVisibility(GONE);
                break;
        }
    }
    /**
     * search view回调方法
     */
    public interface onSearchViewListener {
        boolean onQueryTextChange(String text);
    }
}

3.SearchSelectAdapter

主要实现条目的点击事件以及数据回调

public class SearchSelectAdapter extends RecyclerView.Adapter<SearchSelectAdapter.ViewHolder> {
    private List<ItemModel> itemList;
    private List<Integer> selectedItemPositions;
    //声明接口
    private OnItemClickListener onItemClickListener;
    public SearchSelectAdapter(List<ItemModel> itemList) {
        this.itemList = itemList;
        selectedItemPositions = new ArrayList<>();
    }
    @Override
    public int getItemCount() {
        return itemList.size();
    }
    public void setOnItemClickListener(OnItemClickListener listener) {
        this.onItemClickListener = listener;
    }
    @NonNull
    @Override
    public ViewHolder onCreateViewHolder(@NonNull ViewGroup parent, int viewType) {
        // 创建ViewHolder
        View view = LayoutInflater.from(parent.getContext()).inflate(R.layout.list_cell_select_single, parent, false);
        return new ViewHolder(view);
    }
    @Override
    public void onBindViewHolder(@NonNull ViewHolder holder, int position) {
        // 绑定数据到ViewHolder
        ItemModel item = itemList.get(position);
        holder.textView.setText(item.getItemName());
        //给条目布局设置点击事件
        holder.itemLayout.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                if (selectedItemPositions.contwww.devze.comains(position)) {
                    selectedItemPositions.remove(Integer.valueOf(position));
                    holder.textView.setTextColor(Color.BLACK);
  编程客栈                  holder.itemView.setBackgroundResource(R.drawable.item_grey_layout_bg);
                    item.setSelected(false);
                } else {
                    selectedItemPositions.add(position);
                    holder.textView.setTextColor(Color.WHITE);
                    holder.itemView.setBackgroundResource(R.drawa编程客栈ble.item_blue_layout_bg);
                    item.setSelected(true);
                }
                if (onItemClickListener != null) {
                    onItemClickListener.onItemClick(position);
                }
            }
        });
        if (selectedItemPositions.contains(position)) {
            holder.textView.setTextColor(Color.WHITE);
            holder.itemView.setBackgroundResource(R.drawable.item_blue_layout_bg);
        } else {
            holder.textView.setTextColor(Color.BLACK);
            holder.itemView.setBackgroundResource(R.drawable.item_grey_layout_bg);
        }
    }
    /**
     * 接口回调
     */
    public interface OnItemClickListener {
        void onItemClick(int position);
    }
    public void selectAll() {
        selectedItemPositions.clear();
        for (int i = 0; i < itemList.size(); i++) {
            selectedItemPositions.add(i);
        }
        notifyDataSetChanged();
    }
    public void clearSelection() {
        selectedItemPositions.clear();
        notifyDataSetChanged();
    }
    public List<Integer> getSelectedItemPositions() {
        return selectedItemPositions;
    }
    public List<String> getSelectedItems() {
        List<String> selectedItems = new ArrayList<>();
        for (int position : selectedItemPositions) {
            selectedItems.add(itemList.get(position).getItemName());
        }
        return selectedItems;
    }
    public static class ViewHolder extends RecyclerView.ViewHolder {
        private final TextView textView;
        private final LinearLayout itemLayout;
        public ViewHolder(@NonNull View itemView) {
            super(itemView);
            textView = itemView.findViewById(R.id.tv_select_info);
            itemLayout = itemView.findViewById(R.id.item_layout);
        }
    }
}

4.xml 布局

dialog_select_search.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">
    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:background="@drawable/item_white_layout"
        android:orientation="vertical">
        <RelativeLayout
            android:layout_width="match_parent"
            android:layout_height="50dp">
            <TextView
                android:id="@+id/title_tv"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_centerInParent="true"
                android:text="岗位选择"
                android:textColor="@color/black" />
        </RelativeLayout>
        <com.example.dialoglistview.SearchView
            android:id="@+id/searchView"
            android:layout_width="match_parent"
            android:layout_height="wrap_content" />
        <TextView
            android:id="@+id/qx_tv"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginLeft="20dp"
            android:layout_marginTop="@dimen/dp_10"
            android:text="全选"
            android:textSize="16sp" />
        <androidx.recyclerview.widget.RecyclerView
            android:id="@+id/item_lv"
            android:layout_width="match_parent"
            android:layout_height="wrap_content" />
        <View
            android:layout_width="match_parent"
            android:layout_height="1dp"
            android:background="@color/grey" />
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="40dp"
            android:background="@color/transparent"
            android:gravity="center"
            android:orientation="horizontal">
            <LinearLayout
                android:id="@+id/diss_layout"
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="1"
                android:gravity="center">
                <TextView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:text="取消"
                    android:textColor="@color/sea_blue" />
            </LinearLayout>
            <View
                android:layout_width="1dp"
                android:layout_height="match_parent"
                android:background="@color/grey" />
            <LinearLayout
                android:id="@+id/ok_layout"
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="1"
                android:gravity="center">
                <TextView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:text="确定"
                    android:textColor="@color/sea_blue" />编程客栈;
            </LinearLayout>
        </LinearLayout>
    </LinearLayout>
</LinearLayout>

view_search_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="50dp"
    android:background="#ffffff"
    android:gravity="center"
    android:orientation="vertical">
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="35dp"
        android:layout_marginLeft="15dp"
        android:layout_marginRight="15dp"
        android:background="@drawable/item_search_layout"
        android:gravity="center_vertical"
        android:orientation="horizontal">
        <ImageButton
            android:id="@+id/imb_search_search"
            android:layout_width="20dp"
            android:layout_height="20dp"
            android:layout_marginLeft="15dp"
            android:background="#F0F0F0"
            android:scaleType="centerInside"
            android:src="@mipmap/im_search_back" />
        <EditText
            android:id="@+id/et_search_text"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginLeft="10dp"
            android:layout_marginRight="15dp"
            android:layout_weight="1"
            android:background="@null"
            android:hint="请输入搜索内容"
            android:lines="1"
            android:textSize="14sp" />
        <ImageButton
            android:id="@+id/imb_search_clear"
            android:layout_width="35dp"
            android:layout_height="35dp"
            android:layout_marginRight="20dp"
            android:background="#F0F0F0"
            android:padding="12.5dp"
            android:scaleType="centerInside"
            android:src="@mipmap/delet_zhaopian_1x"
            android:visibility="gone" />
    </LinearLayout>
</LinearLayout>

5.数据支持

// 创建数据列表
itemList = new ArrayList<>();
itemList.add(new ItemModel("医生", false));
itemList.add(new ItemModel("警察", false));
itemList.add(new ItemModel("护士", false));
itemList.add(new ItemModel("农民", false));
itemList.add(new ItemModel("工人", false));
itemList.add(new ItemModel("司机", false));

public class ItemModel {
    private String itemName;
    private boolean isSelected;
    public ItemModel(String itemName, boolean isSelected) {
        this.itemName = itemName;
        this.isSelected = isSelected;
    }
    public String getItemName() {
        return itemName;
    }
    public void setItemName(String itemName) {
        this.itemName = itemName;
    }
    public boolean isSelected() {
        return isSelected;
    }
    public void setSelected(boolean selected) {
        isSelected = selected;
    }
}

6.实际应用

    private void openSearchSelectDialog() {
        SerachSelectDialog.Builder alert = new SerachSelectDialog.Builder(this);
        alert.setListData(itemList);
        alert.setTitle("岗位选择");
        alert.setSelectedListiner(new SerachSelectDialog.Builder.OnSelectedListiner() {
            @Override
            public void onSelected(String info) {
                okTv.setText(info);
            }
        });
        SerachSelectDialog mDialog = alert.show();
        //设置Dialog 尺寸
        mDialog.setDialogWindowAttr(0.9, 0.9, this);
    }
