C#winform嵌套另一个exe程序
一共有二种方法，也不知道作者从哪里复制来的，先感谢原作者。

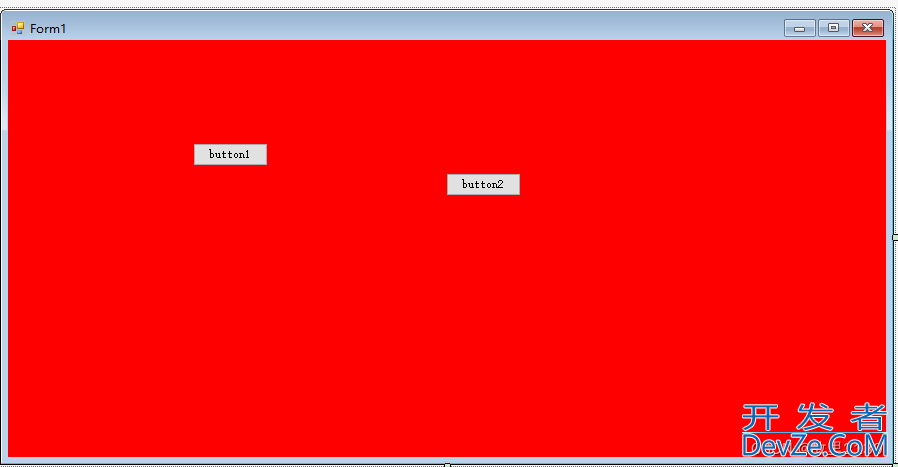

首先建立一个程序，加2个按钮，为了区分，界面修改成红色。
第一种

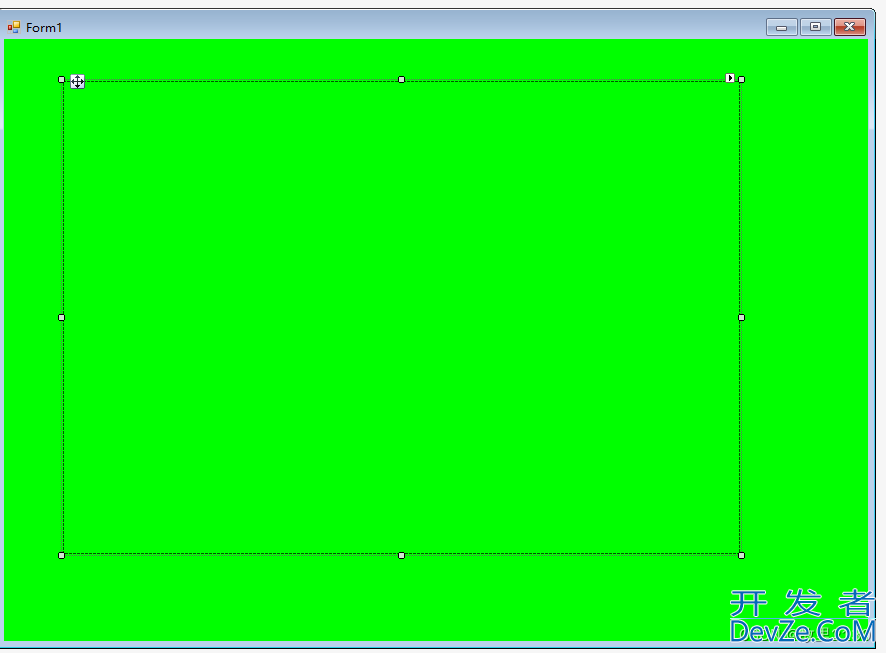

1.建立一个主程序，加一个panel1，为了区分背景是绿色

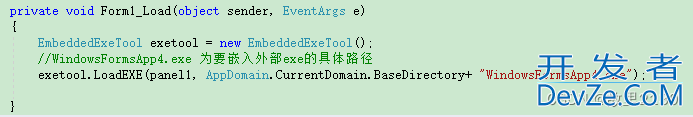

2.代码调用
3.所有代码
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Diagnostics;
using System.Drawing;
using System.Linq;
using System.Runtime.InteropServices;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace WindowsFormsApp1
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
/// <summary>
/// 嵌入外部exe
/// </summary>
public class EmbeddedExeTool
{
[DllImport("User32.dll", EntryPoint = "SetParent")]
private static extern IntPtr SetParent(IntPtr hWndChild, IntPtr hWndNewparent);
[DllImport("user32.dll", EntryPoint = "ShowWindow")]
private static extern int ShowWindow(IntPtr hwnd, int nCmdShow);
[DllImport("user32.dll", SetLastError = true)]
private static extern bool MoveWindow(IntPtr hwnd, int x, int y, int cx, int cy, bool repaint);
[DllImport("user32.dll")]
private static extern int GetWindowLong(IntPtr hWnd, int nIndex);
[DllImport("user32.dll")]
private static extern int SetWindowLong(IntPtr hWnd, int nIndex, int dwNewLong);
[DllImport("user32.dll", SetLastError = true)]
private static extern IntPtr FindWindow(string lpClassName, string lpWindowName);
IntPtr WindowHandle = IntPtr.Zero;
private const int WS_THICKFRAME = 262144;
private const int WS_BORDER = 8388608;
private const int GWL_STYLE = -16;
private const iandroidnt WS_CAPTION = 0xC00000;
private Process proApp = null;
private Control ContainerControl = null;
private const int WS_VISIBLE = 0x10000000;
[DllImport("user32.dll", EntryPoint = "SetWindowLong", CharSet = CharSet.Auto)]
private static extern IntPtr SetWindowLongPtr32(HandleRef hWnd, int nIndex, int dwNewLong);
[DllImport("user32.dll", EntryPoint = "SetWindowLongPtr", CharSet = CharSet.Auto)]
private static extern IntPtr SetWindowLongPtr64(HandleRef hWnd, int nIndex, int dwNewLong);
private IntPtr SetWindowLong(HandleRef hWnd, int nIndex, int dwNewLong)
{
if (IntPtr.Size == 4)
{
return SetWindowLongPtr32(hWnd, nIndex, dwNewLong);
}
return SetWindowLongPtr64(hWnd, nIndex, dwNewLong);
}
/// <summary>
/// 加载外部exe程序到程序容器中
/// </summary>
/// <param name="control">要显示exe的容器控件</param>
/// <param name="exepath">exe的完整绝对路径</param>
public void LoadEXE(Control control, string exepath)
{
ContainerControl = control;
control.SizeChanged += Control_SizeChanged;
ProcessStartInfo info = new ProcessStartInfo(exepath);
info.WindowStyle = ProcessWindowStyle.Minimized;
info.UseShellExecute = false;
info.CreateNoWindow = false;
proApp = Process.Start(info);
Application.Idle += Application_Idle;
EmbedProcess(proApp, control);
}
/// <summary>
/// 加载外部exe程序到程序容器中
/// </summary>
/// <param name="form">要显示exe的窗体</param>
/// <param name="exepath">exe的完整绝对路径</param>
public void LoadEXE(Form form, string exepath)
{
ContainerControl = form;
form.SizeChanged += Control_SizeChanged;
proApp = new Process();
proApp.StartInfo.UseShellExecute = false;
proApp.StartInfo.CreateNoWindow = false;
proApp.StartInfo.WindowStyle = ProcessWindowStyle.Minimized;
proApp.StartInfo.FileName = exepath;
proApp.StartInfo.Arguments = Process.GetCurrentProcess().Id.ToString();
proApp.Start();
Application.Idle += Application_Idle;
EmbedProcess(proApp, form);
}
/// <summary>
/// 确保应用程序嵌入此容器
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void Application_Idle(object sender, EventArgs e)
{
www.devze.com if (this.proApp == null || this.proApp.HasExited)
js {
this.proApp = null;
Application.Idle -= Application_Idle;
return;
}
if (proApp.MainWindowHandle == IntPtr.Zero) return;
Application.Idle -= Application_Idle;
EmbedProcess(proApp, ContainerControl);
}
/// <summary>
/// 将指定的程序嵌入指定的控件
/// </summary>
private void EmbedProcess(Process app, Control control)
{
// Get the main handle
if (app == null || app.MainWindowHandle == IntPtr.Zero || control == null) return;
try
{
// Put it into this form
SetParent(app.MainWindowHandle, control.Handle);
// Remove border and whatnot
SetWindowLong(new HandleRef(this, app.MainWindowHandle), GWL_STYLE, WS_VISIBLE);
ShowWindow(app.MainWindowHandle, (int)ProcessWindowStyle.Maximized);
MoveWindow(app.MainWindowHandle, 0, 0, control.Width, control.Height, true);
}
catch (Exception ex3)
{
Console.WriteLine(ex3.Message);
}
}
/// <summary>
/// 嵌入容器大小改变事件
/// </summary>
private void Control_SizeChanged(object sender, EventArgs e)
{
if (proApp == null)
{
return;
}
if (proApp.MainWindowHandle != IntPtr.Zero && ContainerControl != null)
{
MoveWindow(proApp.MainWindowHandle, 0, 0, ContainerControl.Width, ContainerControl.Height, true);
}
}
}
private void Form1_Load(object sender, EventArgs e)
{
EmbeddedExeTool exetool = new EmbeddedExeTool();
//WindowsFormsApp4.exe 为要嵌入外部exe的具体路径
exetool.LoadEXE(panel1, AppjsDomain.CurrentDomain.BaseDirectory+ "WindowsFormsApp4.exe");//debug下面的文件夹
}
}
}

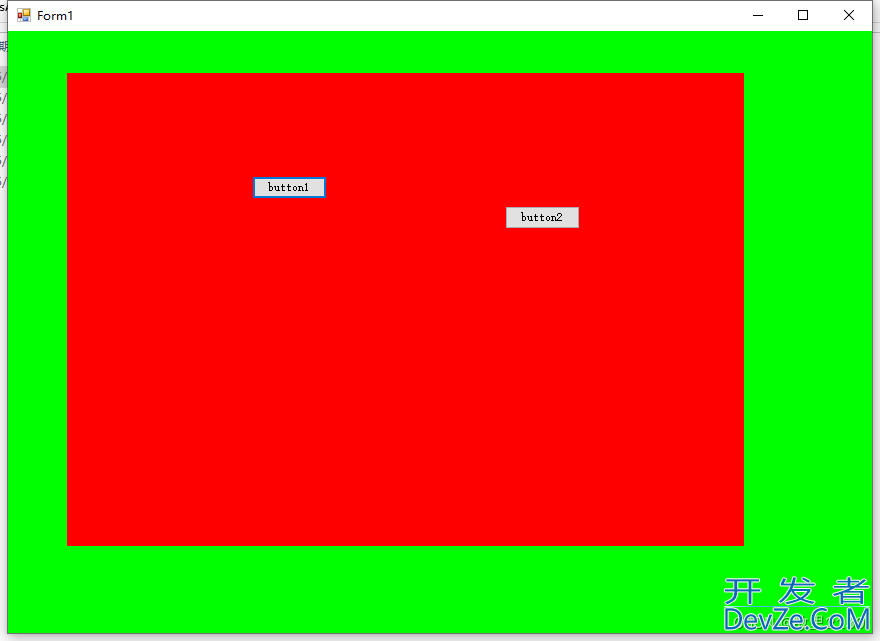

4.效果很好。
红配绿，绝配。
第二种
和第一种方式有点不一样。

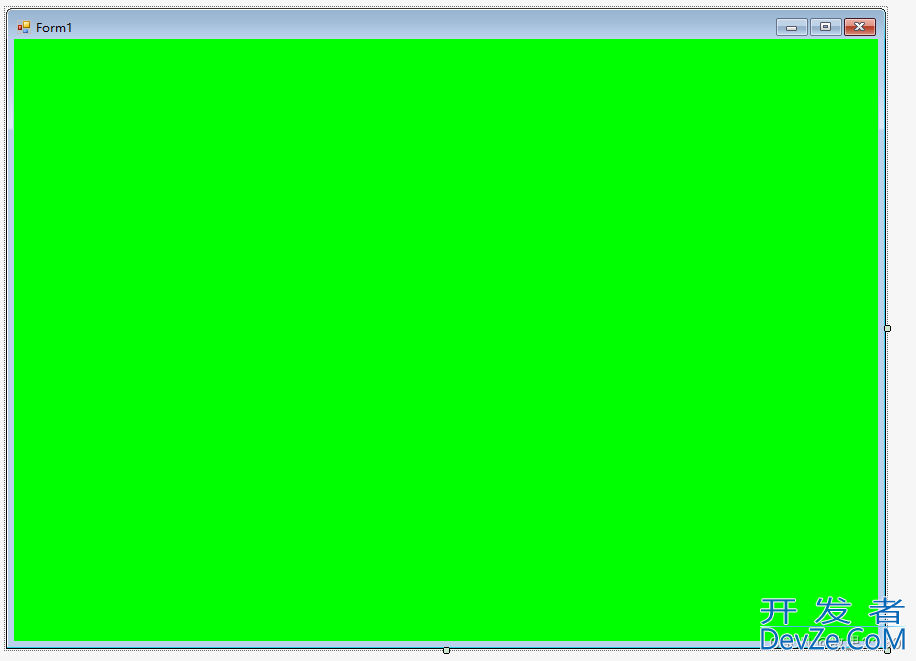

1.建立一个winform主程序，为了区分背景是绿色

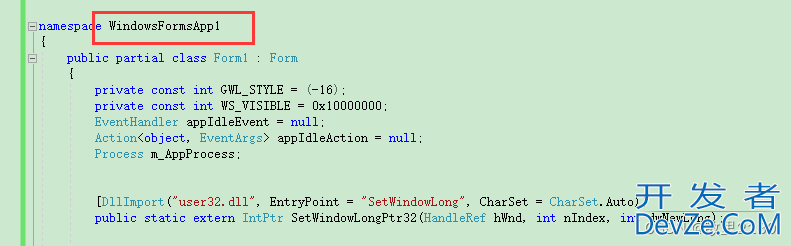

2.把代码直接复制进去，修改命名空间，再加上一个load事件即可
3.代码
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Diagnostics;
using System.Runtime.InteropServices;
namespace WindowsFormsApp1
{
public partial class Form1 : Form
{
private const int GWL_STYLE = (-16);
private const int WS_VISIBLE = 0x10000000;
EventHandler appIdleEvent = null;
Action<object, EventArgs> appIdleAction = null;
Process m_AppProcess;
[DllImport("user32.dll", EntryPoint = "SetWindowLong", CharSet = CharSet.Auto)]
public static extern IntPtr SetWindowLongPtr32(HandleRef hWnd, int nIndex, int dwNewLong);
[DllImport("user32.dll", EntryPoint = "SetWindowLongPtr", CharSet = CharSet.Auto)]
public static extern IntPtr SetWindowLongPtr64(HandleRef hWnd, int nIndex, int dwNewLong);
[DllImport("user32.dll", SetLastError = true)]
private static extern long SetParent(IntPtr hWndChild, IntPtr hWndNewParent);
//SetParent(IntPtr hWndChild, IntPtr hWndNewParent);这个方法很重要，就是将hWndChild指向开启exe的窗体嵌入到hWndNewParent窗体的某个控件上，或者是窗体本 身的容器
[DllImport("user32.dll", SetLastError = true)]
private static extern bool MoveWindow(IntPtr hwnd, int x, int y, int cx, int cy, bool repaint);
// MoveWindow(IntPtr hwnd, int x, int y, int cx, int cy, bool repaint);这个方法是windows的api,见名知意，是移动hwnd所指的窗体到指定的位置，并且指定是否需要重绘
public static IntPtr SetWindowLong(HandleRef hWnd, int nIndex, int dwNewLong)
{
if (IntPtr.Size == 4)
{
return SetWindowLongPtr32(hWnd, nIndex, dwNewLong);
}
return SetWindowLongPtr64(hWnd, nIndex, dwNewLong);
}
public Form1()
{
InitializeComponent();
appIdleAction = new Action<object, EventArgs>(Application_Idle);
appIdleEvent = new EventHandler(appIdleAction);
}
/// <summary>
/// 确保应用程序嵌入此容器，再次确认exe嵌入，如果不调用这个方法，程序不一定能嵌入外部exe
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
void Application_Idle(object sender, EventArgs e)
{
if (this.m_AppProcess == null || this.m_AppProcess.HasExited)
{
this.m_AppProcess = null;
Application.Idle -= appIdleEvent;//这一步一直不知道有什么用，但是不用这行代码程序有时候能嵌入有时候又不行
return;
}
if (m_AppProcess.MainWindowHandle == IntPtr.Zero) return;
Application.Idle -= appIdleEvent;
EmbedProcess(m_AppProcess, this);
}
/// <summary>
/// 将指定的程序嵌入指定的控件
/// </summary>
private void EmbedProcess(Process app, Control control)
{
// Get the main handle
if (app == null || app.MainWindowHandle == IntPtr.Zero || control == null) return;
try
{
// Put it into this form
SetParent(app.MainWindowHandle, control.Handle);
}
catch (Exception ex1)
{
Console.WriteLine(ex1.Message);
}
try
{
// Remove border and whatnot
SetWindowLong(new HandleRef(this, app.MainWindowHandle), GWL_STYLE, WS_VISIBLE);
}
catch (Exception ex2)
{
Console.WriteLine(ex2.Message);
}
try
{
MoveWindow(app.MainWindowHandle, 0, 0, control.Width, control.Height, true);
}
catch (Exception ex3)
{
Console.WriteLine(ex3.Message);
}
}

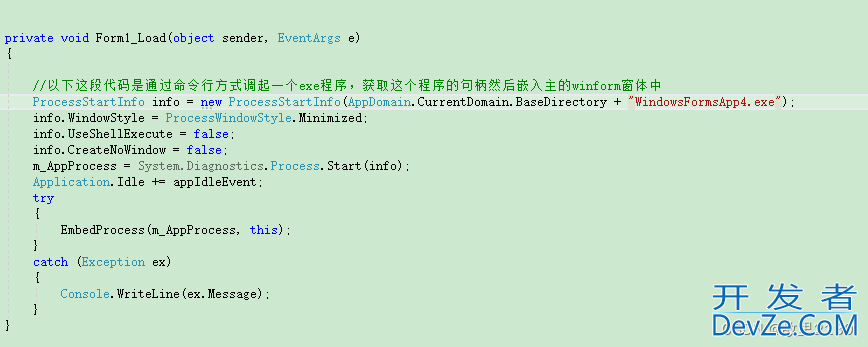

private void Form1_Load(object sender, EventArgs e)
{
//以下这段代码是通过命令行方式调起一个exe程序，获取这个程序的句柄然后嵌入主的winform窗体中
ProcessStartInfo info = new ProcessStartInfo(AppDomain.CurrentDomain.BaseDirectory + "WindowsFormsApp4.exe");//debug下面的文件夹
info.WindowStyle = ProcessWindowStyle.Minimized;
info.UseShellExecute = false;
info.CreateNoWindow = false;
m_AppProcess = System.Diagnostics.Process.Start(info);
Application.Idle += appIdleEvent;
try
{
EmbedProcess(m_AppProcess, this);
}
catch (Exception ex)
{
Console.WriteLine(ex.Message);
}
}
}
}
4.效果
可见，第一种和第二种的效果有所区别的。
拓展。
WPF签入winform

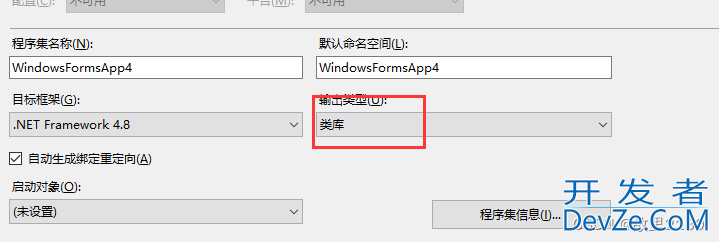

1.依然用上面的winform程序，把输出类型改成类库

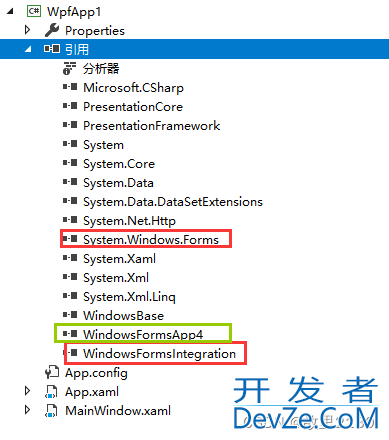

2.建立一个WPF程序，引用System.Windows.Forms和WindowsFormsIntegration，红色。绿色是步骤1生产的dll
3.在wpf中增加WindowsFormsHost控件
4.cs后台代码
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using WindowsFormsApp4;
namespace WpfApp1
{
/// <summary>
/// MainWindow.xaml 的交互逻辑
/// </summary>
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
Form1 mainform = new Form1();
mainfwww.devze.comorm.TopLevel = false;
winform.Child = mainform;
}
}
}

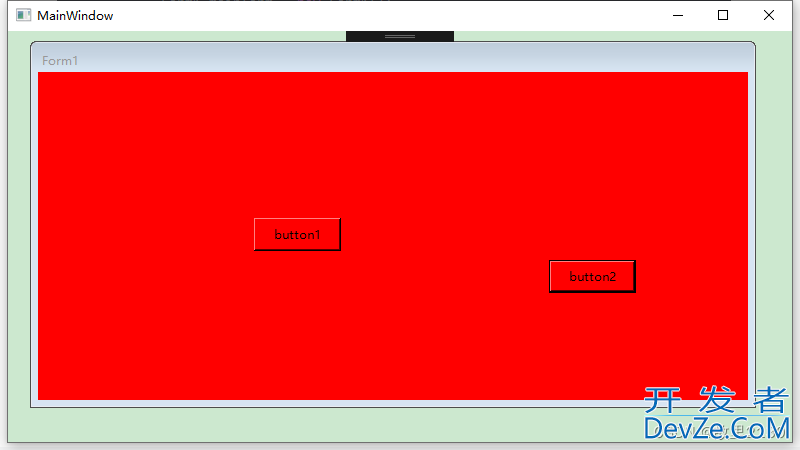

5.效果
总结
以上为个人经验，希望能给大家一个参考，也希望大家多多支持我们。
