C#使用ZXing实现二维码和条形码的生成

开发者 https://www.devze.com 2023-11-19 11:53 出处:网络 作者: SongYuLong的博客
目录安装ZXing使用ZXing生成条形码生成二维码生成带Logo的二维码识别二维码、条形码安装ZXing
目录
  • 安装ZXing
  • 使用ZXing
  • 生成条形码
  • 生成二维码
  • 生成带Logo的二维码
  • 识别二维码、条形码

安装ZXing

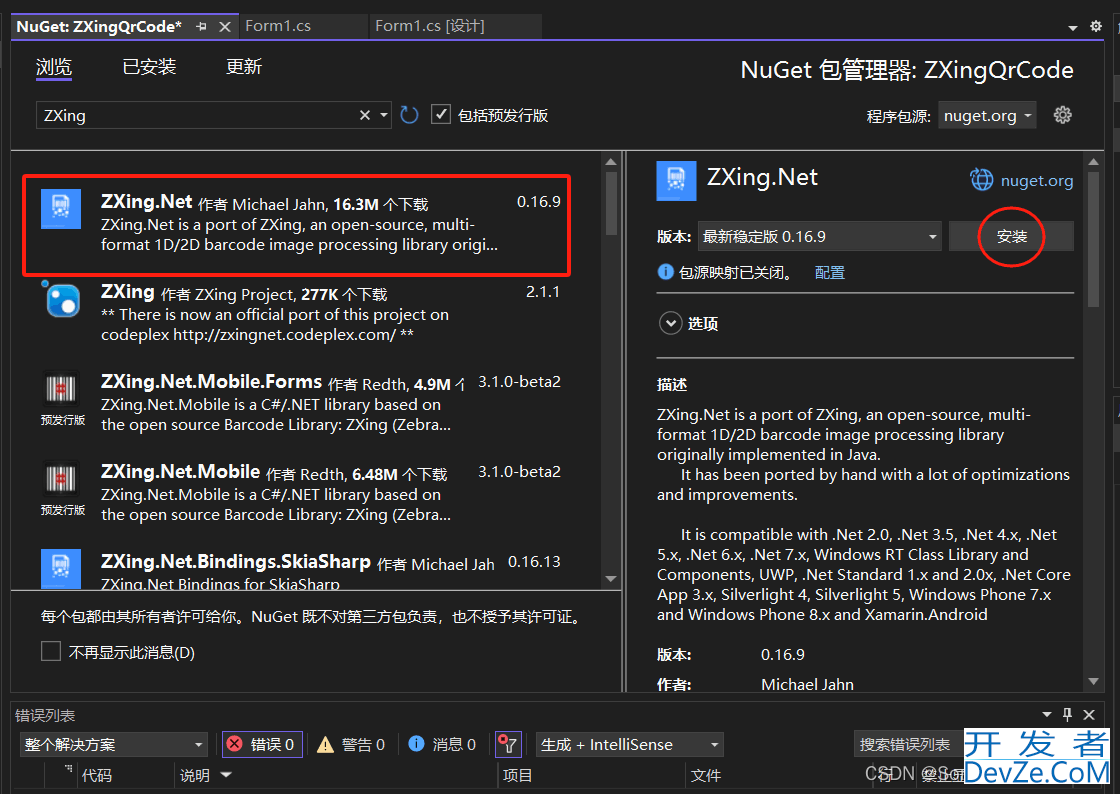

NuGet搜索ZXing安装ZXing.Net包

C#使用ZXing实现二维码和条形码的生成

使用ZXing

using ZXing;
using ZXing.Common;
using ZXing.QrCode;
using ZXing.QrCode.Internal;

生成条形码

/// <summary>
/// 生成条形码
/// </summary>
/// <param name="text"></param>
static void GenerateBarCode(string text)
{
    BarcodeWriter writer = new BarcodeWriter();
  编程客栈  writer.Format = BarcodeFormat.CODE_128;
    EncodingOptions options = new EncodingOptions()
    {
        Width = 150,
        Height = 50,
        Margin = 2,
    };

    writer.Options = options;
    Bitmap map = writer.Write(text);
    string filename = @"D:\2.png";
    map.Save(filename, ImagphpeFormat.Png);
    map.Dispose();
}

生成二维码

 /// <summary>
 /// 生成二维码
 /// </summary>
 /// <param name="text"></param>
 static void GenerateQRCode(string text)
 {
     BarcodeWriter writer = new BarcodeWriter();
     writer.Format = BarcodeFormat.QR_CODE;
     QrCodeEncodingOptions optionswww.devze.com = new QrCodeEncodingOptions();
     options.DisableECI = true;
     // 设置内容字符编码
     options.CharacterSet = "UTF-8";
     // 设置二维码的宽度高度
     options.Wphpidth = 200;
     options.Height = 200;
     // 设置二维码的边距,单位不是固定像素
     options.Margin = 1;
     writer.Options = options;

     Bitmap map = writer.Write(text);
     string filename = @"D:\1.png";
     map.Save(filename, ImageFormat.Png);
     map.Dispose();

 }

生成带Logo的二维码

/// <summary>
/// 生成带Logo图片的二维码
/// </summary>
/// <param name="text"></param>
static void GenerateQRCodeWithLoge(string text)
{
    // Logo 图片
    Bitmap logo = new Bitmap(@"D:\logo.png");
    // 构造二维码写码器
    MultiFormatWriter writer = new MultiFormatWriter();
    Dictionary<EncodeHintType, object> hint = new Dictionary<EncodeHintType, object>();
    hint.Add(EncodeHintType.CHARACTER_SET, "UTF-8");
    hint.Add(EncodeHintType.ERROR_CORRECTION, ErrorCorrectionLevel.H);

    // 生成二维码
    BitMatrix bm = writer.encode(text, BarcodeFormat.QR_pythonCODE, 300, 300, hint);
    BarcodeWriter barcodeWriter = new BarcodeWriter();
    Bitmap map = barcodeWriter.Write(bm);

    // 获取二维码实际尺寸(去掉二维码两边空白后的实际尺寸)
    int[] rectangle = bm.getEnclosingRectangle();

    // 计算插入logo图片的大小位置
    int middleW = Math.Min((int)(rectangle[2] / 3.5), logo.Width);
    int middleH = Math.Min((int)(rectangle[3] / 3.5), logo.Height);
    int middleL = (map.Width - middleW) / 2;
    int middleT = (map.Width - middleH) / 2;

    // 将img转换成bmp格式,否则后面无法创建Graphics对象
    Bitmap bmpimg = new Bitmap(map.Width, map.Height, PixelFormat.Format32bppArgb);
    using (Graphics g = Graphics.FromImage(bmpimg))
    {
        g.InterpolationMode = System.Drawing.Drawing2D.InterpolationMode.HighQualityBicubic;
        g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;
        g.CompositingQuality = System.Drawing.Drawing2D.CompositingQuality.HighQuality;
        g.DrawImage(map, 0, 0);
    }

    // 将二维码插入图片
    Graphics myGraphics = Graphics.FromImage(bmpimg);
    // 白底
    myGraphics.FillRectangle(Brushes.White, middleL, middleT, middleW, middleH);
    myGraphics.DrawImage(logo, middleL, middleT, middleW, middleH);

    // 保存生成图片
    bmpimg.Save(@"D:\logo_qrcode.png", ImageFormat.Png);

}

识别二维码、条形码

/// <summary>
/// 识别二维码、条形码
/// </summary>
/// <param name="filename"></param>
/// <returns></returns>
static string ReadBarCode(string filename)
{
    BarcodeReader reader = new BarcodeReader();
    reader.Options.CharacterSet = "UTF-8";
    Bitmap map = new Bitmap(filename);
    Result result = reader.Decode(map);
    map.Dispose();

    return result == null ? "" : result.Text;
}

到此这篇关于C#使用ZXing实现二维码和条形码的生成的文章就介绍到这了,更多相关C# ZXing生成二维码条形码内容请搜索编程客栈(www.devze.com)以前的文章或继续浏览下面的相关文章希望大家以后多多支持编程客栈(www.devze.com)!
