PyQt5+QtChart实现绘制曲线图

目录

• QSplineSeries
• 实现代码
• 效果图

QSplineSeries

QSplineSeries类将数据序列显示为曲线图。核心代码:

spline = QSplineSeries()

spline.append(0, 23)

spline.append(1, 56)

…

chart.addSeries(lineSeries)

常用方法

• setPointsVisible(True) ：设置数据点显示状态
• setPointLabelsVisible(True)：设置数据点标签显示状态
• setPointLabelsFormat(“(@xPoint, @yPoint)”)：设置数据点标签格式
• setPointLabelsFont(QFont(None, 8)) ：设置数据点标签字体
• setPointLabelsColor(QColor(255, 0,0)) ：设置数据点标签颜色

实现代码

import random
import sys

from PyQt5.QtGui import *
from PyQt5.QtCore import *
from PyQt5.QtWidgets import *
from PyQt5.QtCore import Qt
from PyQt5.QtChart import QSplineSeries, QLineSeries, QChart, QChartView, QValueAxis


class MySpljavascriptineWindow(QWidget):
    def __init__(se开发者_C培训lf, parent=None):
        super(MySplineWindow, self).__init__(parent)
        self.setWindowTitle("曲线图表演示")

        chart = QChart()
        chart.setTitle(php"曲线图表")
        chart.setAnjavascriptimationDuration(1500)
        chart.setAnimationOptions(QChart.SeriesAnimations)
        chart.setAnimationEasingCurve(QEasingCurve.OutCirc)
        chart.legend().show()

        spline = QSplineSeries()
        for value in range(1, 50):
            spline.append(value, round(random.random()*100))


        spline.setName("随机噪声")
        # spline.setColor(Qt.blue)
        spline.setPointsVisible(True)www.devze.com
        spline.setPointLabelsVisible(True)
        spline.setPointLabelsFormat("(@xPoint, @yPoint)")
        spline.setPointLabelsFont(QFont(None, 6))
        spline.setPointLabelsColor(Qt.darkBlue)

        chart.addSeries(spline)
        chart.createDefaultAxes()

        axis_x = QValueAxis()
        axis_x.setLabelFormat("%d")
        chart.addAxis(axis_x, Qt.AlignBottom)
        spline.attachAxis(axis_x)

        chartView = QChartView()
        chartView.setChart(chart)
        chartView.setRenderHint(QPainter.Antialiasing)

        vbox = QVBoxLayout()
        vbox.addwidget(chartView)
 javascript       self.setLayout(vbox)


if __name__ == "__main__":
    app = QApplication(sys.argv)
    win = MySplineWindow()
    win.show()
    sys.exit(app.exec_())

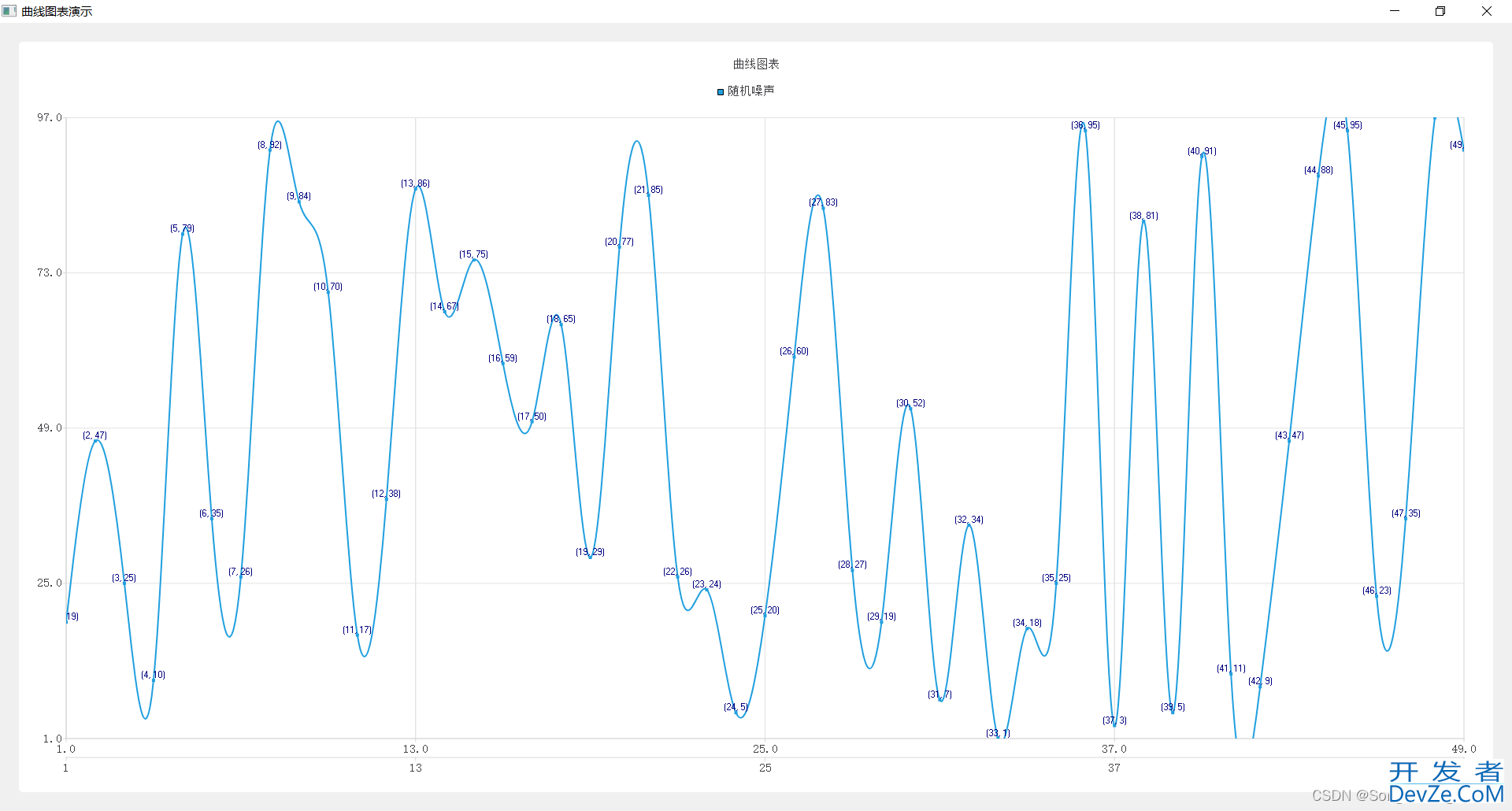

效果图

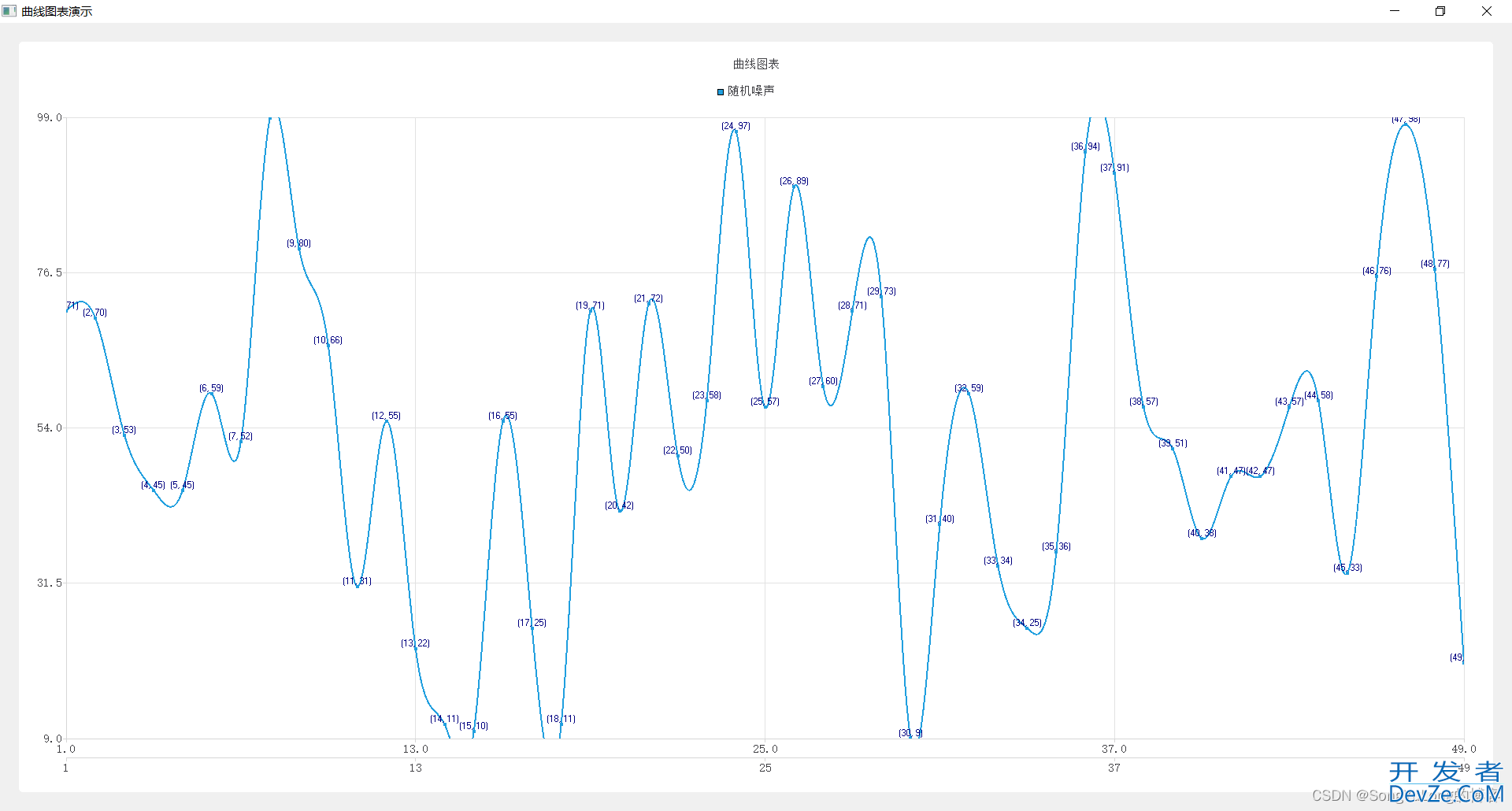

增加抗锯齿：chartView.setRenderHint(QPainter.Antialiasing)
