目录
- 背景
- 探索-源码
- 进一步思考
背景
SpringBoot bean 加载顺序如何查看，想看加载了哪些bean， 这些bean的加载顺序是什么？
实际加载顺序不受控制，但会有一些大的原则：
1、按照字母顺序加载（同一文件夹下按照字母数序；不同文件夹下，先按照文件夹命名的字母顺序加载）
2、不同的bean声明方式不同的加载时机，顺序总结：@ComponentScan > @Import > @Bean 这里的ComponentScan指@ComponentScan及其子注解，Bean指的是@configuration + @bean 同时需要注意的是： （1）Component及其子注解申明的bea开发者_Go学习n是按照字母顺序加载的 （2）@configuration + @bean是按照定义的顺序依次加载的 （3）@import的顺序，就是bean的加载顺序 （4）在XML中，通过<bean id="">方式声明的bean也是按照代码的编写顺序依次加载的 （5）同一类中加载顺序：Constructor >> @Autowired >> @PostConstruct >> @Bean （6）同一类中加载顺序：静态变量 / 静态代码块 >> 构造代码块 >> 构造方法（需要特别注意的是静态代码块的执行并不是优先所有的bean加载，只是在同一个类中，静态代码块优先加载）探索-源码
入口：
public class TestApplication {
public static void main(String[] args) {
try {
SpringApplication.run(TestApplication.class, args);
LOGGER.info("SpringBoot Application Start!!!");
} catch (Throwable e) {
throw e;
}
}
}
其中 里面的run方法为：
public ConfigurableApplicationContext run(String... args) {
long startTime = System.nanoTime();
DefaultBootstrapContext bootstrapContext = createBootstrapContext();
ConfigurableApplicationContext context = null;
configureHeadlessProperty();
SpringApplicationRunListeners listeners = getRunListeners(args);
listeners.starting(bootstrapContext, this.mainApplicationClass);
try {
ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
ConfigurableEnjavascriptvironment environment = prepareEnvironment(listeners, bootstrapContext, applicationArguments);
configureIgnoreBeanInfo(environment);
Banner printedBanner = printBanner(environment);
context = createApplicationContext();
context.setApplicationStartup(this.applicationStartup);
prepareContext(bootstrapContext, context, environment, listeners, applicationArguments, printedBanner);
**refreshContext**(context);
afterRefresh(context, applicationArguments);
Duration timeTakenToStartup = Duration.ofNanos(System.nanoTime() - startTime);
if (this.logStartupInfo) {
new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), timeTakenToStartup);
}
listeners.started(context, timeTakenToStartup);
callRunners(context, applicationArguments);
}
catch (Throwable ex) {
handleRunFailure(context, ex, listeners);
throw new IllegalStateException(ex);
}
try {
Duration timeTakenToReady = Duration.ofNanos(System.nanoTime() - startTime);
listeners.ready(context, timeTakenToReady);
}
catch (Throwable ex) {
handleRunFailure(context, ex, null);
throw new IllegalStateException(ex);
}
return context;
}
refreshContext(context);
private void refreshContext(ConfigurableApplicationContext context) {
if (this.registerShutdownHook) {
shutdownHook.registerApplicationContext(context);
}
**refresh**(context);
}
AbstractApplicationContext#refresh
然后看倒数第二行：finishBeanFactoryInitialization(beanFactory);
org.springframework.context.support.AbstractApplicationContext#refresh
@Override
public void refresh() throws BeansException, IllegalStateException {
synchronized (this.startupShutdownMonitor) {
StartupStep contextRefresh = this.applicationStartup.start("spring.context.refresh");
// Prepare this context for refreshing.
prepareRefresh();
// Tell the subclass to refresh the internal bean factory.
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// Prepare the bean factory for use in this context.
prepareBeanFactory(beanFactory);
// Allows post-processing of the bean factory in context subclasses.
postProcessBeanFactory(beanFactory);
StartupStep beanPostProcess = this.applicationStartup.start("spring.context.beans.post-process");
// Invoke factory processors registered as beans in the context.
invokeBeanFactoryPostProcessors(beanFactory);
// Register bean processors that intercept bean creation.
registerBeanPostProcessors(beanFactory);
beanPostProcess.end();
// Initialize message source for this context.
initMessageSource();
// Initialize event multicaster for this context.
initApplicationEventMulticaster();
// Initialize other special beans in specific context subclasses.
onRefresh();
// Check for listener beans and register them.
registerListeners();
// Instantiate all remaining (non-lazy-init) singletons.
**finishBeanFactoryInitialization(beanFactory);**
// Last step: publish corresponding event.
finishRefresh();
}
finishBeanFactoryInitialization(beanFactory)
然后看最后一行：beanFactory.preInstantiateSingletons();
protected void finishBeanF编程客栈actoryInitialization(ConfigurableListableBeanFactory beanFactory) {
// Initialize conversion service for this context.
if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
beanFactory.setConversionService(
beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
}
// Register a default embedded value resolver if no BeanFactoryPostProcessor
// (such as a PropertySourcesPlaceholderConfigurer bean) registered any before:
// at this point, primarily for resolution in annotation attribute values.
if (!beanFactory.hasEmbeddedValueResolver()) {
beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
}
// Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
for (String weaverAwareName : weaverAwareNames) {
getBean(weaverAwareName);
}
// Stop using the temporary ClassLoader for type matching.
beanFactory.setTempClassLoader(null);
// Allow for caching all bean definition metadata, not expecting further changes.
beanFactory.freezeConfiguration();
// Instantiate all remaining (non-lazy-init) singletons.
**beanFactory.preInstantiateSingletons();**
}
beanFactory.preInstantiateSinjavascriptgletons()

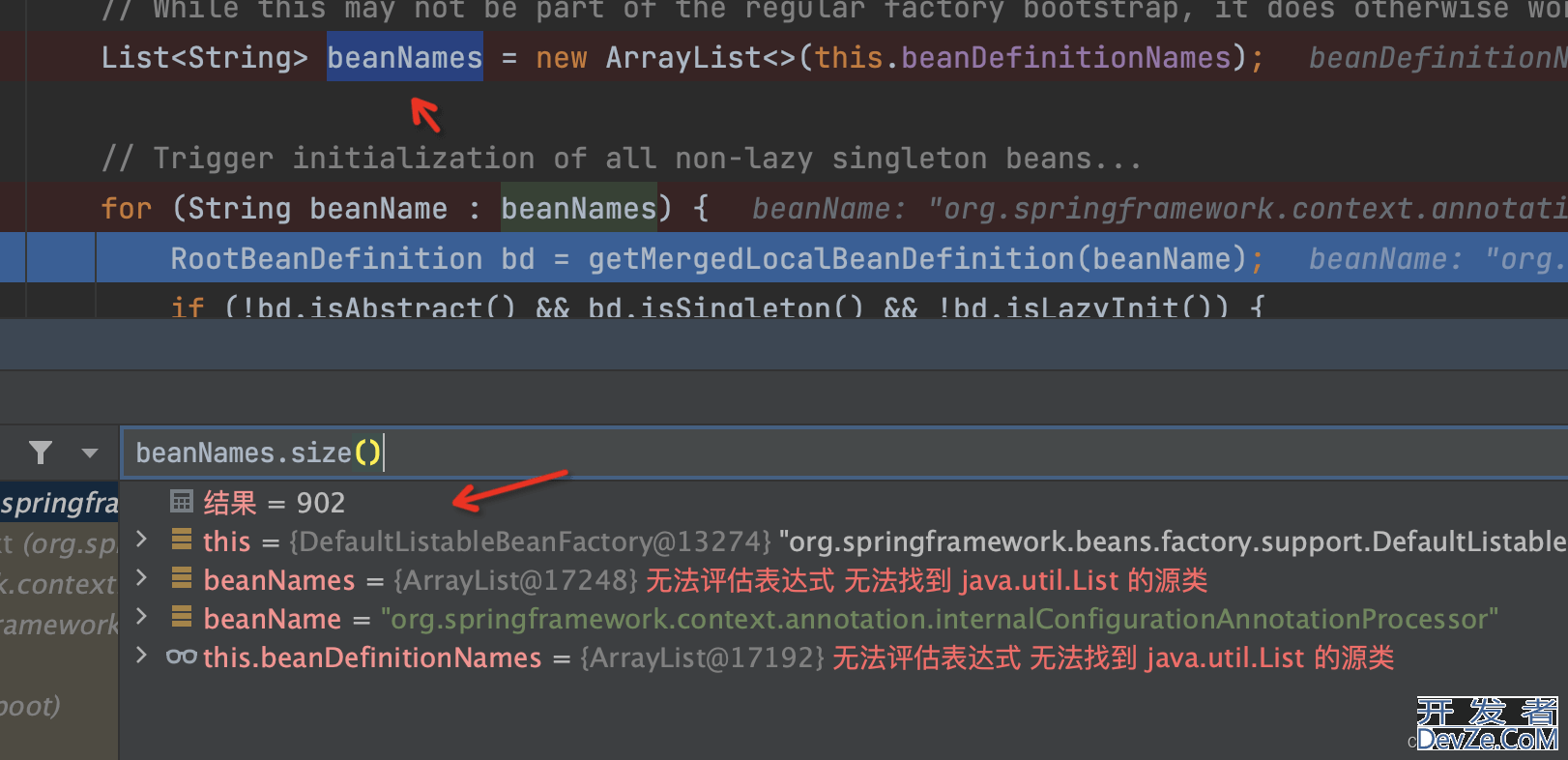

在这里会对 beanDefinitionNames 进行遍历，然后进行 bean的实例化 和 组装
因此这里的 beanDefinitionNames 这个列表决定了bean 的 注册顺序。
org.springframework.beans.factory.support.DefaultListableBeanFactory#preInstantiateSingletons
@Override
public void preInstantiateSingletons() throws BeansException {
if (logger.isTraceEnabled()) {
logger.trace("Pre-instantiating singletons in " + this);
}
// Iterate over a copy to allow for init methods which in turn register new bean definitions.
// While this may not be part of the regular factory bootstrap, it does otherwise work fine.
**List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);**
// Trigger initialization of all non-lazy singleton beans...
for (String beanName : beanNames) {
RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
if (isFactoryBean(beanName)) {
Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
if (bean instanceof FactoryBean) {
FactoryBean<?> factory = (FactoryBean<?>) bean;
boolean isEagerInit;
if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
isEagerInit = AccessController.doPrivileged(
(PrivilegedAction<Boolean>) ((SmartFactoryBean<?>) factory)::isEagerInit,
getAccessControlContext());
}
else {
isEagerInit = (factory instanceof SmartFactoryBean &&
((SmartFactoryBean<?>) factory).isEagerInit());
}
if (isEagerInit) {
getBean(beanName);
}
}
}
else {
getBean(beanName);
}
}
}
// Trigger post-initialization callback for all applicable beans...
for (String beanName : beanNames) {
Object singletonInstance = getSingleton(beanName);
if (singletonInstance instanceof SmartInitializingSingleton) {
StartupStep smartInitialize = this.getApplicationStartup().start("spring.beans.sma编程客栈rt-initialize")
.tag("beanName", beanName);
SmartInitializingSi编程客栈ngleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
smartSingleton.afterSingletonsInstantiated();
return null;
}, getAccessControlContext());
}
else {
smartSingleton.afterSingletonsInstantiated();
}
smartInitialize.end();
}
}
}

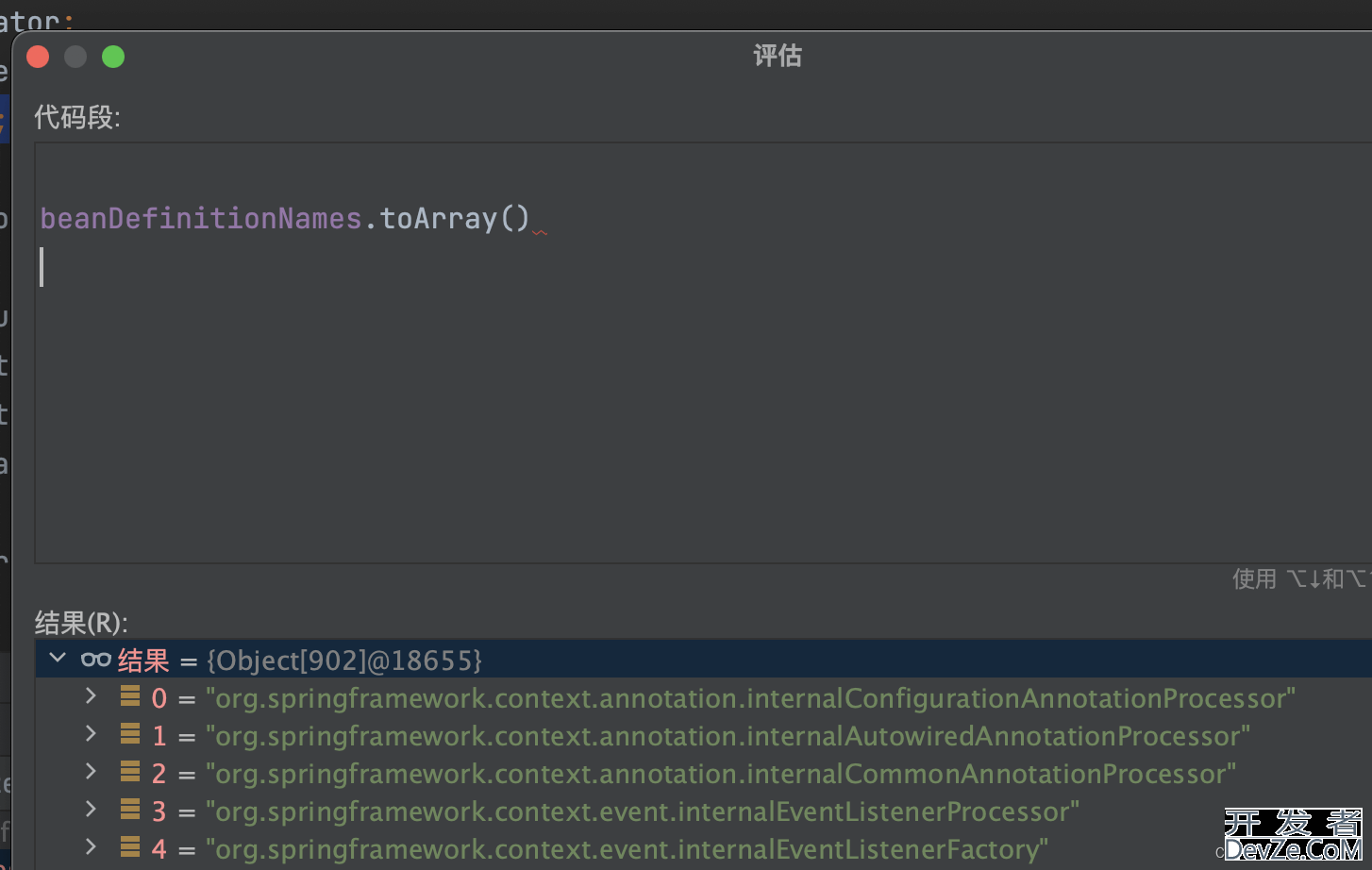

如果不能看，像图中一样，不能找到Java.util.list这个类，可以使用下面这个方式，亲测有效：
beanDefinitionNames.toArray()
后面的bean就不展示顺序了。感兴趣的读者可以看自己springBoot项目的。
进一步思考
beanDefinitionNames 列表如何来的呢？
答案是 ConfigurationClassPostProcessor 通过扫描 代码+注解生成的，讲bean 扫描解析成 beanDefinition, 同时把 bean定义，beanDefinition，注册到 BeanDefinitionRegistry， 故有了beanDefinitionNames list。
