SQL

直接修改带注释那行的表名称即可。

SELECT
表名=case when a.colorder=1 then d.name else '' end,
表说明=case when a.colorder=1 then isnull(f.value,'') else '' end,
字段序号=a.colorder,
字段名=a.name,
标识=case when COLUMNPROPERTY(a.id,a.name,'IsIdentity')=1 then '√'else '' end,
主键=case when exists(SELECT 1 FROM sysobjects where xtype='PK' and name in (
  SELECT name FROM sysindexes WHERE indid in(
   SELECT indid FROM sysindexkeys WHERE id = a.id AND colid=a.colid
   ))) then '√' else '' end,
类型=b.name,
占用字节数=a.length,
长度=COLUMNPROPERTY(a.id,a.name,'PRECISION'),
小数位数=isnull(COLUMNPROPERTY(a.id,a.name,'Scale'),0),
允许空=case when a.isnullable=1 then '√'else '' end,
默认值=isnull(e.text,''),
字段说明=isnull(g.[value],'')
FROM syscolumns a
left join systypes b on a.xtype=b.xusertype
inner join sysobjects d on a.id=d.id and d.xtype='U' and d.name<>'dtproperties'
left join syscomments e on a.cdefault=e.id
left join sys.extended_properties g on a.id=g.major_id and a.colid=g.minor_id
left join sys.extended_properties f on d.id=f.major_id and f.minor_id =0
where d.name='girlSix' --如果只查询指定表,加上此条件
order by a.id,a.colorder

测试sql

CREATE TABLE [dbo].[girlSix] (
[id] varchar(32) NOT NULL DEFAULT (replace(newid(),'-','')) ,
[createDate] datetime NOT NULL DEFAULT (getdate()) ,
[nickName] varchar(30) NOT NULL ,
[introduce] nvarchar(200) NOT NULL
)


GO
IF ((SELECT COUNT(*) from fn_listextendedproperty('MS_Description',
'SCHEMA', N'dbo',
'TABLE', N'girlSix',
'COLUMN', N'nickName')) > 0)
EXEC sp_updateextendedproperty @name = N'MS_Description', @value = N'名字'
, @level0type = 'SCHEMA', @level0name = N'dbo'
, @level1type = 'TABLE', @level1name = N'gi编程客栈rlSix'
, @level2type = 'COLUMN', @level2name = N'nickName'
ELSE
EXEC sp_addextendedpjavascriptroperty @name = N'MS_Description', @value = N'名字'
, @level0type = 'SCHEMA', @level0name = N'dbopython'
, @level1type = 'TABLE', @level1name = N'girlSix'
, @level2type = 'COLUMN', @level2name = N'nickName'
GO
IF ((SELECT COUNT(*) from fn_listextendedproperty('MS_Description',
'SCHEMA', N'dbo',
'TABLE', N'girlSix',
'COLUMN', N'introduce')) > 0)
EXEC sp_updateextendedproperty @name = N'MS_Description', @value = N'介绍'
, @level0type = 'SCHEMA', @level0name = N'dbo'
, @level1type = 'TABLE', @level1name = N'girlSix'
, @level2type = 'COLUMN', @level2name = N'introduce'
ELSE
EXEC sp_addextendedproperty @name = N'MS_Description', @value = N'介绍'
, @level0type = 'SCHEMA', @level0name = N'dbo'
, @level1type = 'TABLE', @level1name = N'girlSix'
, @level2type = 'COLUMN', @level2name = N'introduce'
GO

-- ----------------------------
-- Records of girlSix
-- ----------------------------
INSERT INTO [dbo].[girlSix] ([id], [createDate], [nickName], [introduce]) VALUES (N'04e3d962adcb4a5b8fefaf8b46995e85', N'2020-05-27 09编程客栈:05:52.000', N'董新颖', N'郭老师关门弟子之一。');
GO
INSERT INTO [dbo].[girlSix] ([id], [createDate], [nickName], [introduce]) VALUES (N'568fc305930347d3bec1ddd08c71ad29', N'2020-05-27 09:01:09.000', N'王笑涵', N'北方有佳人，绝世而独立。');
GO
INSERT INTO [dbo].[girlSix] ([id], [createDate], [nickName], [introduce]) VALUES (N'972ec358089042e0bf24fd9efca47bde', N'2020-05-27 08:59:49.000', N'牛龙珠', N'笑若桃花三月开，清风徐徐醉颜来。');
GO
INSERT INTO [dbo].[girlSix] ([id], [createDate], [nickName], [introduce]) VALUES (N'BDFFC6A36A53408281EB8CA242C0E7A3', N'2020-05-27 08:42:31.000', N'闫春娜', N'珠缨旋转星宿摇,花蔓抖擞龙蛇动。');
GO
INSERT INTO [dbo].[girlSix] ([id], [createDate], [nickName], [introduce]) VALUES (N'efb0ca854dac456b9d8c42d4c4b1bce0', N'2020-05-27 09:03:30.000', N'刘梓佳', N'明眸善睐，辅靥承权，瑰姿艳逸，怡静体闲，端的是好一个花王，富贵的牡丹。');
GO
INSERT INTO [dbo].[girlSix] ([id], [createDate], [nickName], [introduce]) VALUES (N'f839343b980e45caafaa9d2c9797294b', N'2020-05-27 09:04:53.000', N'魏慧娟', N'脉脉眼中波，盈盈花盛处。');
GO

-- ----------------------------
-- Indexes structure for table girlSix
-- ----------------------------

-- ----------------------------
-- Primary Key structure for table [dbo].[girlSix]
-- -----------------python-----------
ALTER TABLE [dbo].[gir开发者_mssql2008lSix] ADD PRIMARY KEY ([id])
GO

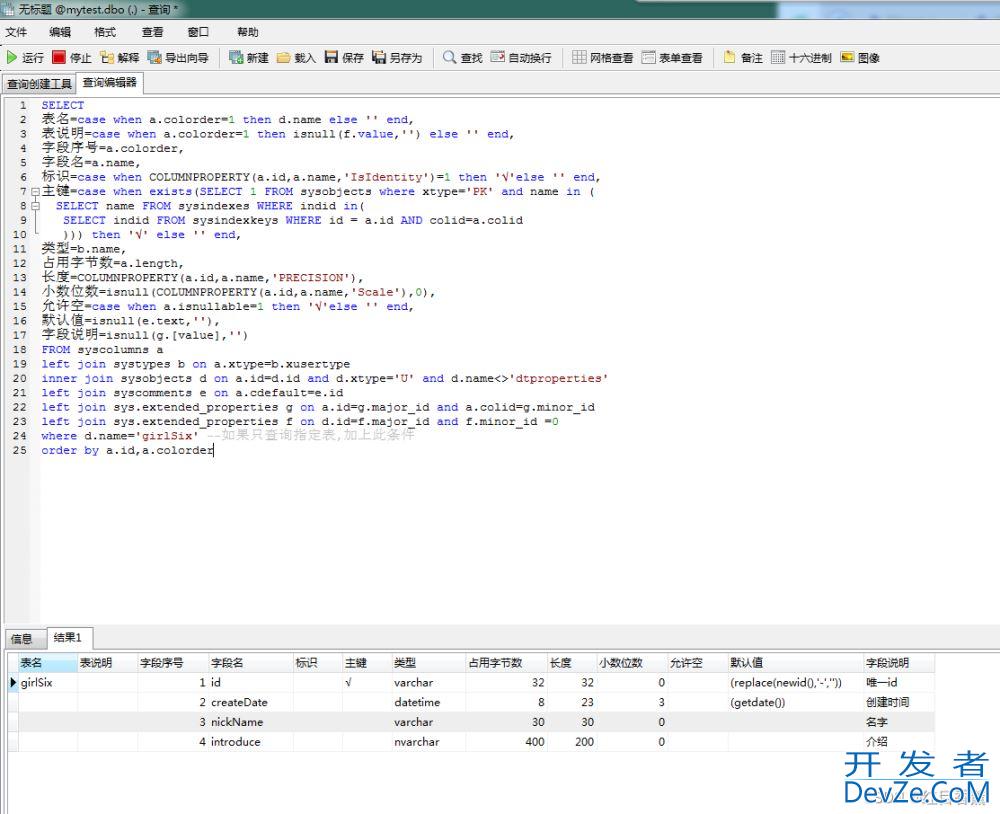

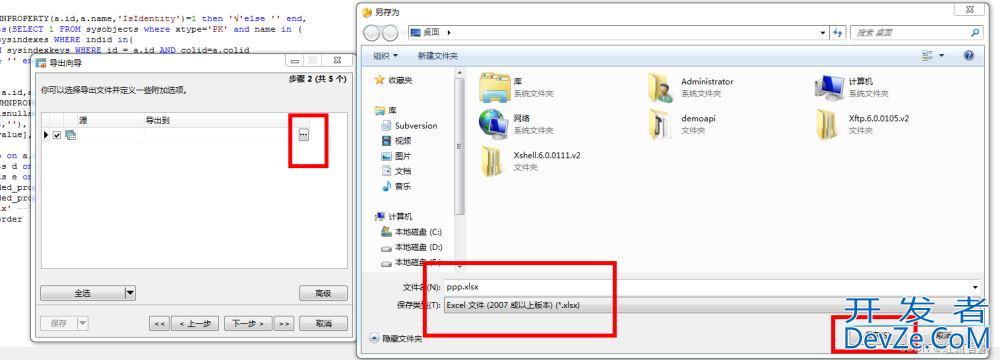

执行效果
